Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 12/12/22 INST99-5848CH
I N S TA L L AT I O N I N S T R U C T I O N S
99-5848CH
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Included interface for climate and steering wheel functions
• Integrated hazard button and passenger airbag indicator
• Painted Charcoal

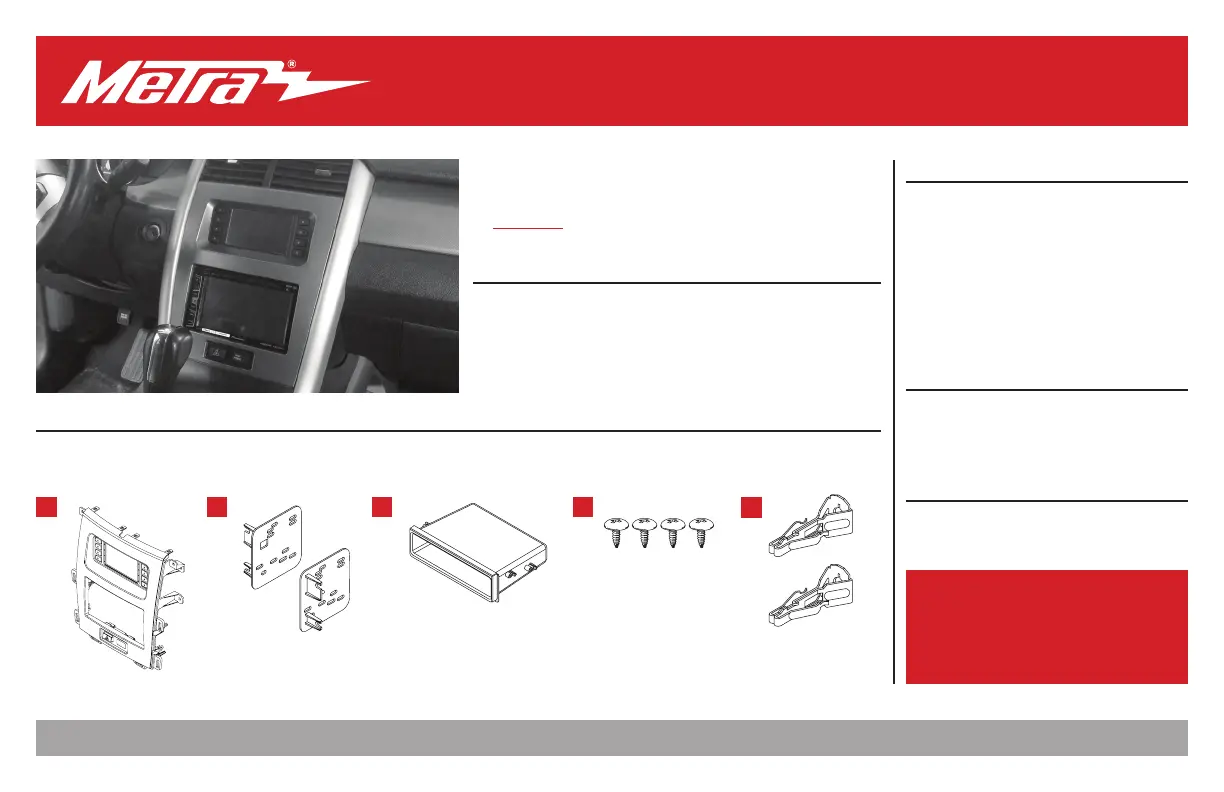

KIT COMPONENTS
• A) Radio/Display trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws for pocket • E) (2) Panel Clips
• F) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” Socket wrench
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
Axxess Interface Installation ............................5-14
Final Assembly .......................................................9
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into touchscreen
Antenna Adapter: Included
A B C D E
Ford Edge
(with 4.2” screen)
2011-2014 (†)
(†) Excluding SEL trim
Visit for more detailed information about the product and up-to-date vehicle
MetraOnline.com
specic applications
Patent # 10,579,232
2386.257.1187
|
MetraOnline.com

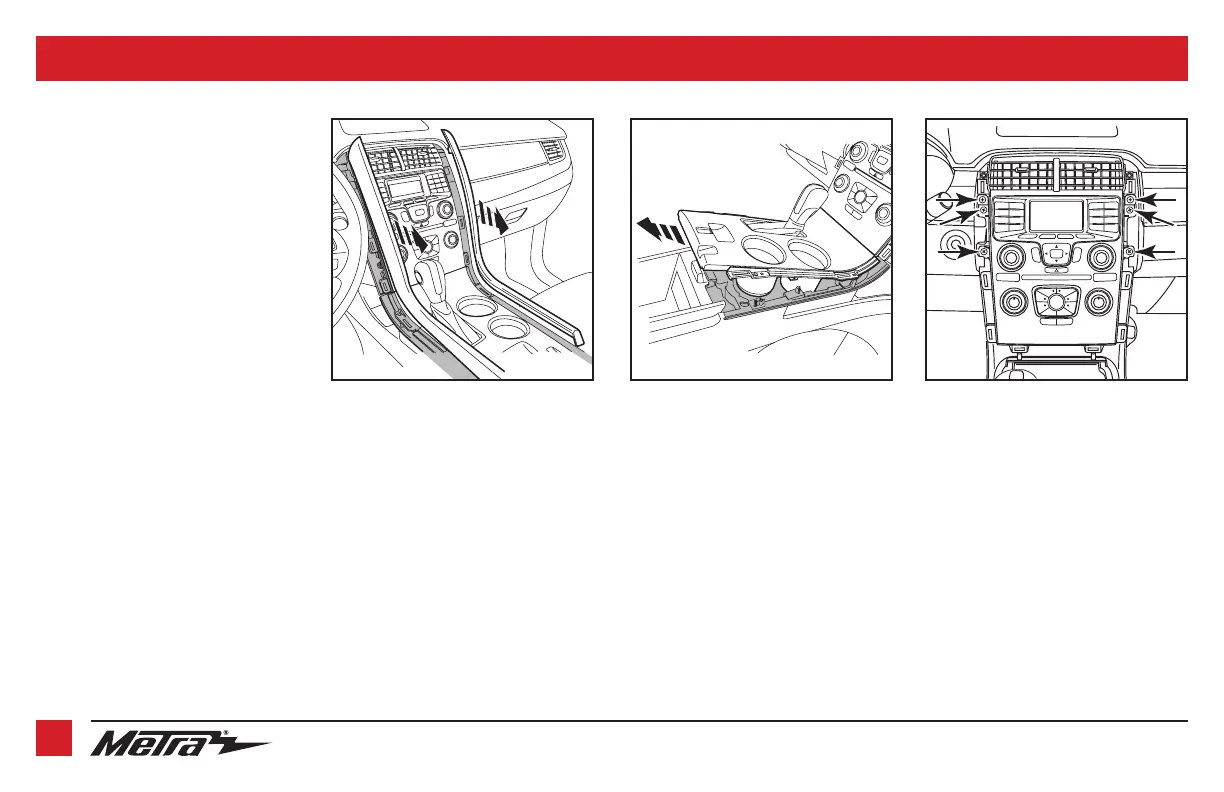

DASH DISASSEMBLY
1. Unclip and remove the (2) trim panels
from the left and right side of the
factory radio. (Figure A)
2. Remove (4) T-20 Torx screws securing
the trim panel around the shifter, then
unclip and remove the panel. (Figure B)
3. Remove (6) 9/32” screws securing the
radio/climate control panel to the dash.
(Figure C)
Continued on the next page
(Figure A) (Figure B) (Figure C)
REV. 12/12/2022 INST99-5848CH 3
4. Unclip, unplug, and remove the factory
radio/climate control panel. (Figure D)
5. Remove (4) 9/32” screws securing the
radio chassis, then unplug and remove.
(Figure E)
6. Remove (4) 9/32” screws securing
the factory display, then unplug and
remove. (Figure E)
Continue to Kit Assembly
DASH DISASSEMBLY (CONT)
(Figure D) (Figure E)
