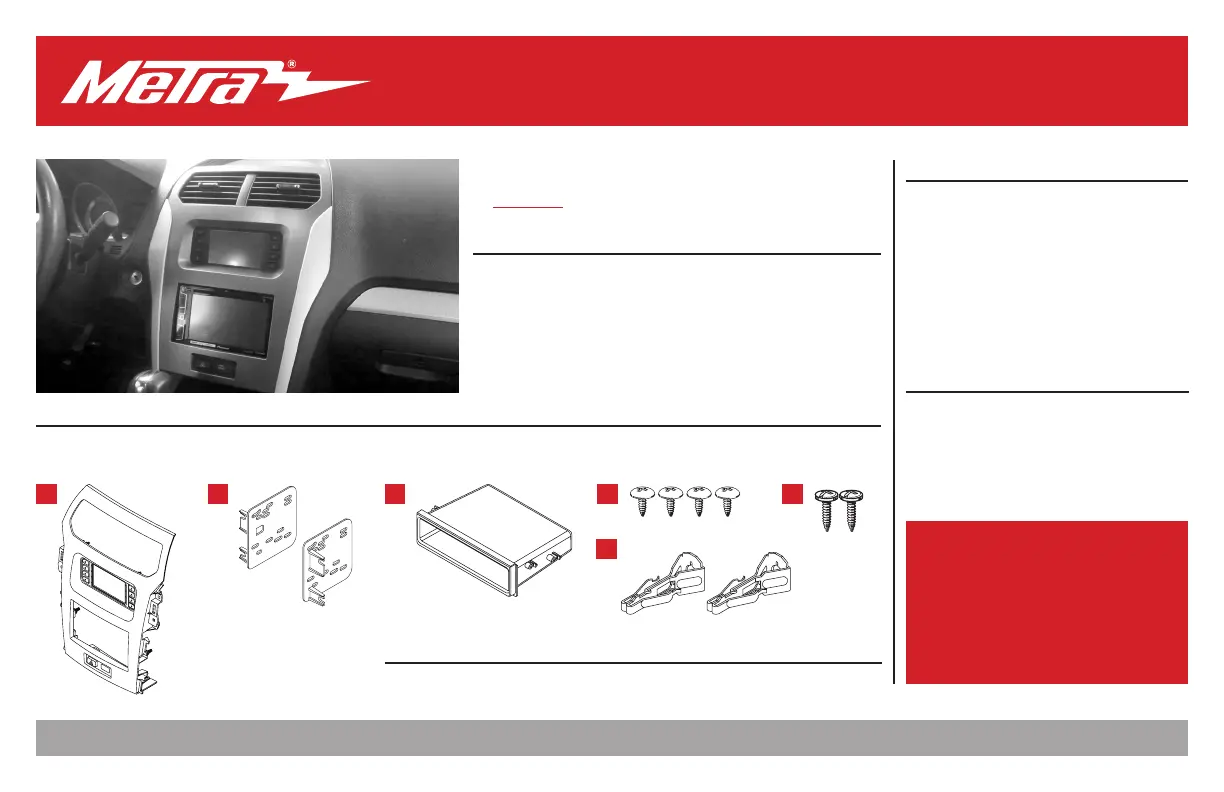

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 2/19/24 INST99-5847CH
I N S TA L L AT I O N I N S T R U C T I O N S
99-5847CH
Patent # 10,579,232
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen display for climate and personalization features
• Integrated hazard button and passenger airbag indicator
• Painted Charcoal Grey
KIT COMPONENTS
• A) Radio/Display trim panel with touchscreen display • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws for pocket
• E) (2) #4 x 1/2” Phillips screws for A/C Vent to Housing
• F) (2) Panel clips • G) Antenna adapter and harnesses (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • 9/32" Socket wrench • Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Kit Preparation 3 .......................................................
Kit Assembly
–ISO DIN radio provision with pocket 3 ..................
–ISO DDIN radio provision 3 ....................................
Final Assembly 8 .......................................................
Axxess Interface Installation 4-13 ...........................
Ford Explorer
(
with 4.2-inch touchscreen
)
2011-2019
A B C D E
F
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built into kit
• Antenna Adapter: Included with kit
• USB retention sold separately. AX-FDUSBAUX
for 2015-2019, AXFD-USB3 for 2011-2014.
2386.257.1187
|
MetraOnline.com

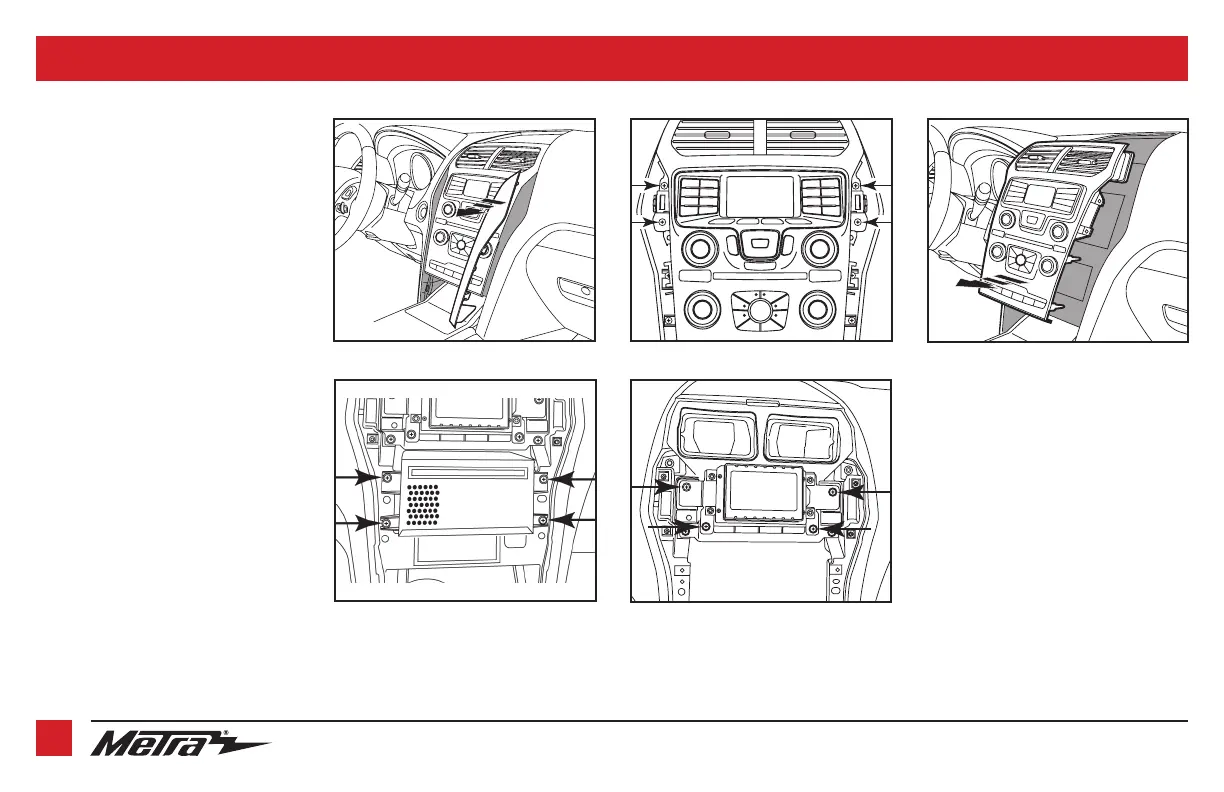

DASH DISASSEMBLY
1. Unclip and remove the (2) trim panels
from the left and right side of the factory
radio. (Figure A)
2. Remove (4) 9/32” screws securing the
radio/climate control panel to the dash.
(Figure B)
3. Unclip, unplug, and remove the factory
radio/climate control panel. (Figure C)
4. Remove (4) 9/32” screws securing the
radio chassis, then unplug and remove.
(Figure D)
5. Remove (4) 9/32” screws securing the
factory display, then unplug and remove.
(Figure E)
Continue to Kit Preparation
(Figure B)
(Figure E)(Figure D)
(Figure A) (Figure C)
REV. 2/19/24 INST99-5847CH 3
KIT ASSEMBLYKIT PREPARATION
(Figure A)
ISO DIN radio provision with pocket
1. Secure the
pocket
to the
radio brackets
using the (4) #8 x 3/8” Phillips pan head
screws supplied. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio between
radio brackets,
then secure with the screws supplied
with the radio. (Figure A)
Continue to Axxess Interface Installation
1. Remove (2) Torx screws securing the
a/c vents to the factory radio/climate
control panel, then unclip and remove
them from the panel. (Figure A)
2. Attach the a/c vents to the radio trim
panel using the (2) #4 x 1/2” Phillips
screws provided with the kit.
3. Attach the panel clips provided with the
kit onto the radio trim panel. The factory
clips may also be used if desired.
Continue to Kit Assembly
ISO DDIN radio provision
1. Secure the radio to the
radio brackets
using the screws supplied with the
radio. (Figure A)
Continue to Axxess Interface Installation
(Figure A)
(Figure A)
