Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 12/9/22 INST99-5842
I N S TA L L AT I O N I N S T R U C T I O N S
99-5842
Patent # 10,579,232
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
ISO DIN radio provision with pocket
ISO DDIN radio provision
Touchscreen display for climate and personalization features
Center panel painted silver with tan or black trim
Included interface for audio, climate and steering wheel functions
INST99-5842B - Painted matte black
INST99-5842T - Painted tan

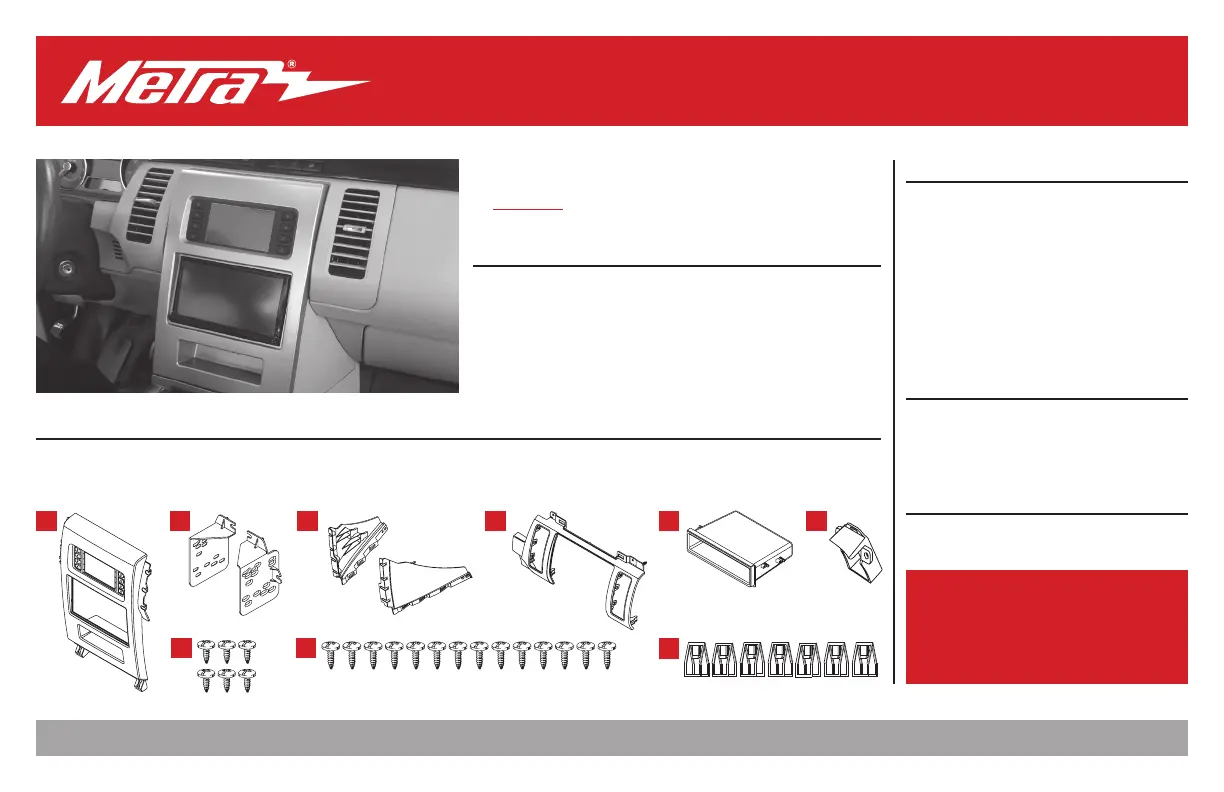

KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets • C) Left and Right bottom trim panels • D) Upper vent panel • E) Pocket
• F) Thermister housingG) (6) #8 x 3/8 Phillips pan-head screws • H) (14) #8 x 1/2” Phillips pan-head screws • I) (7) Panel clips • J) Harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Preparation .......................................................4
Kit Assembly
–ISO DIN radio provision with pocket ..................5
–ISO DDIN radio provision .....................................5
Axxess interface installation ............................6-14
Final assembly .......................................................9
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and wiring
harness included
Antenna Adapter: Included with kit
A B C
G
D E F
Ford Flex (without NAV) 2010-2012
HI
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
2386.257.1187
|
MetraOnline.com
1. Unclip and remove the trim panel
extending across the dash at the top of
the factory radio panel to the passenger
air vent. (Figure A)
2. Remove (2) 9/32” screws from the top of
the factory radio trim panel. (Figure B)
3. Unclip and remove the chrome trim
around the shifter on the top of the
center console (Figure C).
4. Unclip and remove the top of the center
console including the cup holders then
remove (2) 9/32” screws from the bottom
of the factory radio trim panel. (Figure D)
Continued on the next page
(Figure B) (Figure D)
(Figure A) (Figure C)
DASH DISASSEMBLY
REV. 12/9/2022 INST99-5842 3
DASH DISASSEMBLY (CONT.)
5. Unclip each side of the center console to
reveal (1) 9/32 screw (per side) securing
the factory radio trim panel, and remove
the screw. (Figures E, F)
Note:
You do not need to remove the
panels completely, you can unclip
them half way back to gain access to the
screw.
(Figure H)(Figure F)
(Figure G)(Figure E)
6. Unclip and remove the radio trim panel
including the a/c vents and the factory
radio/climate controls. (Figure G)
6a. Unclip and move to the side the
thermistor (if equipped) attached to
the radio trim panel.
7. Remove (4) 9/32” screws securing the
factory display. (Figure H)
8. Remove (4) 9/32” screws securing the
factory radio chassis. (Figure H)
Continue to Kit Preparation
