I N S TA L L AT I O N I N S T R U C T I O N S
99-5839CH
Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 2/7/23 INST99-5839CH
Patent # 10,579,232
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Touchscreen interface for climate and personalization features
• Painted charcoal with a matte black center

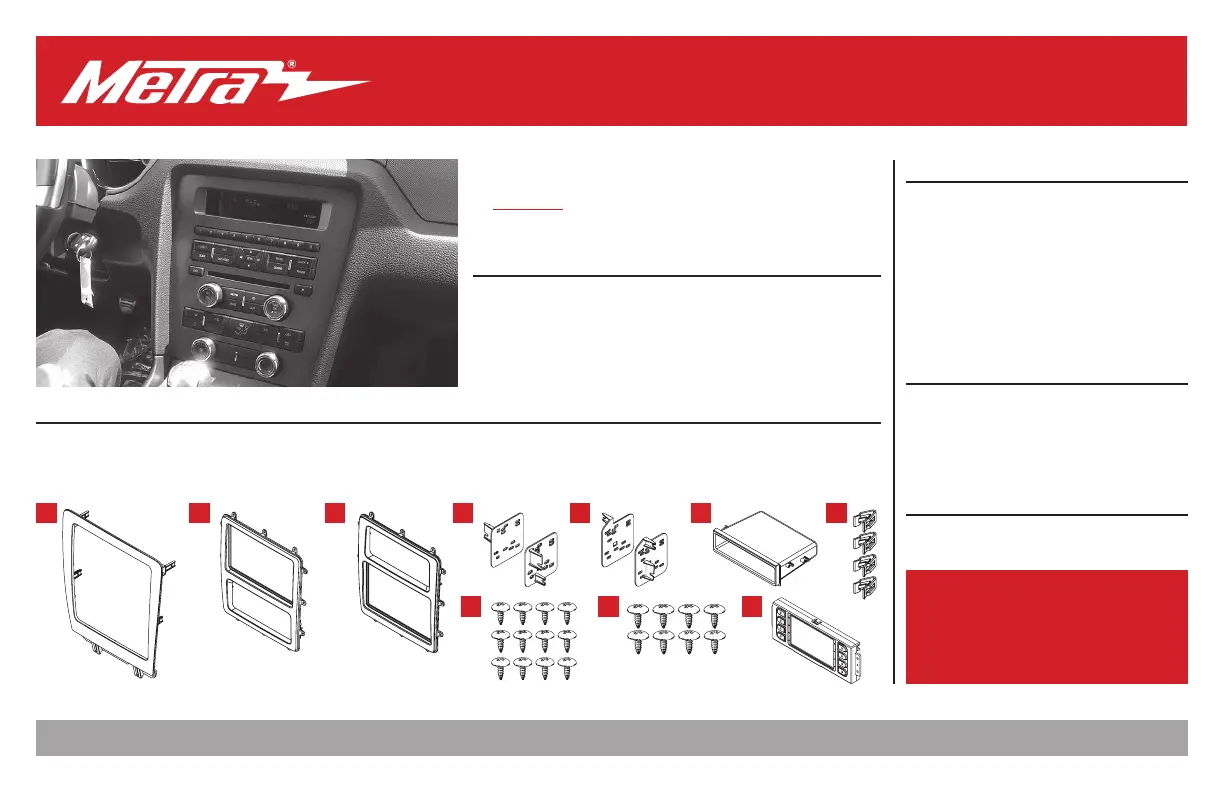

KIT COMPONENTS
• A) Radio/Display trim panel • B) Radio/Display sub-trim panel upper (a) • C) Radio/Display sub-trim panel lower (b) • D) Radio brackets upper (a)
• E) Radio brackets lower (b) • F) Pocket • G) (4) Panel clips • H) (12) #6 x 3/8” Phillips pan-head screws • I) (8) #8 x 3/8” Phillips truss-head screws
• J) Touchscreen display assembly and wiring harness • K) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................5
Axxess Interface Installation ............................6-15
Final Assembly ..................................................... 10
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
A B C D
H I J
E F G
Ford Mustang 2010-2014
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
2386.257.1187
|
MetraOnline.com

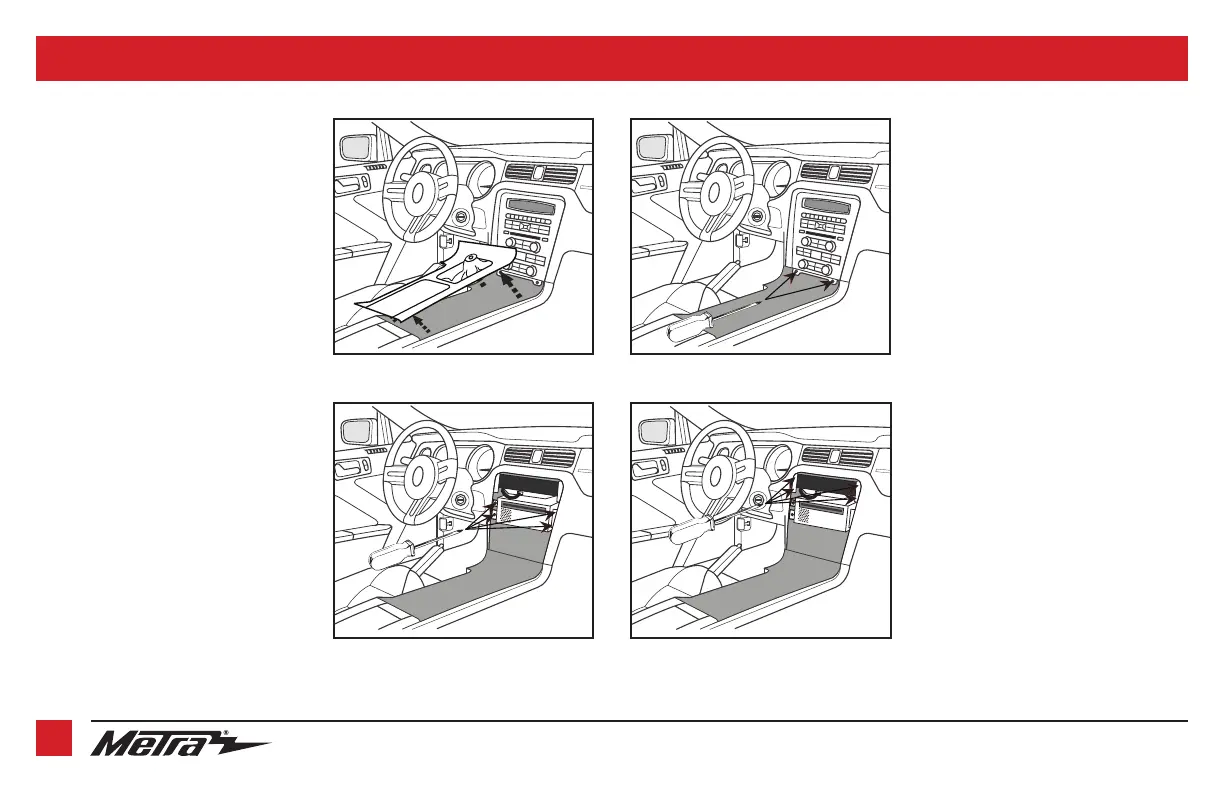

DASH DISASSEMBLY
1. Unclip and remove the trim panel
surrounding the shifter, including the
cup holders. (Figure A)
2. Remove (2) 9/32” screws from the
bottom of the radio/climate control
panel, then unclip and remove the
panel. (Figure B)
3. Remove (4) Phillips screws securing the
radio chassis to the vehicle. Slide the
chassis out, then unplug and remove.
(Figure C)
4. Remove (4) Phillips screws securing the
radio display to the vehicle. Slide the
display out, then unplug and remove.
(Figure D)
Continue to Kit Preparation
(Figure C) (Figure D)
(Figure B)(Figure A)
3
REV. 2/7/23 INST99-5839CH
KIT PREPARATION
1. There are two different radio/display
sub-trim panels to choose from. One for
mounting the radio in the upper portion
of the kit, and another one for mounting
it in the lower portion. (Figure A)
If mounting the radio in the upper
portion, a factory module will need to
be re-located:
a. Remove the module from the sub-
dash and relocate it to the bottom
of the dash opening. The mounting
brackets attached to the module will
need to be bent outward to make
room for the radio.
(Figure B) (Figure D)
(Figure A) (Figure C)
2. Attach the desired radio/display
sub-trim panel radio/display to the
panel using the (12) #6 x 3/8” pan-head
screws provided. (Figure B)
3. touchscreen display Attach the
assembly radio/display sub- to the
panel using the (4) #8 x 3/8” truss-head
screws provided. (Figure C)
4. Attach the (4) provided to panel clips
the radio/display panel. (Figure D)
Continue to Kit Assembly
