Attention: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that

all installation connections are secure before

cycling the ignition to test this product.

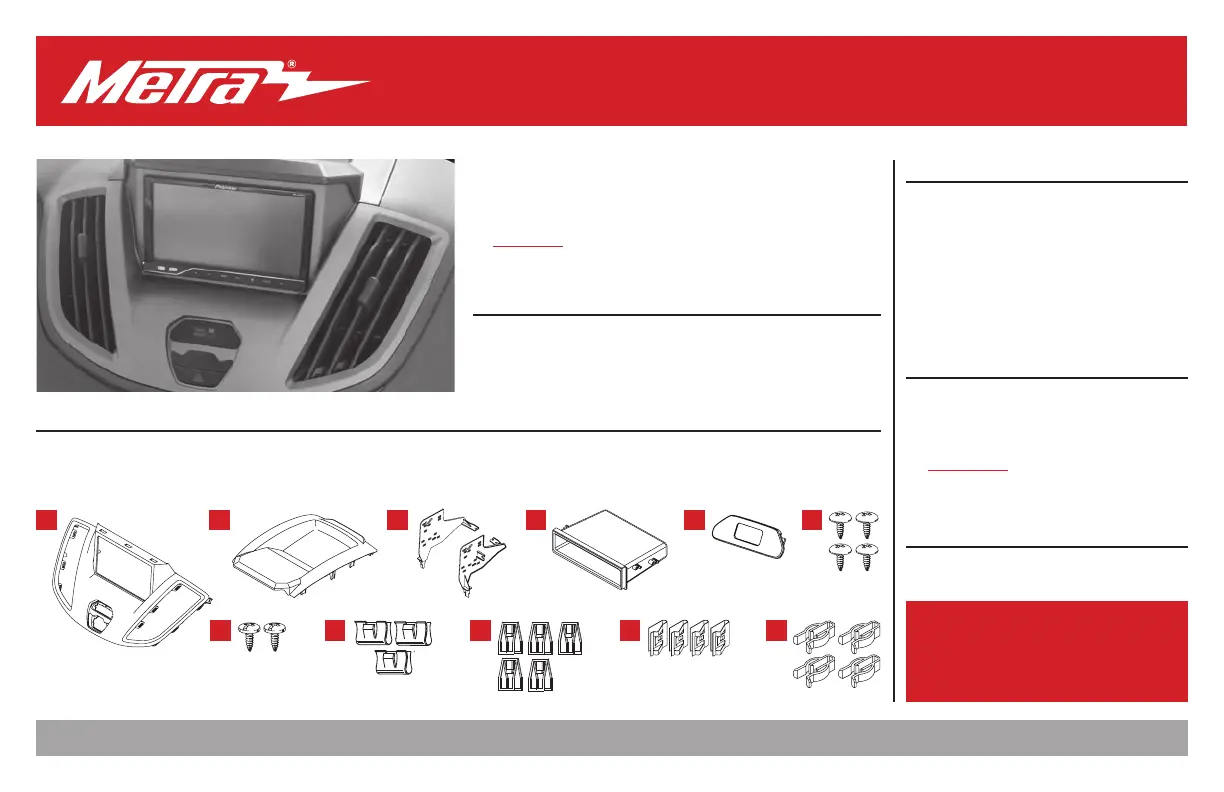

I N S TA L L AT I O N I N S T R U C T I O N S

99-5835G

KIT FEATURES

• ISO DIN radio provision with pocket

• ISO DDIN radio provision

• Radio trim panel is painted gray

KIT COMPONENTS

• A) Radio trim panel • B) Dash panel • C) Radio brackets • D) Pocket • E) Airbag light • F) (4) #8 x 3/8" Phillips truss head screws

• G) (2) #8 x 3/8" Phillips pan head screws • H) (3) Metal “U” panel clips • I) (5) Metal “D” panel clips • J) (4) Small metal “D” panel clips • K) (4) Plastic panel clips

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• Socket wrench • T-20 Torx driver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Preparation .......................................................2

Kit Assembly

–ISO DIN radio provision with pocket ..................3

–ISO DDIN radio provision .....................................3

Final Assembly .......................................................3

WIRING & ANTENNA CONNECTIONS

(sold separately)

Wiring Harness: 70-5524

Antenna Adapter: 40-EU10

A B C F

D E

Ford Transit 2015-2019*

H I J K

*For non-navigation model

Visit for more detailed information about the product and up-to-date vehicle

MetraOnline.com

speciﬁc applications

Visit for audio/video and steering wheel MetraOnline.com

control interface options.

1-386-257-1187

MetraOnline.com

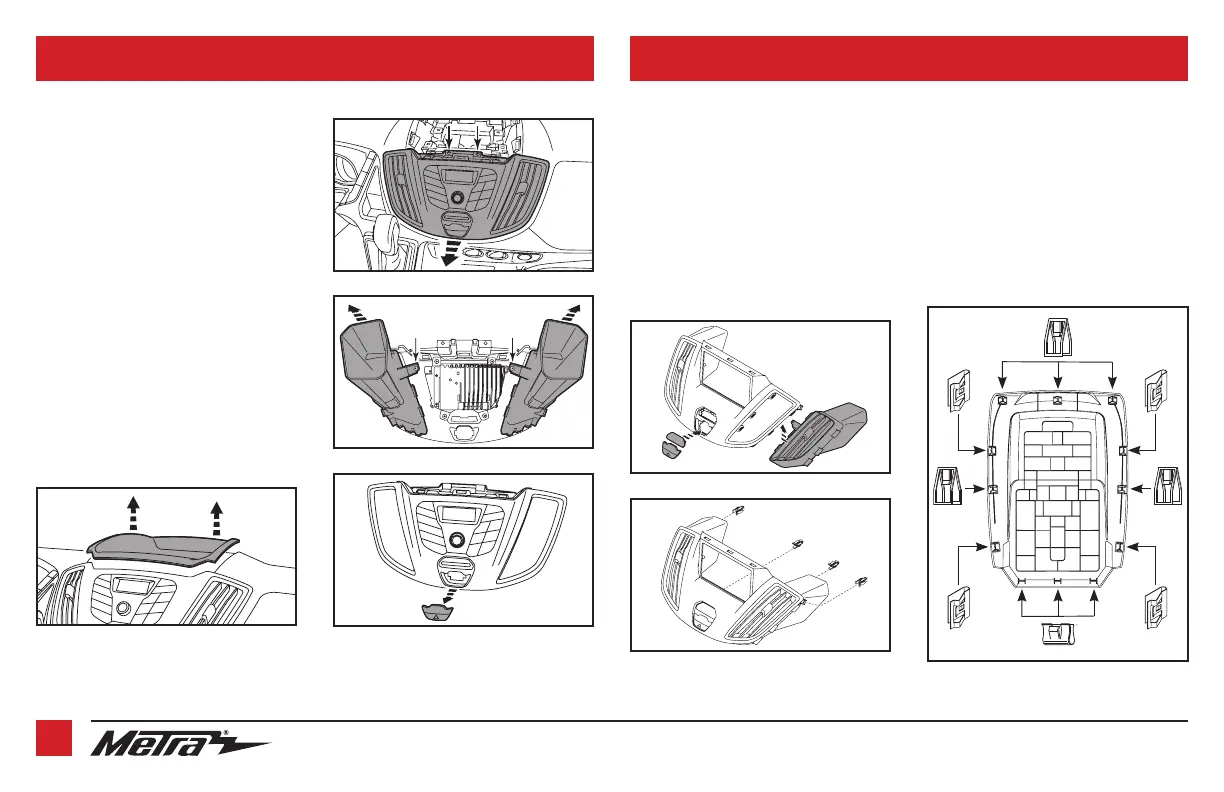

DASH DISASSEMBLY KIT PREPARATION

1. Unclip the dash panel above the radio.

(Figure A)

2. Remove (2) T-20 Torx screws securing the

factory radio/trim panel. (Figure B)

3. Unclip the factory radio/trim panel from

the dash, unplug and remove. (Figure B)

4. Remove (1) T-20 Torx screw per vent then

unclip and remove the vents from the

factory radio/trim panel. (Figure C)

5. Unclip and remove the hazard switch

assembly from the factory radio/trim

panel. (Figure D)

Continue to Kit Preparation

1. Secure the factory vents to the radio

trim panel using the (2) #8 x 3/8"

Phillips pan head screws provided.

(Figure A)

2. Snap the factory hazard button into the

radio trim panel. An airbag light blank

has been included for models without a

passenger airbag indicator. (Figure A)

(Figure B)

(Figure A) (Figure D)

(Figure B) (Figure C)

(Figure C)

(Figure A)

3. Attach the (4) plastic panel clips

provided to the radio trim panel.

(Figure B)

4. Attach the (12) metal panel clips

provided to the dash panel. (Figure C)

Continue to Kit Assembly

REV. 7/27/21 INST99-5835G

KIT ASSEMBLY FINAL ASSEMBLY

ISO DIN radio provision with pocket

1. Attach the pocket to the radio brackets

using the (4) supplied #8 x 3/8" Phillips

truss head screws. (Figure A)

2. Remove the metal DIN sleeve and trim

ring from the aftermarket radio.

3. Slide the radio into the completed

assembly and then secure it using the

screws supplied with the radio.

(Figure B)

Continue to Final Assembly

ISO DDIN radio provision

1. Attach the radio brackets to the radio

using screws supplied with the radio.

(Figure C)

Continue to Final Assembly

(Figure A)

1. Cut the shaded portion from the

sub-dash of the vehicle to allow the

radio to ﬁt. (Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/

or AXXESS. Test the radio for

proper operation.

3. Secure the radio into the dash.

4. Snap the radio trim panel over the radio

and then reassemble the dash in reverse

order of disassembly.

Remove shaded area

(Figure A)

(Figure B)

(Figure C)
