Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 3/12/19 INST99-5833B
I N S TA L L AT I O N I N S T R U C T I O N S
99-5833B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.

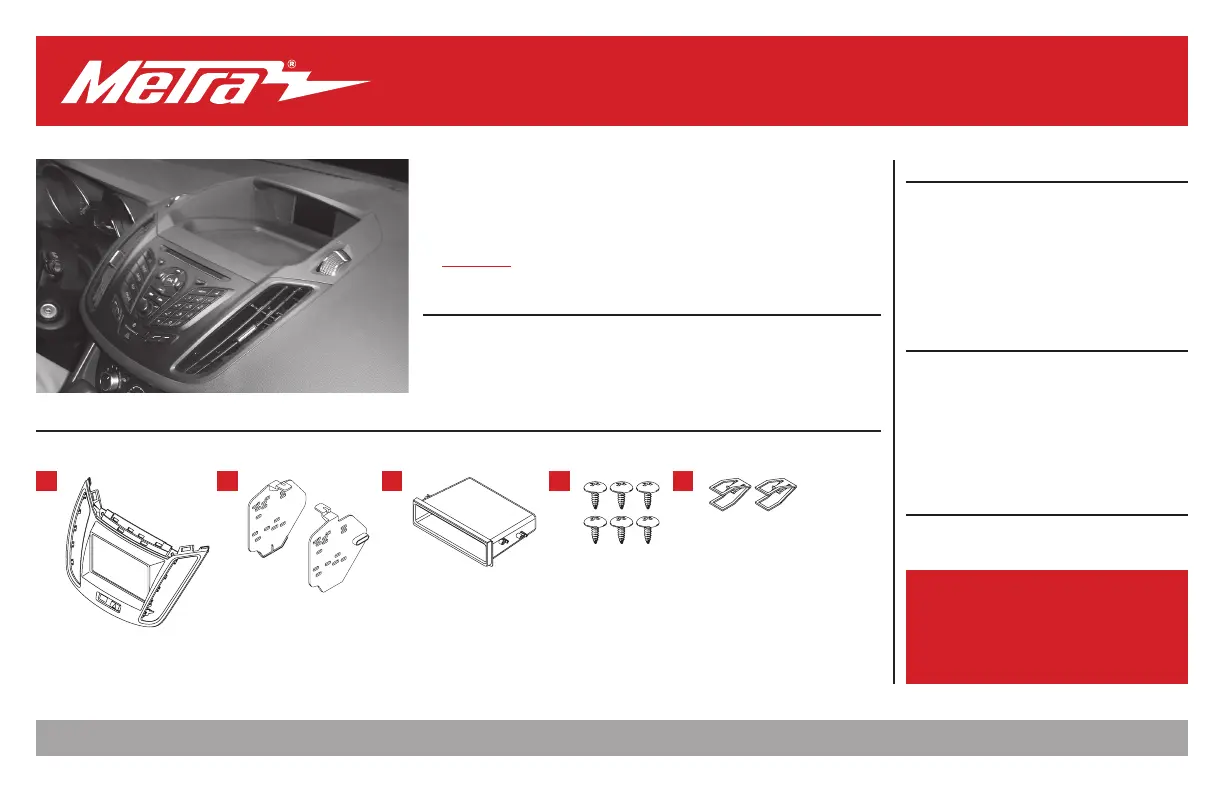

KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (6) #8 x 3/8” Phillips screws • E) (2) Metal panel clips
TOOLS REQUIRED
• Panel removal tool • T-25 Torx screwdriver
• 7mm socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly .............................................. 2-4
Kit Preparation .......................................................5
Kit Assembly
–ISO DIN radio provision with pocket ..................6
–ISO DDIN radio provision .....................................7
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: XSVI-5524-NAV
• AX-ADBOX2 & AX-ADFD02
Antenna Adapter: 40-EU10
Backup Camera Retention: AX-FDSYNC-SWC
Steering Wheel Control Interface: ASWC-1
Ford Escape (S Trim) 2019*
Ford Escape 2013-2018*
* With 4.2-inch display screen
Visit for more detailed information about the product and up-to-date vehicle specic applicationsMetraOnline.com
A B C D E
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY

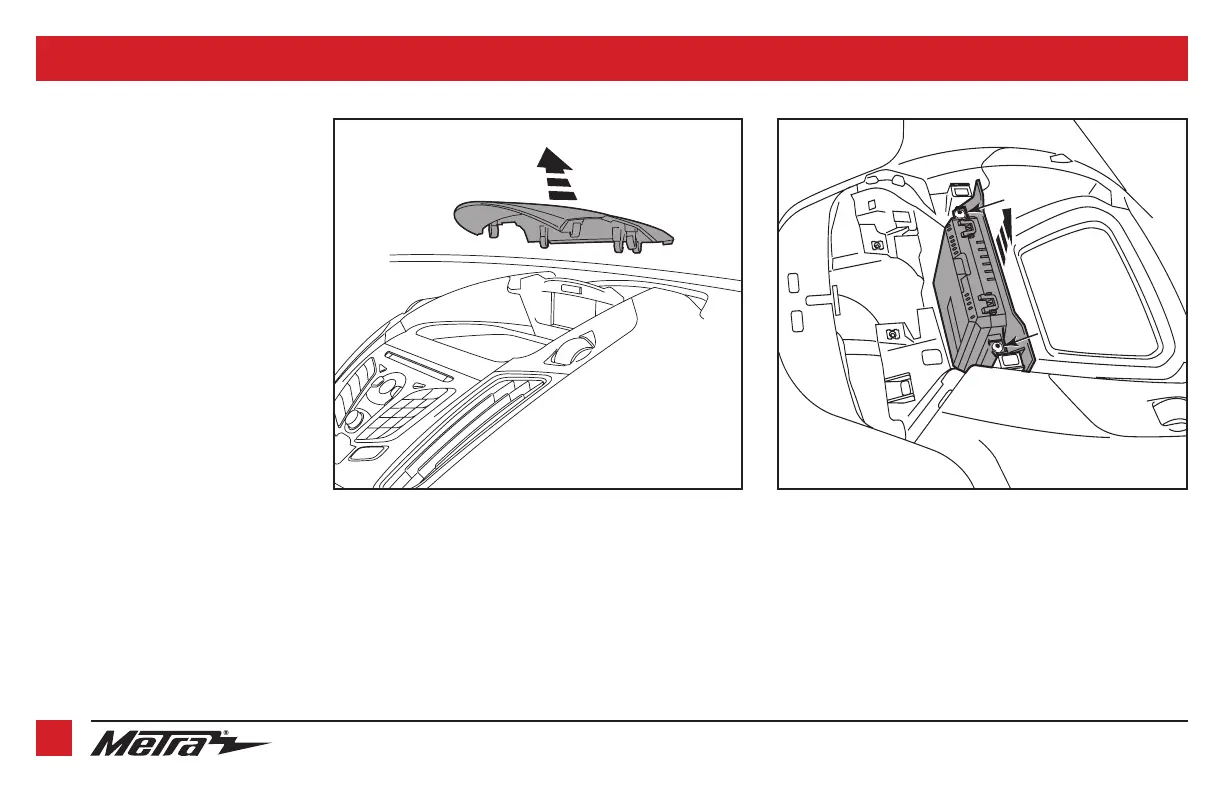

1. Unclip and remove the top trim panel
above the display screen. (Figure A)
2.
Remove (2) T-25 Torx screws securing
the screen to the dash, then unclip and
remove the screen by pulling straight up.
(Figure B)
Continued on the next page
(Figure A) (Figure B)
REV. 3/12/20198 INST99-5833B 3
DASH DISASSEMBLY
(CONT.)
(Figure C) (Figure D)
3.
Unclip and remove the trim panel above
the radio. (Figure C)
4.
Remove (3) 7mm screws exposed, (2) in
the front, and (1) in the rear, then unclip
and remove the trim panel above the
radio. (Figure D)
Continued on the next page
