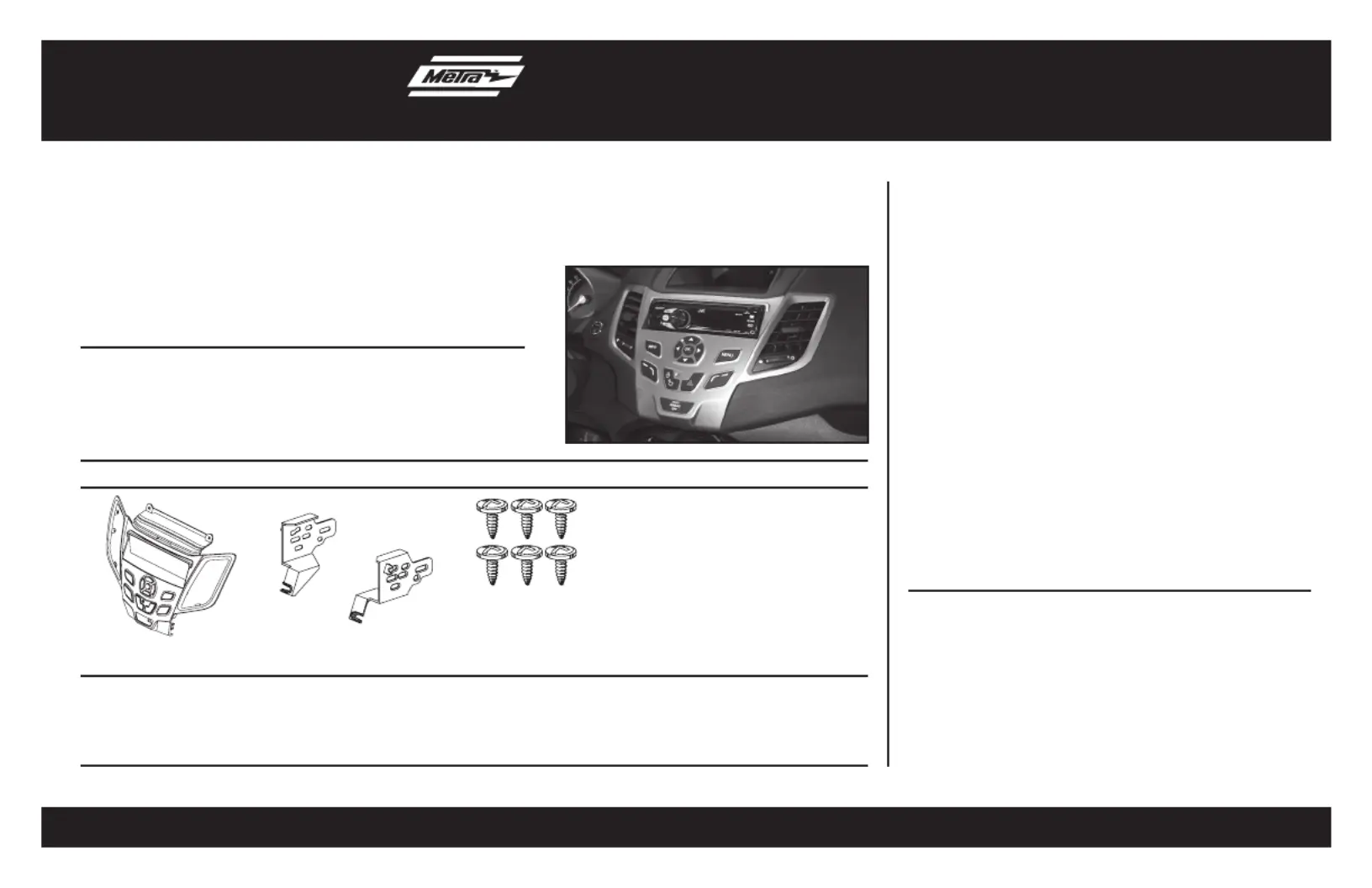

INSTALLATION INSTRUCTIONS FOR PART 99-5825
APPLICATIONS
METRA. The World’s best kits.metraonline.com1-800-221-0932 © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION
REV. 12/19/2019 INST99-5825
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in
beforereconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Table of Contents
• ISO DIN radio provision
• Driver information circuits and buttons
• Painted Silver or Matte Black to match factory finish
A) Radio Housing • B) Radio ISO Brackets • C) (6) #8 x 3/8” Phillips truss head screws
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • XSVI-5524-NAV Ford interface 2011-up
Antenna Adapter: • 40-EU10 multi-app adapter
• Panel removal toolPhillips screwdriver • Socket Wrench • Cutting Tool
TOOLS REQUIRED
A CB
Dash Disassembly
Ford Fiesta 2011-Up 2 ............................................
Kit Assembly
ISO DIN radio provision......................................... 3
NOTE: This kit comes pre-programmed for vehicles
equipped with SYNC. It will not operate properly in vehicles
equipped without SYNC unless it is programmed.
Programming for vehicles without SYNC:
1. Turn on the ignition.
2. Press and hold the kit’s menu button for
ten seconds.
3. Release the menu button and test the kit’s buttons
for proper operation.
99-5825

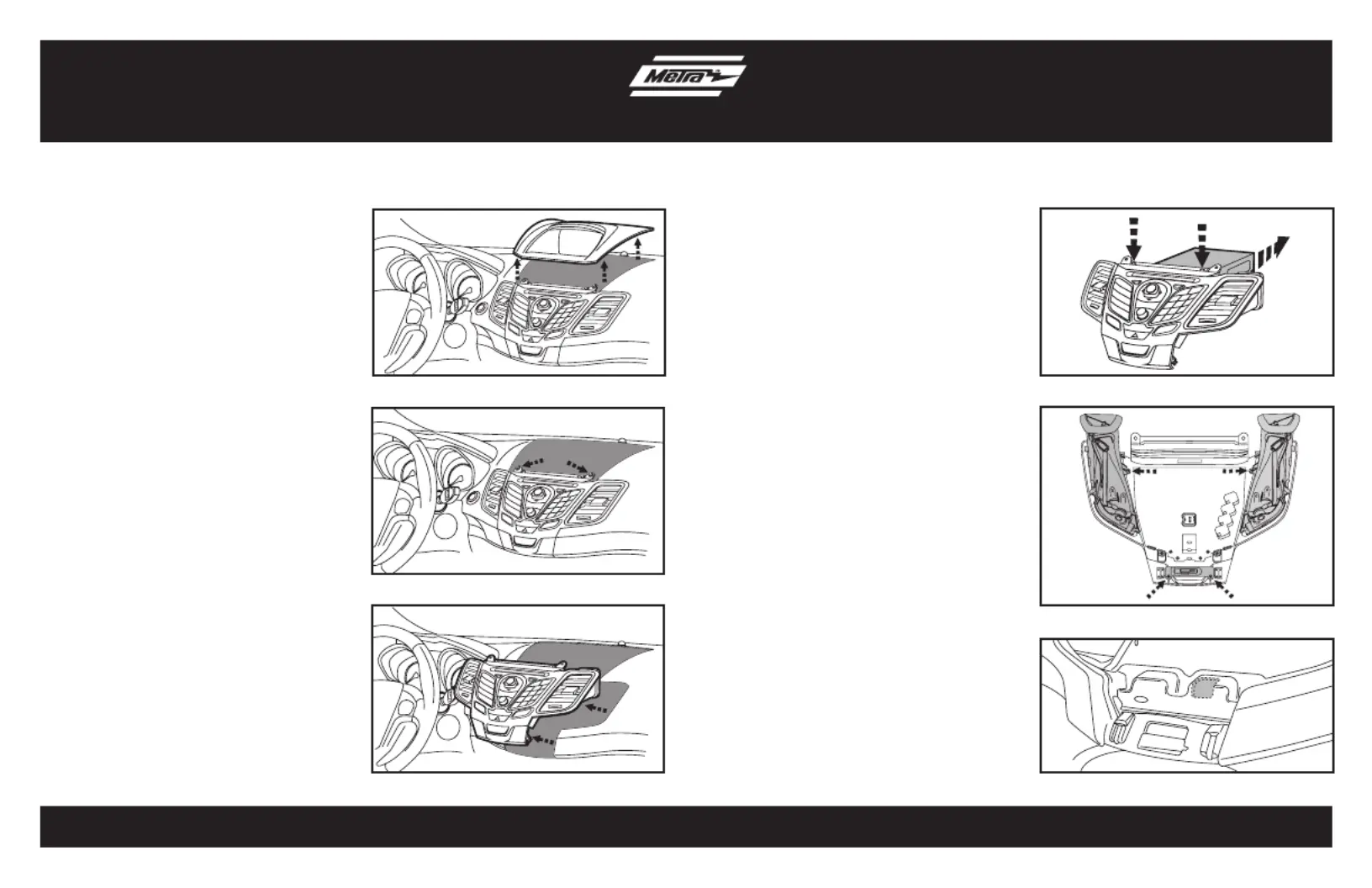

1. Unsnap and remove the panel
over the display at the top of
the dash. (Figure A)
2. Remove two 7 mm hex screws
from the top of the radio panel.
(Figure B)
3. Unclip and remove the radio
trim panel including the vents.
(Figure C)
Dash Disassembly
(Figure D)
(Figure A)
(Figure E)
(Figure B)
(Figure F)(Figure C)
4. Remove two 7 mm hex holding
radio and radio chassis together
(from top of panel). (Figure D)
5. Remove two T-20 Torx and unclip
the two vents from the factory
radio panel. (Figure E)
6. Remove two T-20 Torx from
passenger airbag light and remove
it. (Figure E)
7. A small cut is required in the sub
dash for clearance. (Figure F)
Continue to kit assembly
99-5825

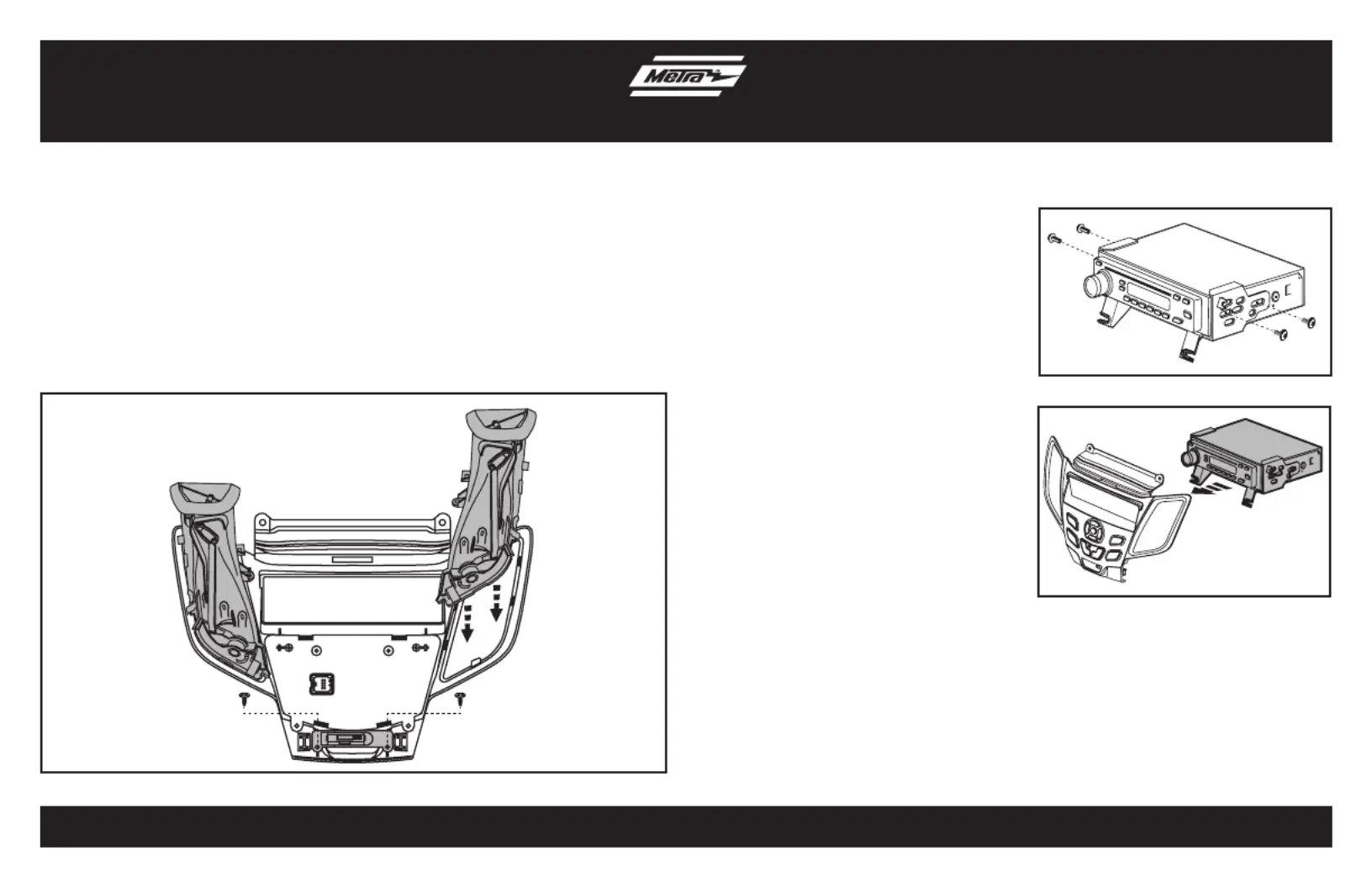

Kit Assembly
(Figure A)
(Figure C)
1. Snap the factory vents into the
radio panel. (Figure A)
2. Mount the ISO brackets to the
head unit with the screws supplied
with the unit. (Figure B)
3. Mount the radio bracket assembly
to the radio panel using the
supplied screws. (Figure C)
4. Mount the factory airbag indicator
to the Radio Panel using the
supplied screws. (Figure A)
(Figure A)
5. Locate the factory wiring
harness and antenna plug in the
dash. Metra recommends using
the proper mating adapters from
Metra and/or AXXESS.
6. Reassemble dash in reverse order
of disassembly.
NOTE: This kit comes pre-programmed
for vehicles equipped . It with SYNC
will not operate properly in vehicles
equipped unless it is without SYNC
programmed.
Programming for vehicles
without SYNC:
1. Turn on the ignition.
2. Press and hold the kits menu
button for ten seconds.
3. Release the menu button and test
the kits buttons for proper
operation.
