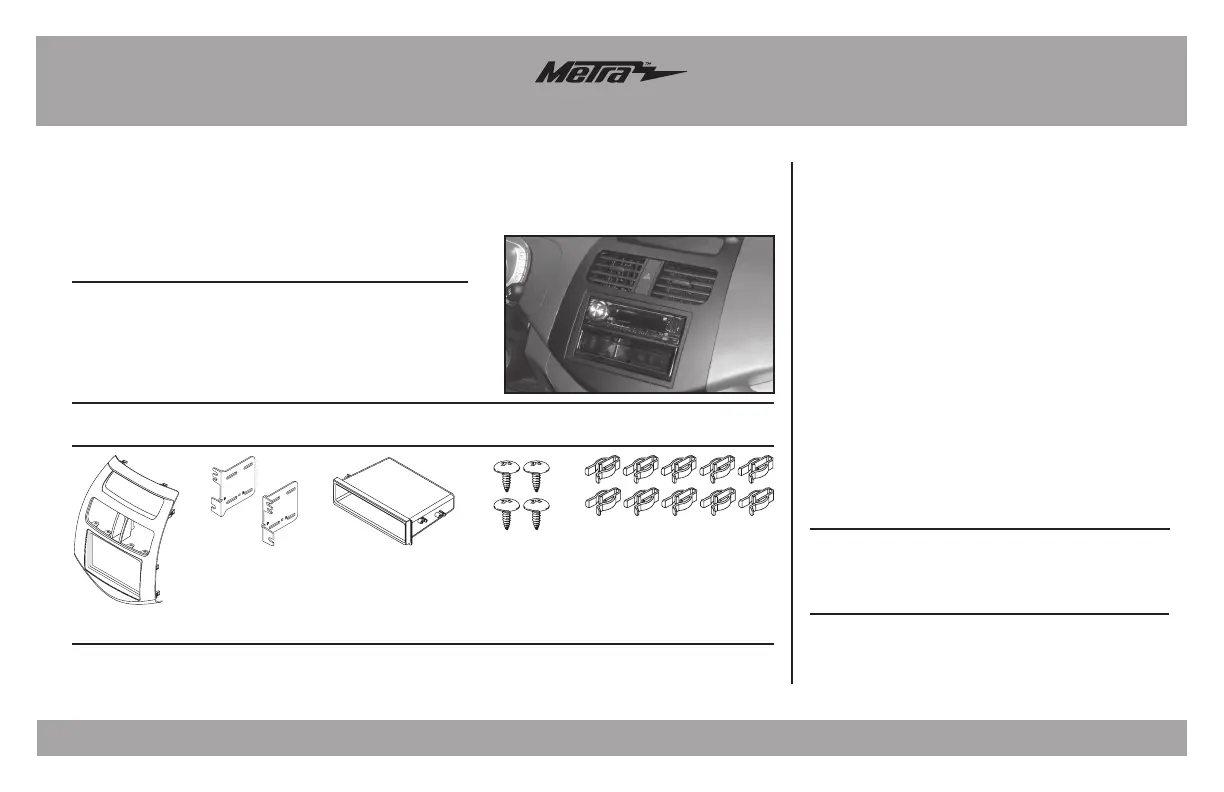

METRA. The World’s best kits.metraonline.com © COPYRIGHT 2004-2016 METRA ELECTRONICS CORPORATION
REV. 7/27/2016 INST99-3309B-LC
Installation instructions for part 99-3309B-LC
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
Painted matte black to match the factory dash
A) Radio trim panelB) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws
• E) (10) White plastic panel clips • F) Axxess Interface included (not shown)
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:Axxess Interface included
Antenna Adapter: • 40-EU55
• Panel removal tool • Phillips screwdriver
TOOLS REQUIRED
Dash Disassembly ..................................................2
Kit Preparation ....................................................... 2
Kit Assembly
ISO DIN radio provision with pocket 3 ......................
ISO DDIN radio provision 3 ......................................
Axxess Interface Installation ................................ 4
Connections to be made 4 .......................................
Installing the Axxess interface 5 ..............................
Initializing the Axxess interface 5 ............................
Vehicle customization with the optional AX-LCD 5 ...
Table of Contents
A B C D E
99-3309B-LC

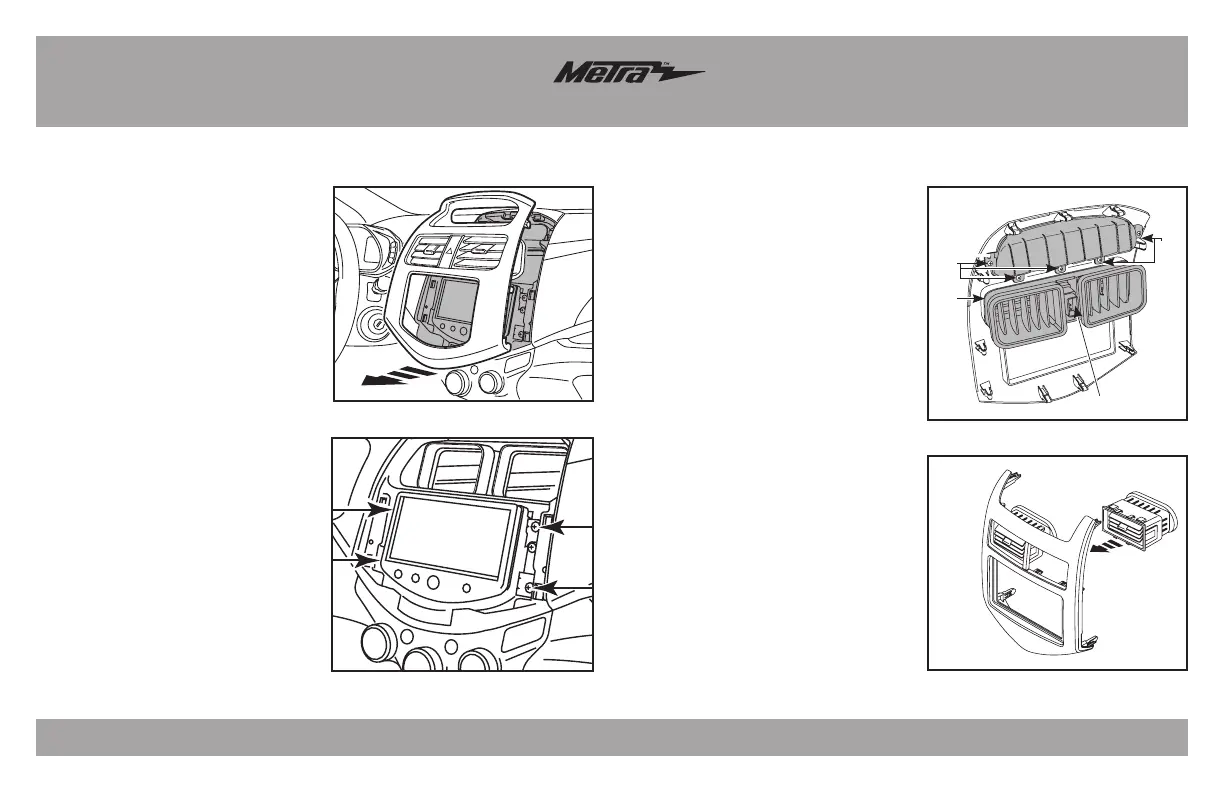

Dash Disassembly
1. Unclip and remove the radio trim
panel. (Figure A)
2.
Remove (4) Phillips screws securing
the factory radio and then remove.
(Figure B)
Continue to Kit Preparation
From the factory radio trim panel
(Figure A):
1. Unclip and remove the A/C vents.
2. Unclip and remove the hazard
button.
3. Remove (5) Phillips screws
securing the upper display shroud.
From the 99-3309B-LC radio trim
panel (Figure B):
1. Snap in the factory A/C vents.
2. Attach the (10) panel clips
supplied.
Continue to Kit Assembly
Kit Preparation
(Figure A)
Step 3
Step 3
Step 1
Step 2
(Figure A)
(Figure B) (Figure B)
99-3309B-LC
Kit Assembly
ISO DIN radio provision with pocket
1. Secure the pocket radio to the
brackets with the (4) #8 x 3/8”
Phillips screws supplied. (Figure A)
2. Remove the metal DIN sleeve and
trim ring from the aftermarket radio
.
3. Slide the radio between the radio
brackets and secure with screws
supplied with the radio. (Figure A)
4. Continue to Axxess Interface
Installation, and once completed,
reassemble the dash in reverse
order of disassembly using the 99-
3309B-LC radio trim panel instead
of the factory panel.
ISO DDIN radio provision
1.
Slide the radio between the
radio
brackets
and secure with the
screws supplied with the radio.
(Figure A)
2.
Continue to Axxess Interface
Installation, and once completed,
reassemble the dash in reverse
order of disassembly using the 99-
3309B-LC
radio trim panel
instead
of the factory panel.
(Figure A) (Figure A)
