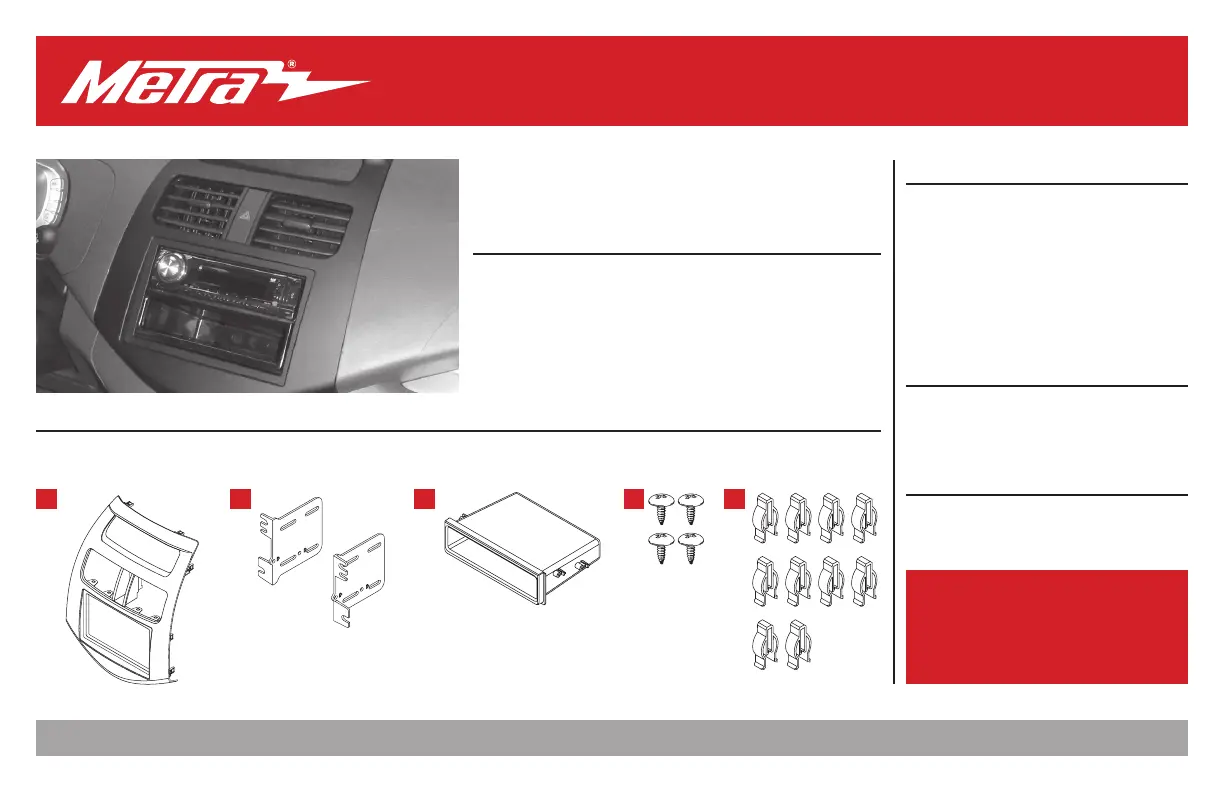

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 10/20/22 INST99-3309B
I N S TA L L AT I O N I N S T R U C T I O N S
99-3309B
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
ISO DIN radio provision with pocket
ISO DDIN radio provision
Painted matte black
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (10) Panel clips • F) Axxess interface and wiring harness (not
shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................3
Kit Assembly
–ISO DIN radio provision with pocket ..................4
–ISO DDIN radio provision .....................................4
Axxess Interface Installation ............................. 5-9
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface included
Antenna Adapter: 40-EU55
A B C ED
Chevrolet Spark 2013-2015
386.257.1187
|
MetraOnline.com
2
DASH DISASSEMBLY
(Figure A) (Figure B)
1. Unclip and remove the radio trim panel.
(Figure A)
2. Remove (4) Phillips screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure B)
Continue to kit preparation
REV. 10/20/2022 INST99-3309B 3
KIT PREPARATION
(Figure A) (Figure B)
From the factory radio trim panel:
1. Unclip and remove the vents from the
factory panel. (Figure A)
2. Unclip and remove the hazard button
from the trim panel. (Figure A)
3. Remove (5) Phillips screws securing the
upper display shroud from the factory
panel. (Figure A)
Step 1
Step 3
Step 2
Step 3
To the 99-3309B radio trim panel:
1. Clip in the factory vents and hazard
button. (Figure B)
2. Secure the upper display shroud using
the factory screws. (Figure B)
3. Attach the (10) panel clips provided.
Step 1
Step 2
Step 1
Step 2
