METRA. The World’s best kits.™metraonline.com © COPYRIGHT 2004-2015 METRA ELECTRONICS CORPORATION
REV. 10/1/2015 INST99-3303
Installation instructions for part 99-3303
CAUTION!
Metra recommends disconnecting the negative bat
-
tery terminal before beginning any installation, unless the vehicle
manufacturer recommends against so. Please check with your local
Dealership for more information. All accessories, switches, climate
controls panels, and especially air bag indicator lights must be con
-
nected before reconnecting the battery or cycling the ignition. Also,
do not remove the factory radio with the key in the on position, or the
vehicle running. It would be best to remove the key from the ignition
and then wait a few seconds before removing the factory radio.
• DIN radio provision with driver information center (DIC)
• ISO DIN radio provision with driver information center (DIC)
• Painted to match factory dash

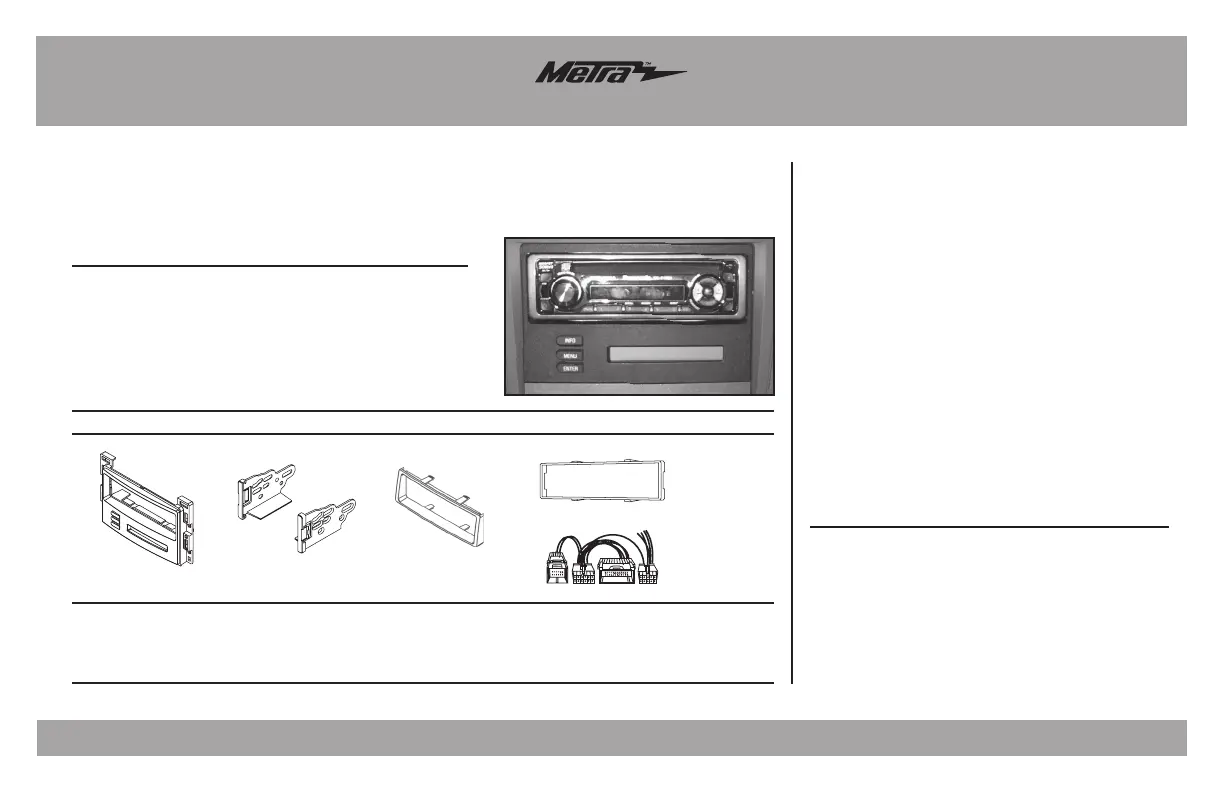

• A) Radio housing • B) ISO brackets • C) ISO trim plate • D) (9) DIN spacer • E) Wire harness
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included
Antenna Adapter: • 40-GM10
• Phillips screwdriver • 7mm socket wrench • Cutting tool (Cobalt only) • Wire cutters • Wire strippers
TOOLS REQUIRED
Dash Disassembly
– Chevrolet Malibu/Malibu Maxx 2004-2007 2-3 .........
– Chevrolet Malibu Classic 2008 2-3 ............................
– Chevrolet Cobalt (with OnStar) 2005-2006 5 .............
– Pontiac G6 2005-2008 4 ..........................................
– Pontiac G6 (5th digit of VIN must be
a G, H, or M) 2009 4 .................................................
Kit Assembly
– DIN radio provision with driver information
center (DIC) 6 ...........................................................
– ISO DIN radio provision with driver information
center (DIC) 6 ...........................................................
Final Assembly ....................................................... 7
Operation of the 99-3303 ....................................... 8
Table of Contents
B CA D
E
99-3303
Applications
1. Unclip and remove the wood grain/
painted trim pieces from both
sides of steering wheel. (Figure A)
2. Unclip and remove the side panel
from the driver’s side of the dash
with the door open and remove (2)
7mm screws. (Figure B)
3. Remove (2) 7mm screws from the
bottom edge of the panel below
the steering wheel. Unclip the
panel and let hang (not necessary
to completely remove the panel).
(Figure C)
4. Unclip and remove the wood grain/
painted trim pieces from above
glove box.(Figure D)
Continued on the next page
(Figure B) (Figure D)
Dash Disassembly
(Figure A) (Figure C)
CHEVROLET
Cobalt (with OnStar) 2005-2006
Malibu Classic 2008
Malibu/Malibu Maxx 2004-2007
PONTIAC
G6 (5th digit of VIN must be
a G, H, or M) 2009
G6 2005-2008
Chevrolet Malibu/Malibu Maxx 2004-2007
Malibu Classic 2008
99-3303
Dash Disassembly
(Figure E) (Figure G)
(Figure F) (Figure H)
5. Unclip and remove the side panel from
the driver’s side of the dash with the door
open, and remove (2) 7mm screws from
behind the panel. (Figure E)
6. Remove (2) 7mm screws from the
bottom of the glove box. Open the box
and squeeze the sides together to open
it further, and then remove the remaining
(4) 7mm screws. Unclip the black vent
cover under the glove box, then unclip
and remove entire glove box assembly.
(Figure F)
7. Unclip and remove the trim panel
surrounding the radio and climate
controls. (Figure G)
8. Remove (4) 7mm screws from the radio,
and (2) 7mm screws from the climate
control to remove the radio. (Figure H)
Continue to kit assembly
Chevrolet Malibu/Malibu Maxx 2004-2007
Malibu Classic 2008
