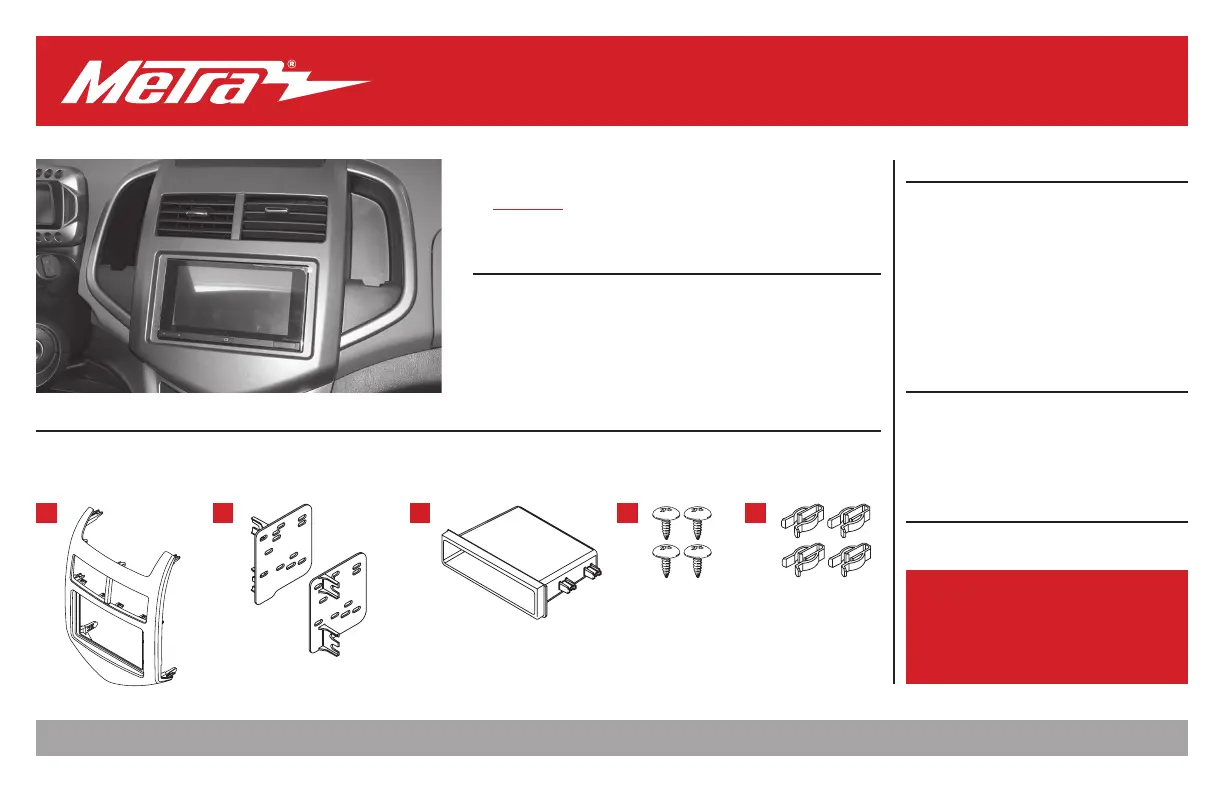

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 2/28/19 INST99-3012G-LC
I N S TA L L AT I O N I N S T R U C T I O N S
99-3012G-LC
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted gray to match the factory finish
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) Panel clips
• F) Axxess interface and wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
Axxess Interface Installation .................................4
Final Assembly .......................................................6
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and harness included
Antenna Adapter: 40-EU55 (sold separately)
Steering Wheel Control Interface: ASWC-1
(sold separately)
A B C D E
Chevy Sonic 2012-2016
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY KIT PREPARATION
1. Unclip and remove the panel
surrounding the radio/climate controls.
(Figure A)
2. Remove (4) 9/32” screws securing the
radio and then remove. (Figure B)
Continue to Kit Preparation
1. Unclip the A/C vents from the factory
radio/climate control panel.
2. Clip the vents into the 99-3012G
radio
trim panel
. (Figure A)
3. Attach the (4)
panel clips
supplied onto
the panel.
Continue to Kit Assembly
(Figure A)
(Figure B)
(Figure A)
REV. 2/28/2019 INST99-3012G-LC 3
KIT ASSEMBLY
ISO DIN radio provision with pocket
1. Attach the
pocket
to the
radio brackets
using the (4) #8 x 3/8” Phillips screws
provided. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly and then secure it using the
screws supplied with the radio.
(Figure A)
Continue to Axxess
Interface Installation
ISO DDIN radio provision
1. Attach the
radio brackets
to the radio
using the screws supplied with the
radio. (Figure A)
Continue to Axxess
Interface Installation
(Figure A) (Figure A)
