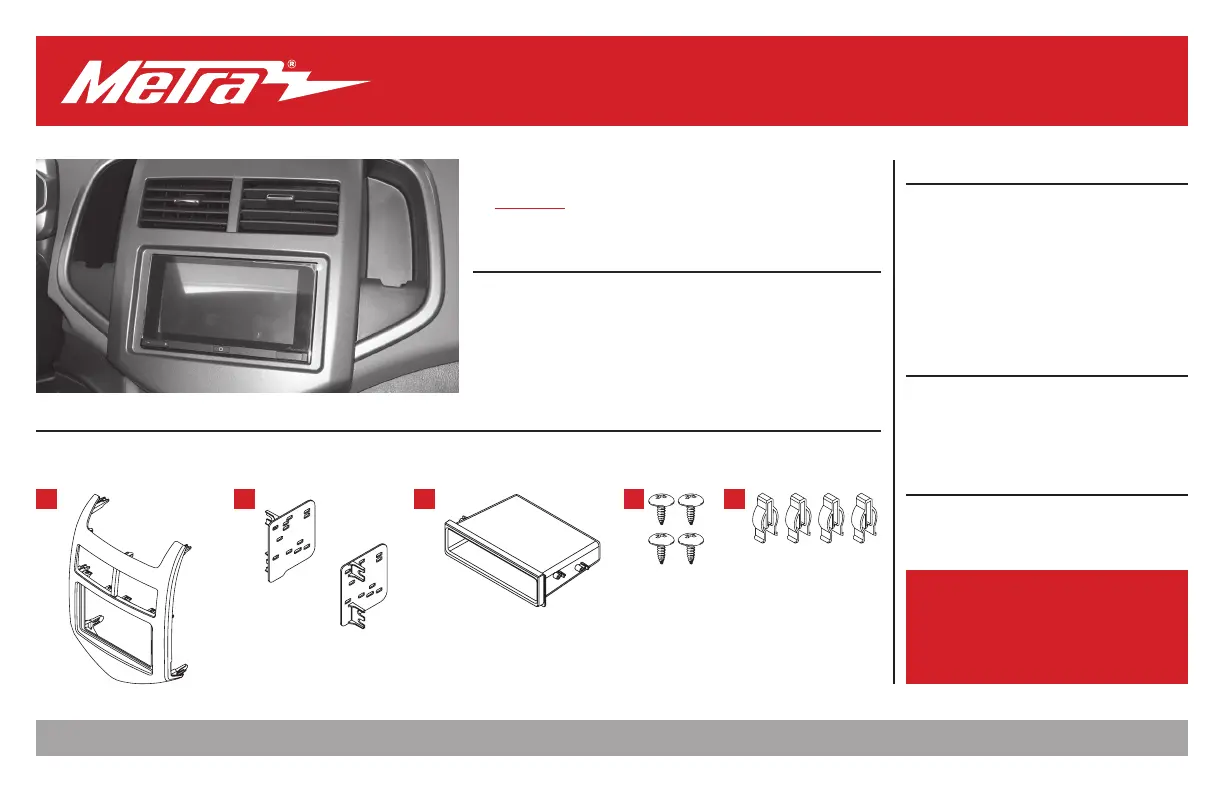

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2022 METRA ELECTRONICS CORPORATION REV. 6/7/22 INST99-3012G
I N S TA L L AT I O N I N S T R U C T I O N S
99-3012G
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted gray to match the factory finish
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) Panel clips • F) Axxess interface and wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
Axxess Interface Installation .................................4
WIRING & ANTENNA CONNECTIONS
Wiring Harness:
Visit metraonline.com for audio/
video and steering wheel control interface options.
Antenna Adapter:
40-EU55
A B C ED
Chevrolet Sonic 2012-2016
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
386.257.1187
|
MetraOnline.com
2
1. Unclip and remove the panel
surrounding the radio/climate controls.
(Figure A)
2. Remove (4) 9/32” screws securing the
radio. Slide the radio out, then unplug
and remove the radio. (Figure B)
Continue to kit preparation
DASH DISASSEMBLY KIT PREPARATION
(Figure A) (Figure A)
(Figure B)
1. Unclip the A/C vents from the factory
radio/climate control panel.
2. Clip the vents into the 99-3012G radio
trim panel. (Figure A)
3. Attach the (4) supplied onto panel clips
the panel.
Continue to kit assembly
REV. 6/7/2022 INST99-3012G 3
KIT ASSEMBLY
(Figure A)
(Figure A)
(Figure B)
ISO DIN radio provision with pocket
1. Secure the radio brackets to the pocket
using the (4) #8 x 3/8” screws provided.
(Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the bracket/pocket
assembly, then secure it using the
screws supplied with the radio.
(Figure B)
Continue to Axxess
Interface Installation
ISO DDIN radio provision
1. Attach the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
Continue to Axxess
Interface Installation
