METRA. The World’s best kits.®metraonline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
REV. 3/23/2020 INST99-3010S-LC

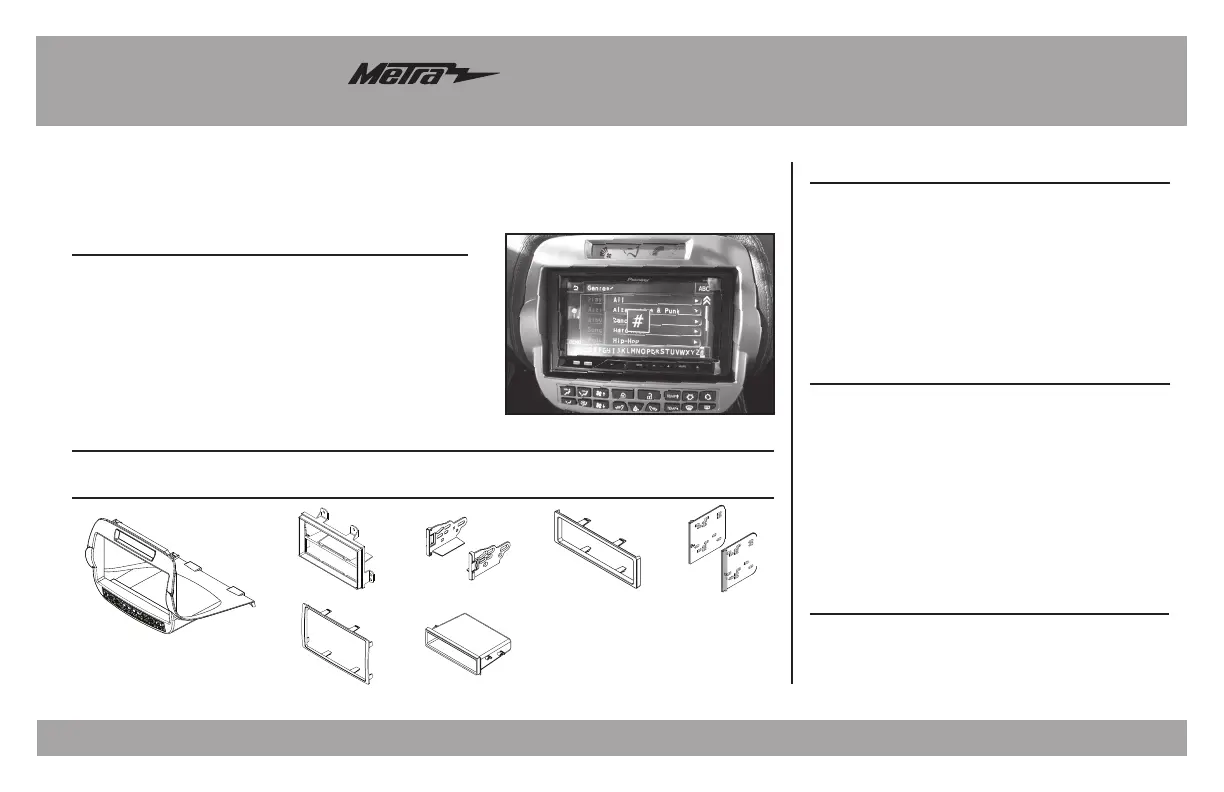

Installation instructions for 99-3010S-LC
®
CAUTION!
All accessories, switches, climate controls panels, and
especially air bag indicator lights must be connected before cycling
the ignition. Also, do not remove the factory radio with the key in the
on position, or while the vehicle is running.
U.S. PATENT # D639,794
• A) Radio trim panel • B) Radio housing • C) ISO brackets • D) ISO trim plate • E) ISO DDIN brackets
• F) ISO DDIN trim plate • G) Pocket • H) Axxess interface and harness (not shown)
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• Axxess interface included
Antenna Adapter:
• 40-EU55
• Panel removal tool • Phillips screwdriver
• 7mm socket wrench • T-20 Torx Wrench • Cutting tool
TOOLS REQUIRED
• DIN radio provision with pocket
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Painted silver to match factory finish
KIT FEATURES
A B C D E
F G
99-3010S-LC
®
Dash Disassembly ........................................... 2-3
Kit Preparation .....................................................3
Kit Assembly
– DIN radio provision with pocket 4 ..........................
– ISO DIN radio provision with pocket 4 ....................
– ISO DDIN radio provision 5 .....................................
Axxess Interface Installation
– Connection to be made 6 .......................................
– Installing the Axxess interface 6 .............................
– Initializing the Axxess interface 6 ...........................
– Vehicle customization with optional AX-LCD 7 ........
– Changing display backlight color 7 .........................
Table of Contents

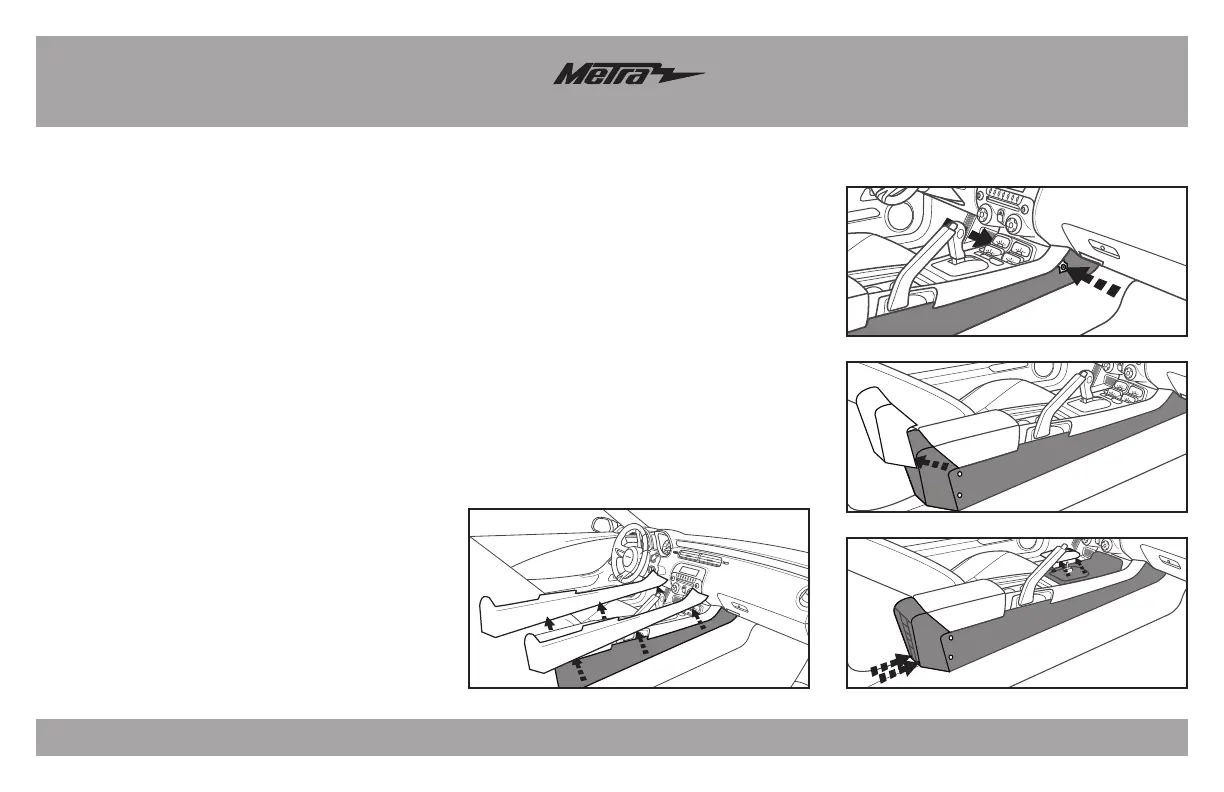

For vehicles without UMQ gauge panel, unsnap
and remove shifter trim panel and skip to step 8
.
1.
Unclip and remove the (2) side trim panels running
the length of the center console. (Figure A)
2. Remove (1) Phillips screw from each side of
the front of the center console. (Figure B)
3. Remove (2) Phillips screws per side from the
cover on the back of the center console then
unclip and remove the cover. (Figure C)
4. Remove (2) Phillips screws exposed under the
cover on the back of console. (Figure D)
5. Remove gauge cluster/trim panel around
shifter. (Figure E)
Continue onto next page
Dash Disassembly
0
30
70 9
12
19
180
200
320
300
30
100
(Figure B)
0
30
70 9
12
19
180
200
320
300
30
100
(Figure C)
2
19
180
3
30
(Figure D)(Figure A)
99-3010S-LC
®
1. Cut and remove the sub dash
radio support to make room for the
interface and harnesses. (Figure A)
2. Remove panel clips from factory
radio and attach to the top of the
kit housing. (Figure B)
Panel clips have been Note:
provided in case the factory clips
have been damaged or missing.
Continue to kit assembly
Kit Preparation
(Figure I)
(Figure A)
(Figure B)
6.
For automatic models, remove one
T-20 Torx screw from the front of the
shifter, and then remove the knob
and shifter surround panel. (Figure F)
7. Remove (4) Phillips screws now
exposed, and then lift up on the
rear of the center console. Slide
toward the back of the vehicle
then unclip and remove the entire
center console. (Figure G)
8. Remove (2) 7mm screws securing
the climate control/radio trim panel
and remove. (Figure H)
9.
Remove (4) 7mm screws securing
the radio chassis, and then remove.
(Figure I)
Continue to kit preparation
0
30
70 9
12
19
180
200
320
30
100
(Figure H)
(Figure G)
(Figure F)
(Figure E)
Dash Disassembly
