Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/14/24 INST99-2023
I N S TA L L AT I O N I N S T R U C T I O N S
99-2023
ATTENTION: With the key out of the
ignition, disconnect the negative battery
terminal before installing this product. Ensure
that all installation connections, especially the
air bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
KIT FEATURES
• ISO DIN Head unit provision with pocket
• DDIN Head unit provisions
• 99-2023B - Painted Black to match factory finish
• 99-2023BR - Painted Brown to match factory finish

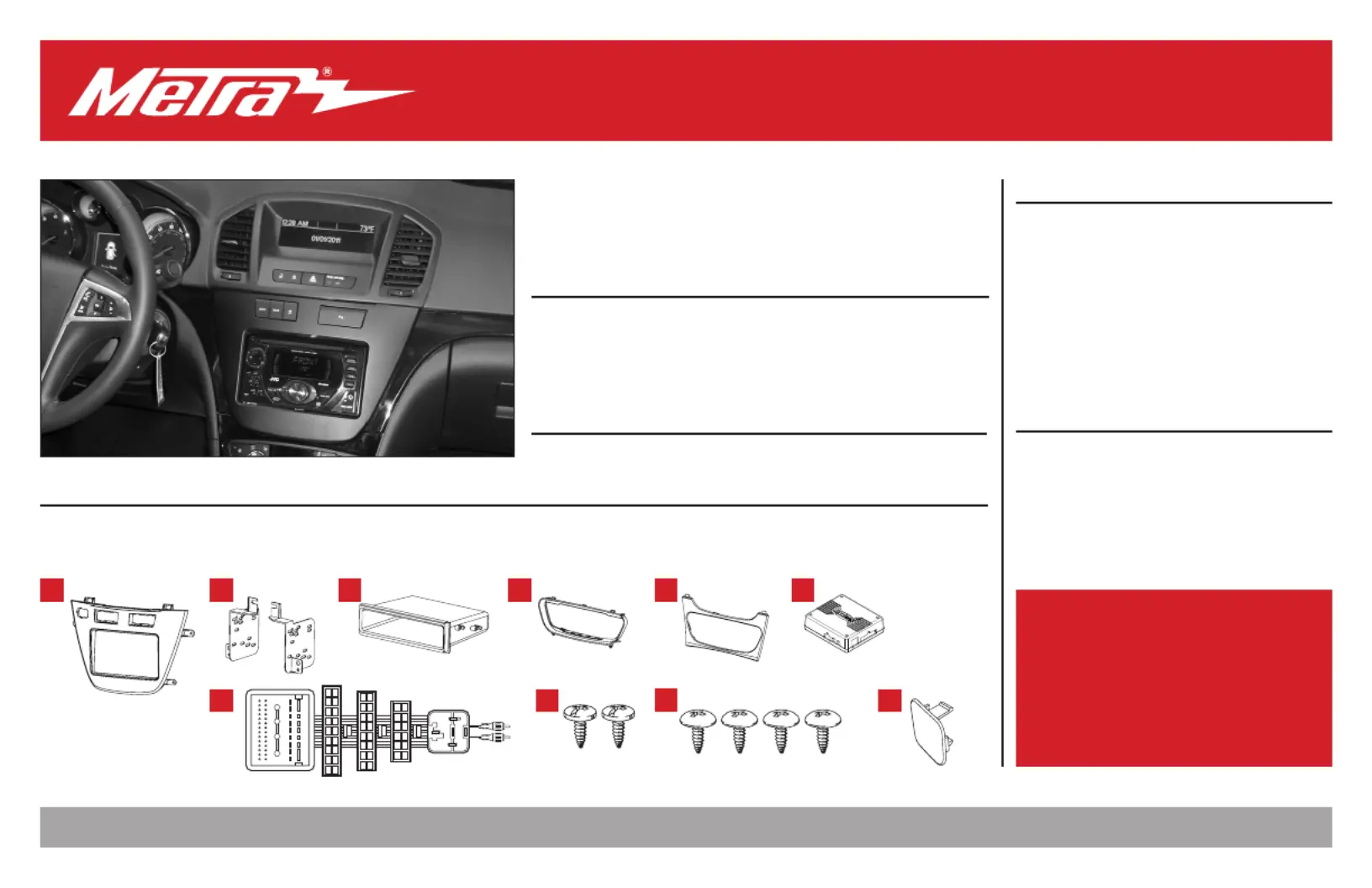

KIT COMPONENTS
• A)Radio Trim Panel • B) Radio Brackets • C) Pocket • D) Climate Control Trim Ring • E) Climate Control Trim Panel • F) Data Interface
• G) Interface Harness • H) (2) #8 x 3/8” Pan-head Phillips screws • I) (4) #8 x 3/8” Truss-head Phillips screws • J) Switch Blank Plate
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver • Socket Wrench
TABLE OF CONTENTS
Dash Disassembly 2 ..................................................
Radio Panel Assembly 3 ...........................................
Climate Control Panel Assembly 3 ..........................
ISO DIN head unit provisions 4 ................................
DDIN head unit provisions 4 ....................................
Axxess interface installation 5-7 ............................
WIRING & ANTENNA CONNECTIONS
Wiring Harness: • Included with kit
Antenna Adapter: • 40-EU55 - amplified antenna
adapter (sold separately)
A B DC
Buick Regal 2011-2012
E F
Visit
MetraOnline.com
for up-to-date vehicle specific applications.
HG IJ
2386.257.1187
|
MetraOnline.com
1. Unsnap and remove the pocket/ashtray
assembly. (Figure A)
2. Unsnap and remove the trim above the
glove box. (Figure B)
3. Unsnap and remove the trim between
the radio and steering wheel. (Figure C)

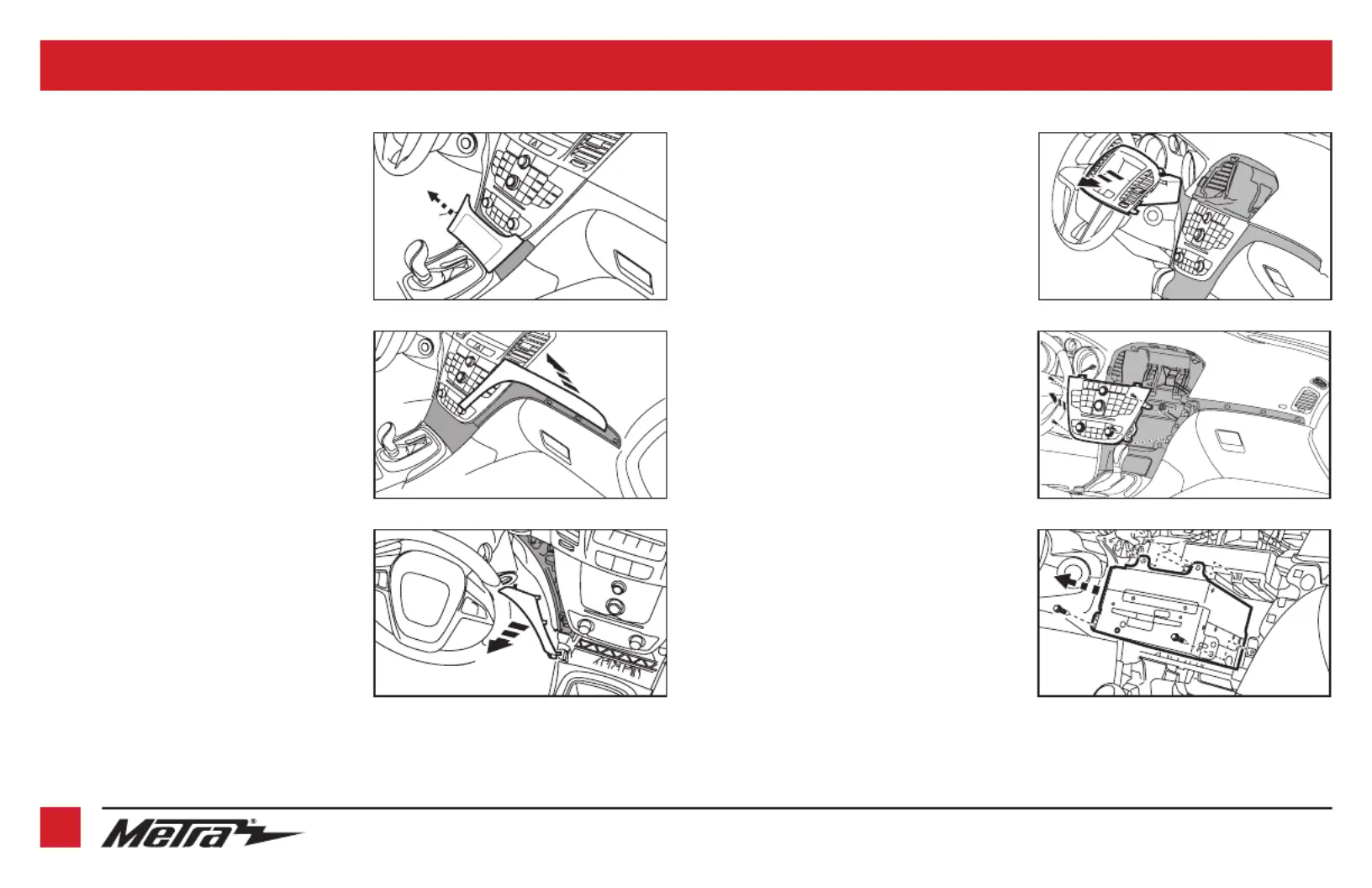

DASH DISASSEMBLY
4. Unsnap and remove the vent/ screen
panel above the radio. (take caution
not to cycle the key with this panel
unplugged) (Figure D)
5. Remove four 7mm screws to remove
radio face and climate controls. (Figure E)
6. Remove four 7mm screws to remove
the radio chassis. (Figure F)
Continue to Kit Assembly
(Figure F)
(Figu
(Figure A)
(Figure B)
(Figure D)
(Figure E)
(Figure C)
REV. 3/14/24 INST99-2023 3
RADIO PANEL ASSEMBLY
1. Unsnap the climate controls, traction
control switch, park assist switch and
start/stop switch (if equipped) from the
factory radio panel. (Figure A)
2.
Snap the switches into the Metra kit panel.
If no start/stop switch is present Note:
use the supplied switch blank plate.
Climate Controls
Parking Assist switch Traction Control switch Start/Stop switch

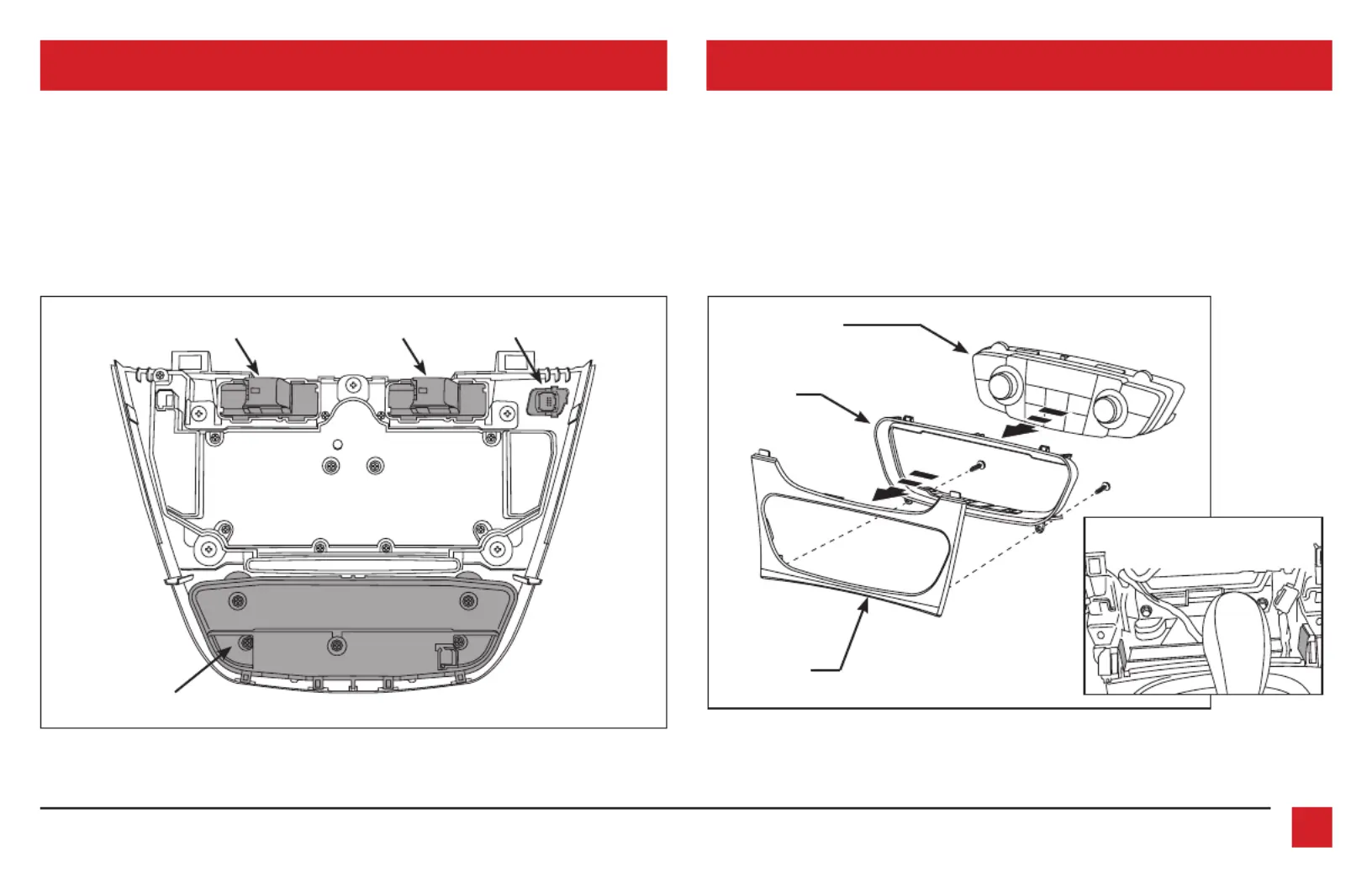

CLIMATE CONTROL PANEL ASSEMBLY
3. Snap the climate control in the climate
control panel.
Minor sub dash modification may Note:
be necessary to allow for clearance of the
climate control (See inset). (Figure B)
Shaded areas indicated may need
minor clearancing.
Climate control
trim ring
Climate controls
Climate control
trim panel
(Figure A)
(Figure B)
