Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 7/15/19 INST95-7510
I N S TA L L AT I O N I N S T R U C T I O N S
95-7510
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.

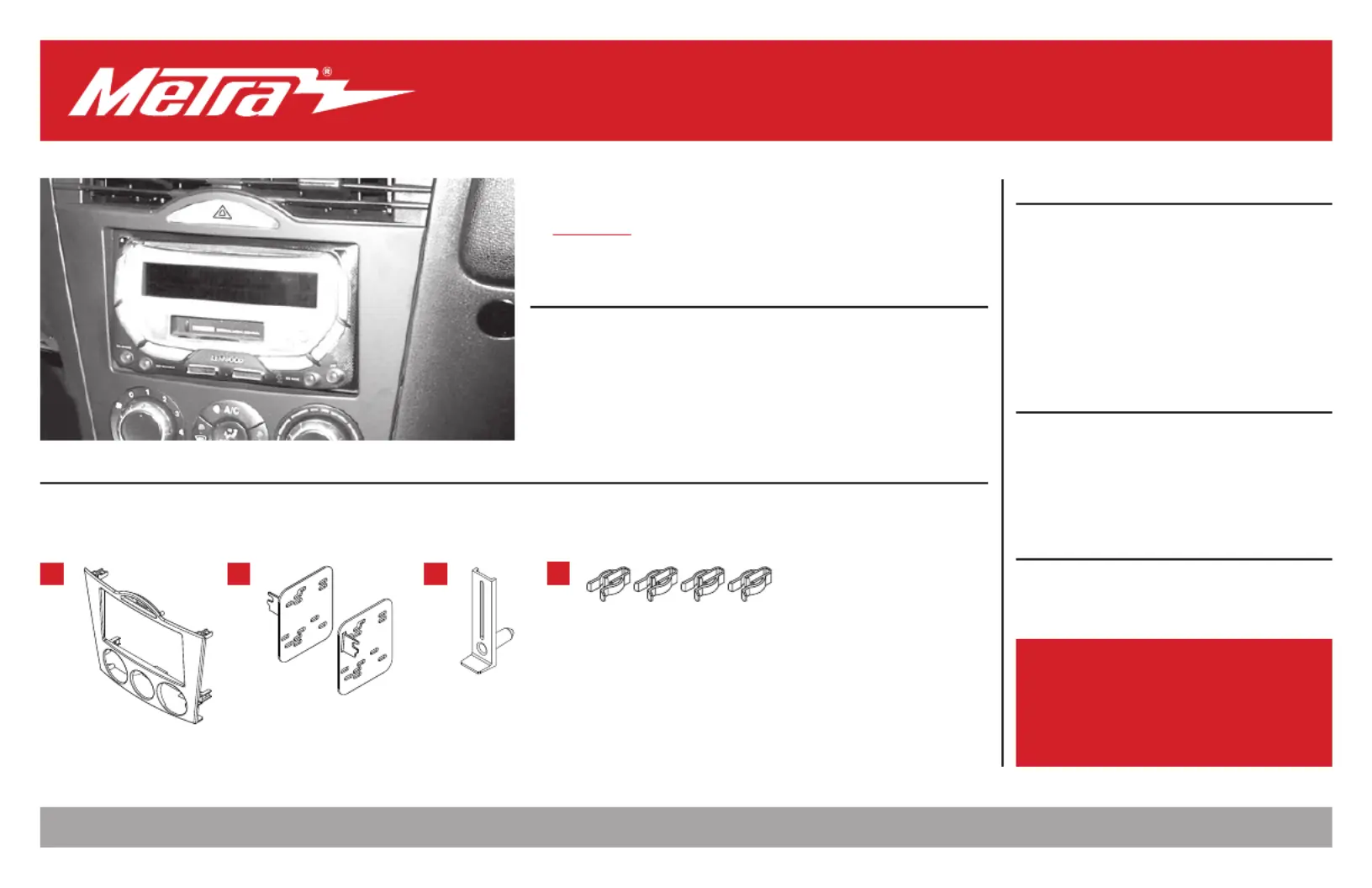

KIT FEATURES
• ISO DDIN radio provision
• Two finishes available:
95-7510 = Black,
95-7510HG = Gloss Black
KIT COMPONENTS
• A) Radio/Climate control housing • B) Radio brackets • C) Rear support • D) (4) Plastic panel clips • E) Axxess Interface and wiring harness (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 10mm socket wrench • Cutting tool
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation ................................................... 3-4
Kit Assembly ..........................................................4
Axxess Interface Installation ............................. 5-6
Display Customization ........................................7-8
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface and
wiring harness included
Antenna Adapter: Not required
Mazda RX-8 2004-2008
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
A B C D
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY

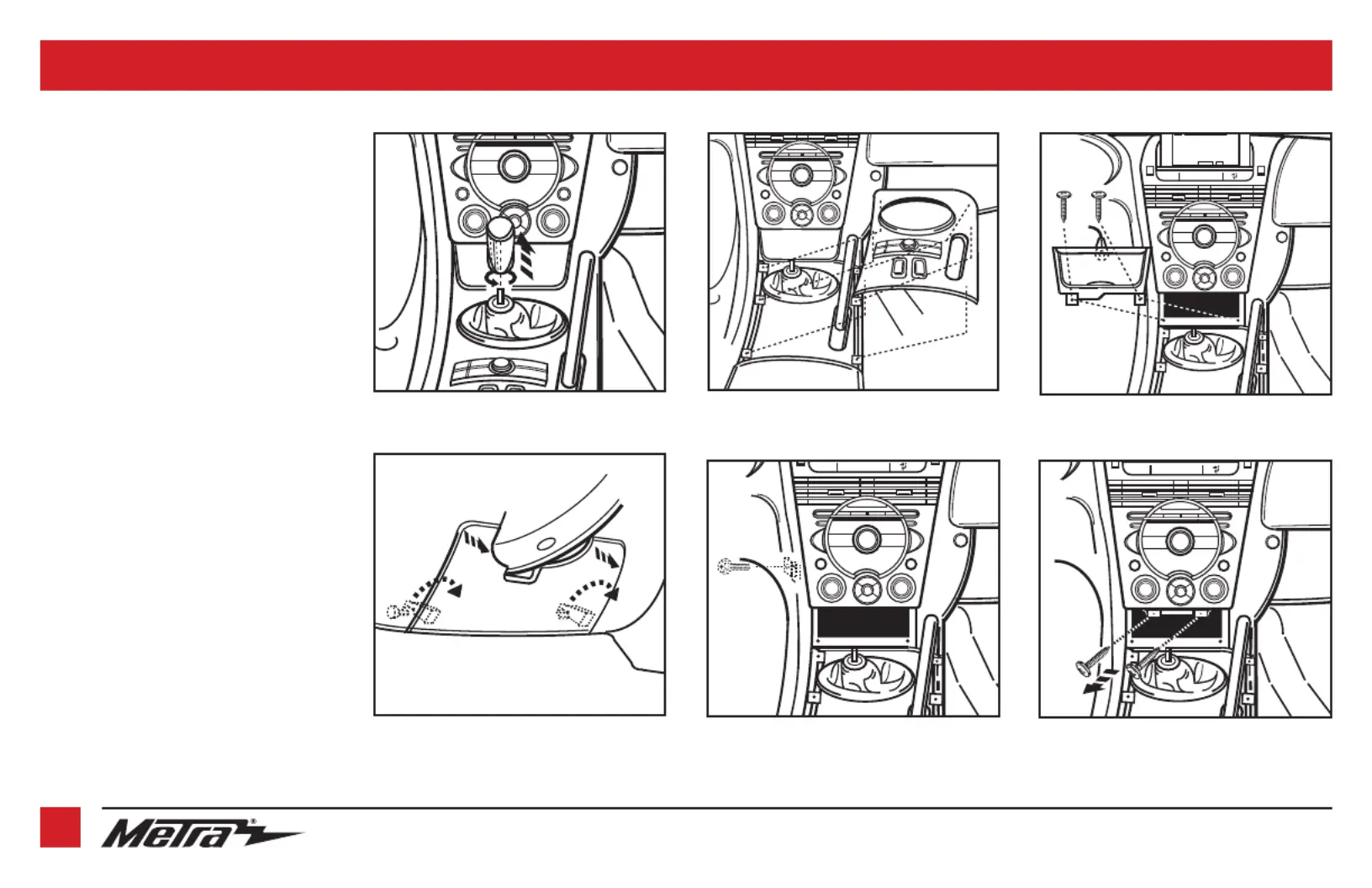

1. Unscrew the shift knob counter
clockwise to remove. (Figure A)
2. Unclip and remove the shifter trim
panel. (Figure B)
3. Remove (2) Phillips screws from the
bottom of the ashtray assembly then
unclip and remove the assembly.
(Figure C)
4. Unclip and remove the knee panel on
the driver’s side under the steering
column (Figure D)
5. Remove (1) 10mm bolt securing the side
of the radio. (Figure E)
6. Remove (2) Phillips screws from the
bottom of the radio/climate control panel,
then unsnap and remove. (Figure F)
7.
Unclip the radio/climate control panel.
Slide the panel out, then unplug and
remove the panel.
Continue to Kit Preparation
FM1 877 AC
FM1 877 AC
(Figure A)
(Figure D)
(Figure C)
(Figure E)
(Figure B)
(Figure F)
FM1 877 AC
REV. 7/15/2019 INST95-7510 3
KIT PREPARATION

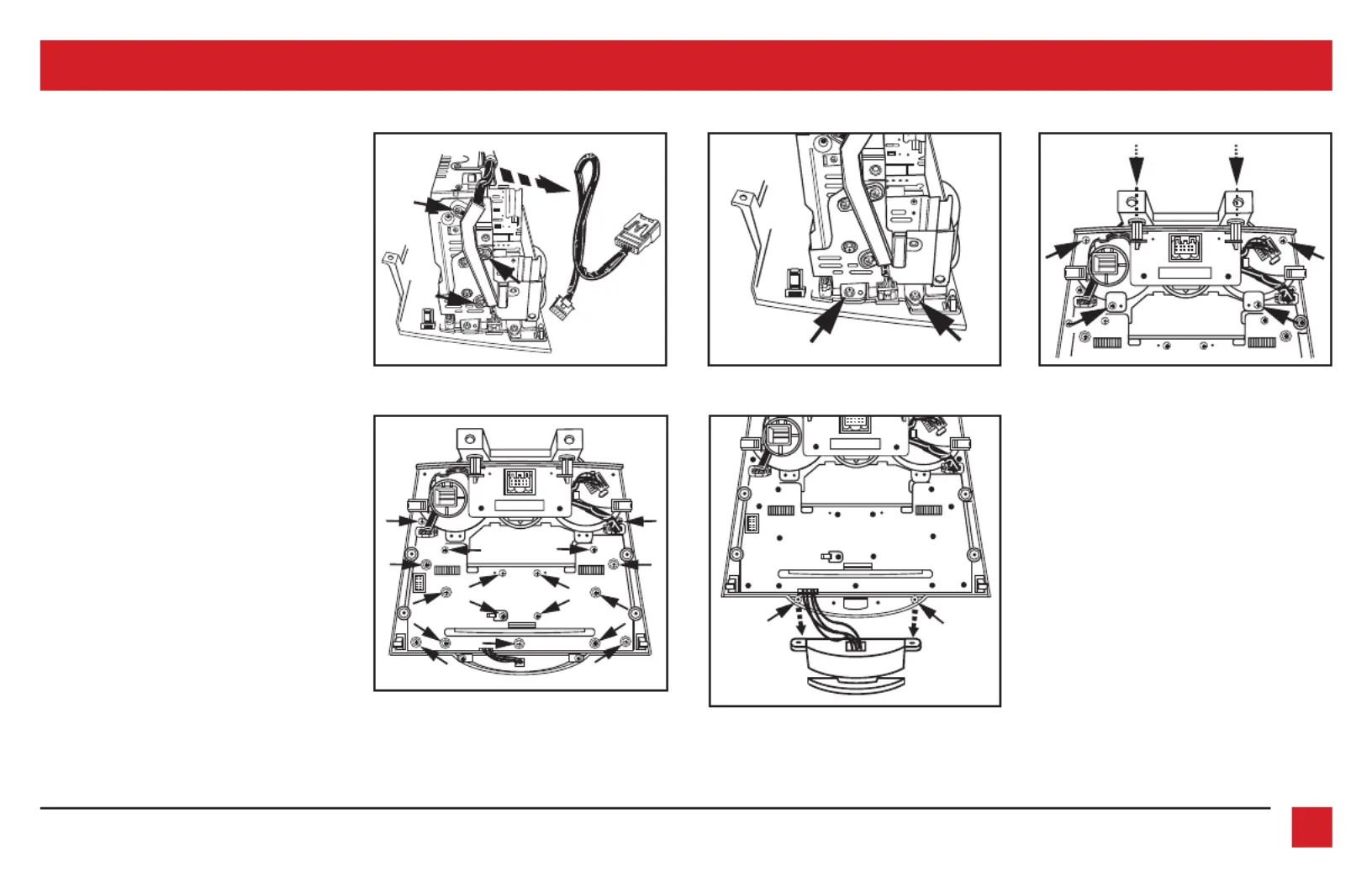

From the factory radio/climate control panel:
1. Remove (3) screws securing the display
harness. This harness will be reused in Kit
Assembly. (Figure A)
2. Remove (4) screws securing the radio
chassis, then remove. (Figure B)
3. Remove (6) screws securing the climate
controls, then remove. The controls and
hardware will be reused in Kit Assembly.
(Figure C)
4. Remove (17) screws securing the circuit
board to access the hazard switch
assembly. (Figure D)
5. Remove (2) screws securing the hazard
switch assembly. Carefully pull and
release the hazard switch button from the
assembly to fully remove the complete
assembly. The switch and hardware will
be reused in Kit Assembly. (Figure E)
Continued on the next page
(Figure A) (Figure C)
(Figure E)
(Figure D)
REMOVE (2) SCREWS PER SIDE
(Figure B)
