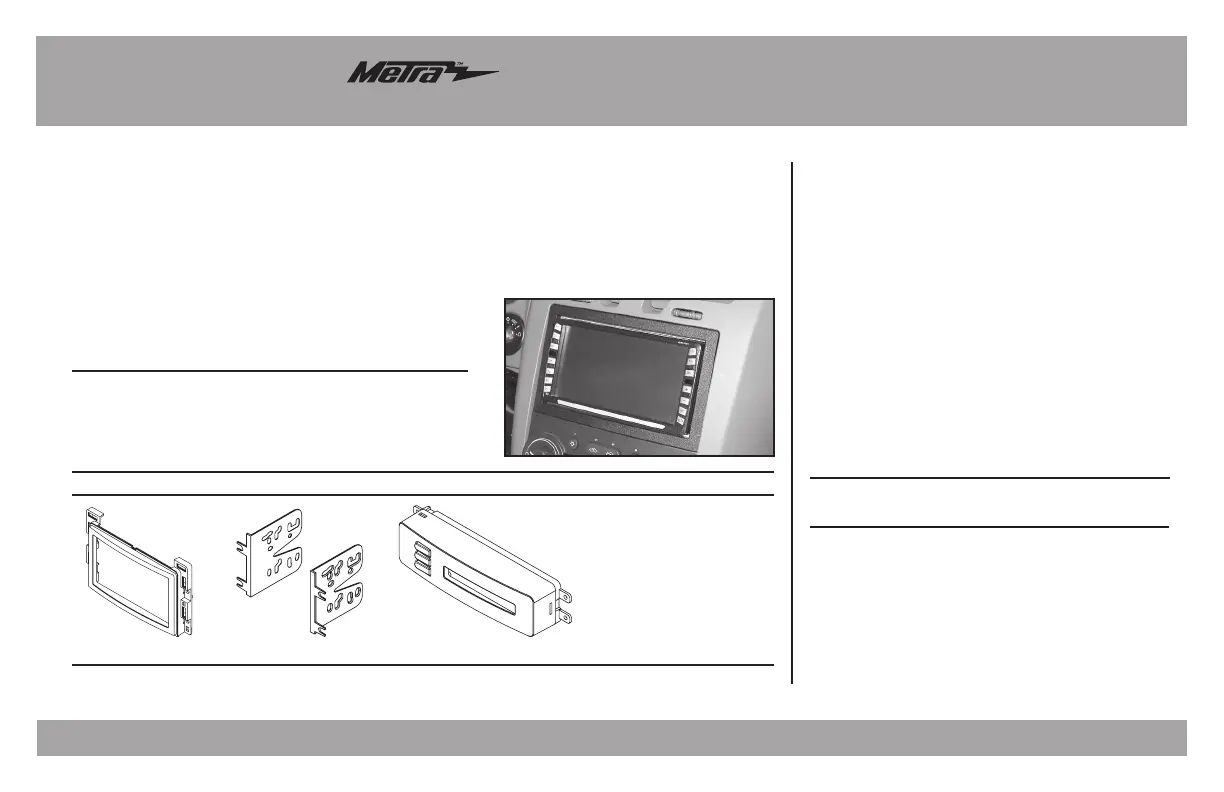

APPLICATIONS
METRA. The World’s best kits.™metraonline.com1-800-221-0932 © COPYRIGHT 2015 METRA ELECTRONICS CORPORATION
REV. 3/10/2015 INST95-3303B
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
Table of Contents
INSTALLATION INSTRUCTIONS FOR PART 95-3303B
• Double DIN radio provision
• Painted matte black
• A) Radio Housing • B) Brackets • C) Display Pod • D) Harness (not shown)
KIT FEATURES
KIT COMPONENTS
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included
Antenna Adapter: • 40-GM10 - GM antenna adapter 1988-up
• Panel removal tool • Phillips screwdriver
• Socket Wrench
TOOLS REQUIRED
A B C
Dash Disassembly
– ............................. Chevrolet Malibu 2004-2007 2-3
– Chevrolet Malibu Classic 2008 ..........................2-3
– Chevrolet Cobalt* 2005-2006 ............................... 4
– Pontiac G6** 2006-2009 ...................................... 5
Kit Assembly
– Double DIN radio provision ................................6-7
*This kit is only needed for OnStar retention.
**In 2009, only use this kit for models where the
5th digit of the VIN is a G, H or M.
95-3303B
Chevrolet Malibu 2004-2007,
Chevrolet Malibu Classic 2008

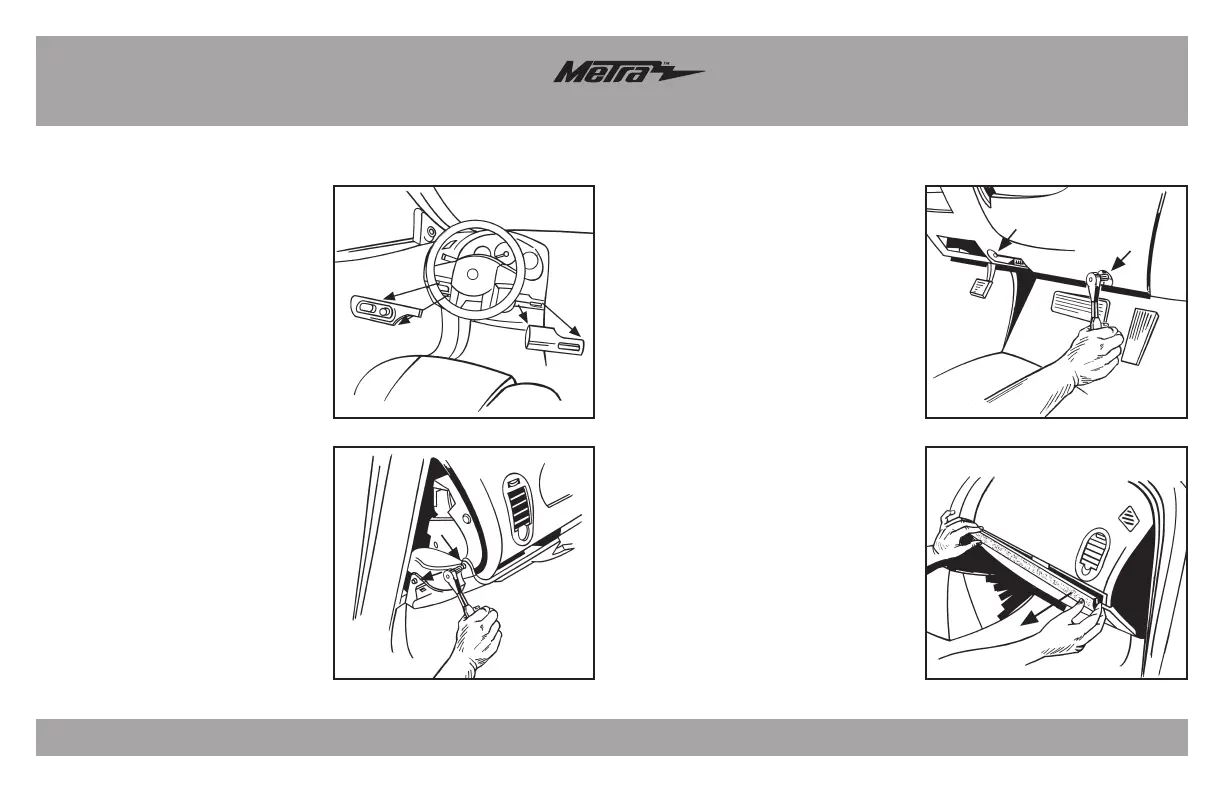

1. Unclip and remove wood grain/
painted trim pieces from both
sides of steering wheel. (Figure A)
2. Unclip and remove side panel
from driver’s side of dash with
door open and remove (2) 7 mm
screws. (Figure B)
3. Remove (2) 7 mm screws from
bottom edge of panel below
steering wheel. Unclip panel and
let hang. It is not necessary to
completely remove panel.
(Figure C)
4. Unclip and remove wood grain/
painted trim pieces from above
glove box. (Figure D)
Continued on next page
Dash Disassembly
(Figure A) (Figure C)
(Figure B) (Figure D)
95-3303B
(Figure E) (Figure G)
(Figure F) (Figure H)
Chevrolet Malibu 2004-2007,
Chevrolet Malibu Classic 2008 cont.
5. Unclip and remove side panel from
passenger side of dash with door
open and remove (2) 7 mm screws
from behind panel. (Figure E)
6. Remove (2) 7 mm screws from
bottom of glove box then open
box and squeeze sides together
to open further and remove the
remaining (4) 7 mm screws.
Unclip the black vent cover under
the glove box then unclip and
remove entire glove box assembly.
(Figure F)
7. Unclip and remove trim panel
surrounding radio and climate
controls. (Figure G)
8. Remove (4) 7 mm screws from the
radio and (2) 7 mm screws from
climate control to remove radio.
(Figure H)
Continue to kit assembly
Dash Disassembly
