The World’s best kits.®MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/8/22 INST108-FD5CH
I N S TA L L AT I O N I N S T R U C T I O N S
108-FD5CH
Patent # 10,579,232
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Included interface for climate and steering wheel functions
• Integrated passenger airbag indicator
• Touchscreen display for climate and personalization features
• Painted charcoal

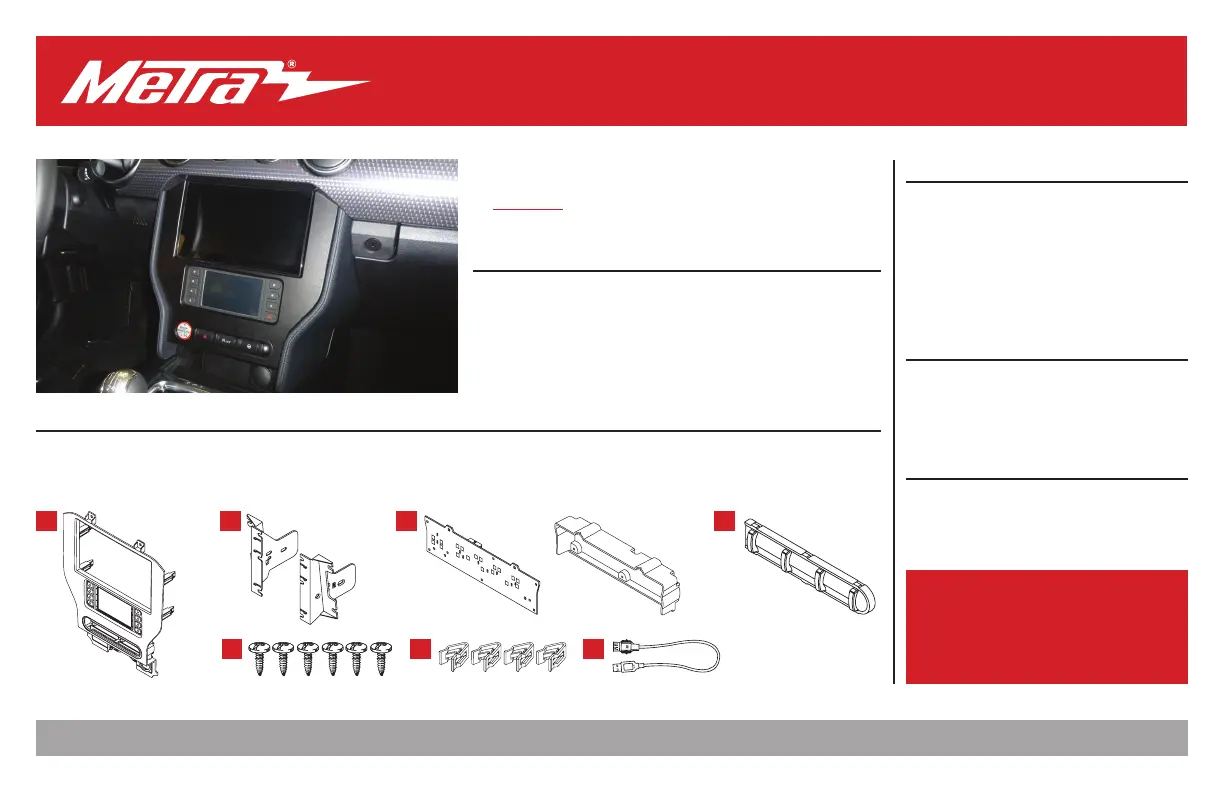

KIT COMPONENTS
• A) Radio trim panel (with touchscreen display) • B) Radio brackets • C) Engine start/stop circuit board and cover
• D) Engine start/stop trim
• E) (6) Phillips screws
• F) (4) Panel clips • G) USB cable • H) HVAC interface and wiring harness (not shown) • I) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • Cutting tool
• Torx T-10 screwdriver
TABLE OF CONTENTS
Dash Disassembly ..............................................2-4
Kit Preparation ....................................................5-7
Kit Assembly ..........................................................8
Axxess Interface installation ............................9-17
Final Assembly ......................................................13
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Ford Mustang (with 4.2” screen) 2015-Up
A B
E
C D
F G
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
386.257.1187
|
MetraOnline.com

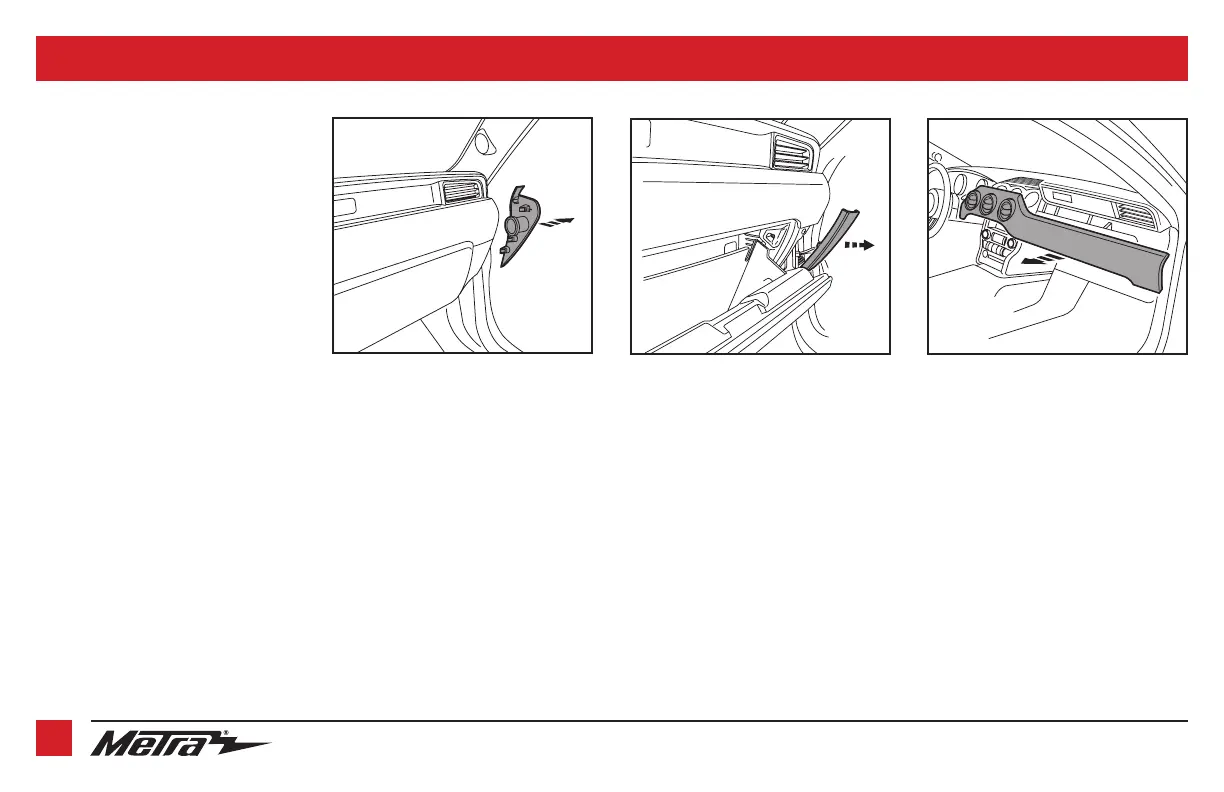

1. Open the passenger door and remove
the trim panel from the side of the dash.
(Figure A)
2. Open the glove box and remove the trim
panel on the right side. (Figure B)
3. Unclip and remove the trim/vent dash
panel. (Figure C)
Continued on the next page
(Figure B)(Figure A) (Figure C)
DASH DISASSEMBLY
2
REV. 12/8/2022 INST108-FD5CH
DASH DISASSEMBLY (CONT.)
3
(Figure F)
(Figure D) (Figure E)
4. Remove the rubber tray cover in front
of the shifter, and then remove the (2)
9/32” screws exposed. (Figure D)
5. Unclip and remove the front side panels
from each side of the center console.
(Figure E)
6. Remove the (2) 9/32” screws from each
side of the center console. (Figure F)
Continued on the next page
