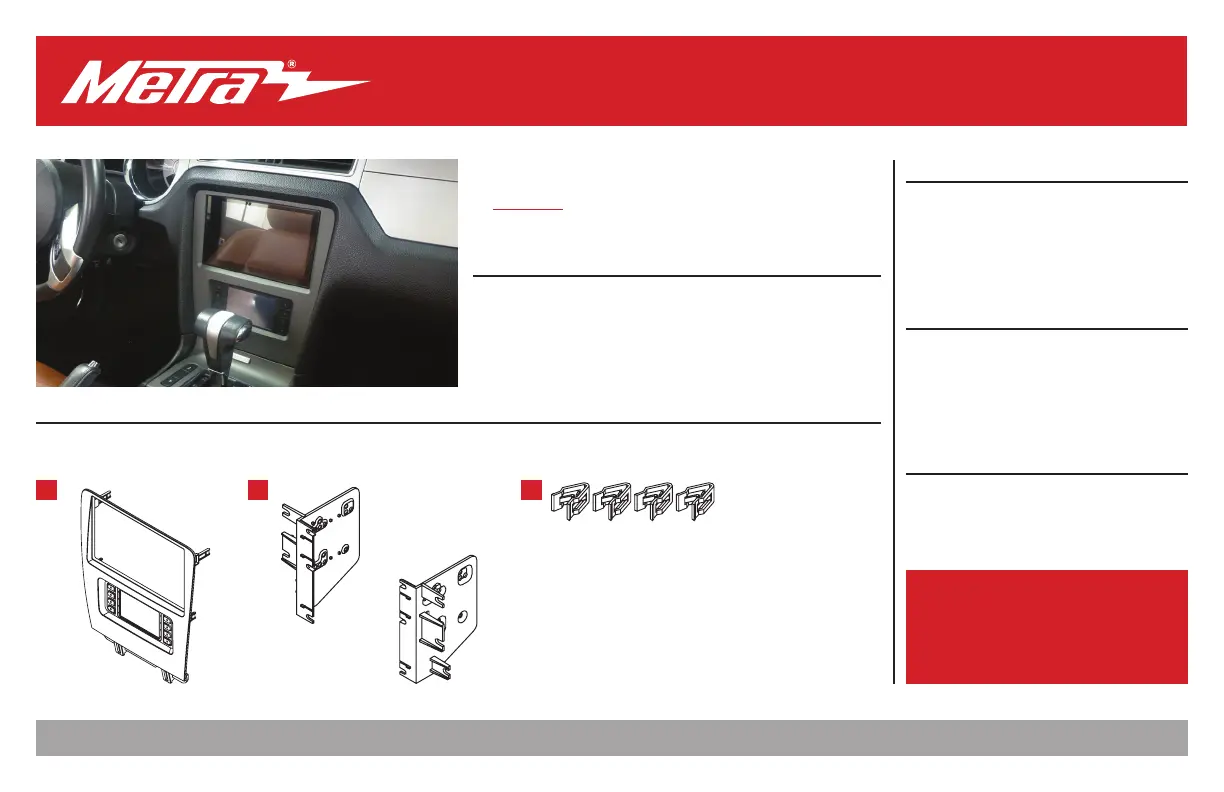

I N S TA L L AT I O N I N S T R U C T I O N S
108-FD4CH
Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 12/8/22 INST108-FD4CH
Patent # 10,579,232
Attention! With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections are secure before
cycling the ignition to test this product.
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Included interface for climate and steering wheel functions
• Touchscreen interface for climate, audio interfacing, and personalization features
• Painted charcoal to match the factory finish
KIT COMPONENTS
• A) Radio trim panel with touchscreen display • B) Radio brackets
• C) Panel clips (4) • D) Antenna adapter (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
Axxess Interface Installation ............................4-13
Final Assembly .......................................................8
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Steering wheel control interface: Included with kit
A B C
Ford Mustang 2010-2014
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Unclip and remove the trim panel
surrounding the shifter, including the
cup holders. (Figure A)
2. Remove (2) 9/32” screws from the
bottom of the radio/climate control
panel, then unclip and remove the
panel. (Figure B)
(Figure C)
(Figure D)
(Figure B)
(Figure A)
3. Remove (4) Phillips screws securing the
radio chassis to the vehicle. Slide the
chassis out, then unplug and remove.
(Figure C)
4. Remove (4) Phillips screws securing the
radio display to the vehicle. Slide the
display out, then unplug and remove.
(Figure D)
Continue to Kit Assembly
3
REV. 12/8/2022 INST108-FD4CH
KIT ASSEMBLY
(Figure A) (Figure B)
Note: For steps 1 and 2, reference the
installation manual provided with the radio
for which hardware to use. The display
screen and radio chassis use two different
types of screws.
1. Secure the radio brackets to the radio
chassis using (4) screws supplied with
the radio. (Figure A)
2. Secure the radio display to the radio
brackets using (4) screws supplied with
the radio. (Figure B)
Continue to Axxess
Interface Installation
