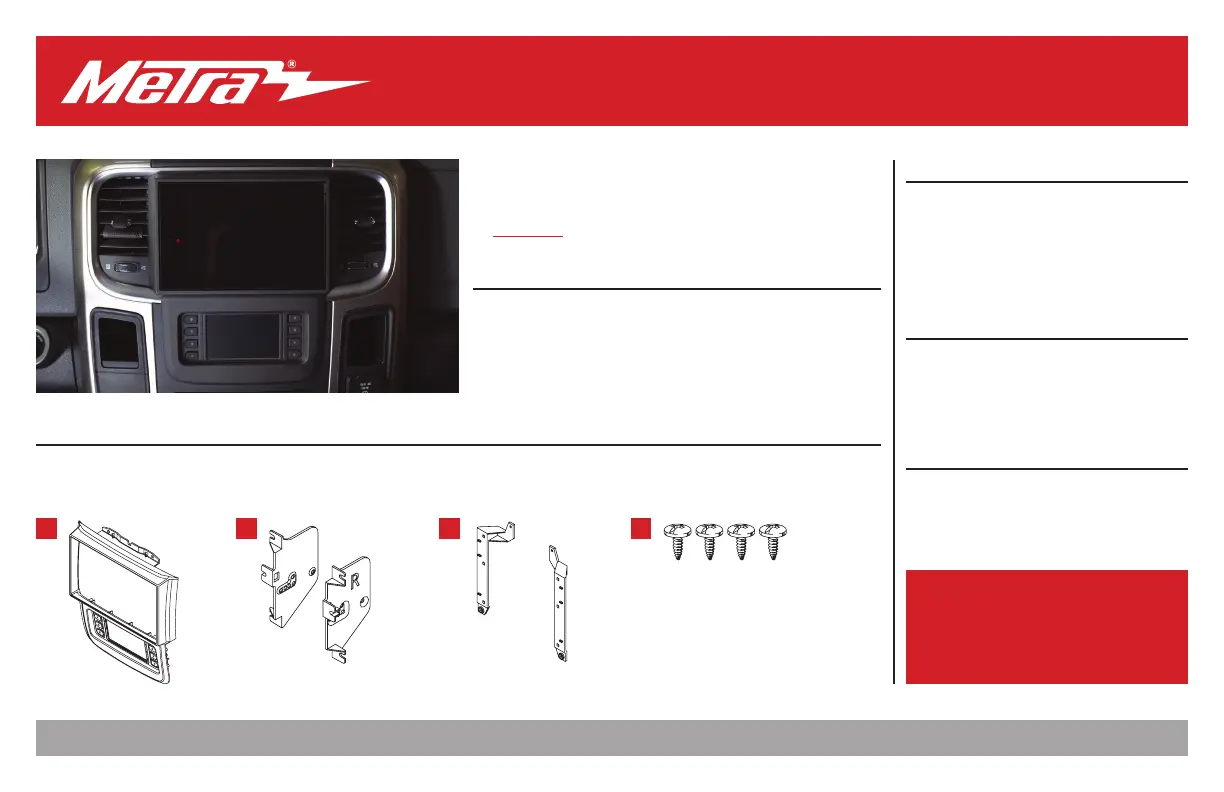

Metra. The World’s Best Kits.®MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. /8/2 INST108-CH2B12 2
I N S TA L L AT I O N I N S T R U C T I O N S
108-CH2B
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
Patent # 10,579,232
KIT COMPONENTS
• A) Radio trim panel (with touchscreen display) • B) Radio chassis brackets • C) Radio display screen brackets • D) Phillips screws (4)
• E) Antenna adapter (not shown)
KIT FEATURES
• Designed specifically for the Pioneer DMH-C5500NEX 8-inch radio
• Included interface for climate and steering wheel functions
•
Touchscreen display for climate, audio interfacing, and personalization features
• Painted black
Note: Reference the Troubleshooting section for factory items known to
be no longer functional.
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• 9/32” socket wrench • T-20 Torx driver
TABLE OF CONTENTS
Dash Disassembly ...............................................2-3
Kit Assembly ......................................................4-5
Axxess Interface Installation ............................6-16
Final Assembly ...................................................... 11
WIRING & ANTENNA CONNECTIONS
Wiring Harness: Axxess interface built
into touchscreen
Antenna Adapter: Included with kit
Ram 1500/2500/3500, Chassis Cab 3500 /
4500 / 5500 (with 5” or 8” touchscreen) 2013-2017
A B C D
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specic applications
386.257.1187
|
MetraOnline.com

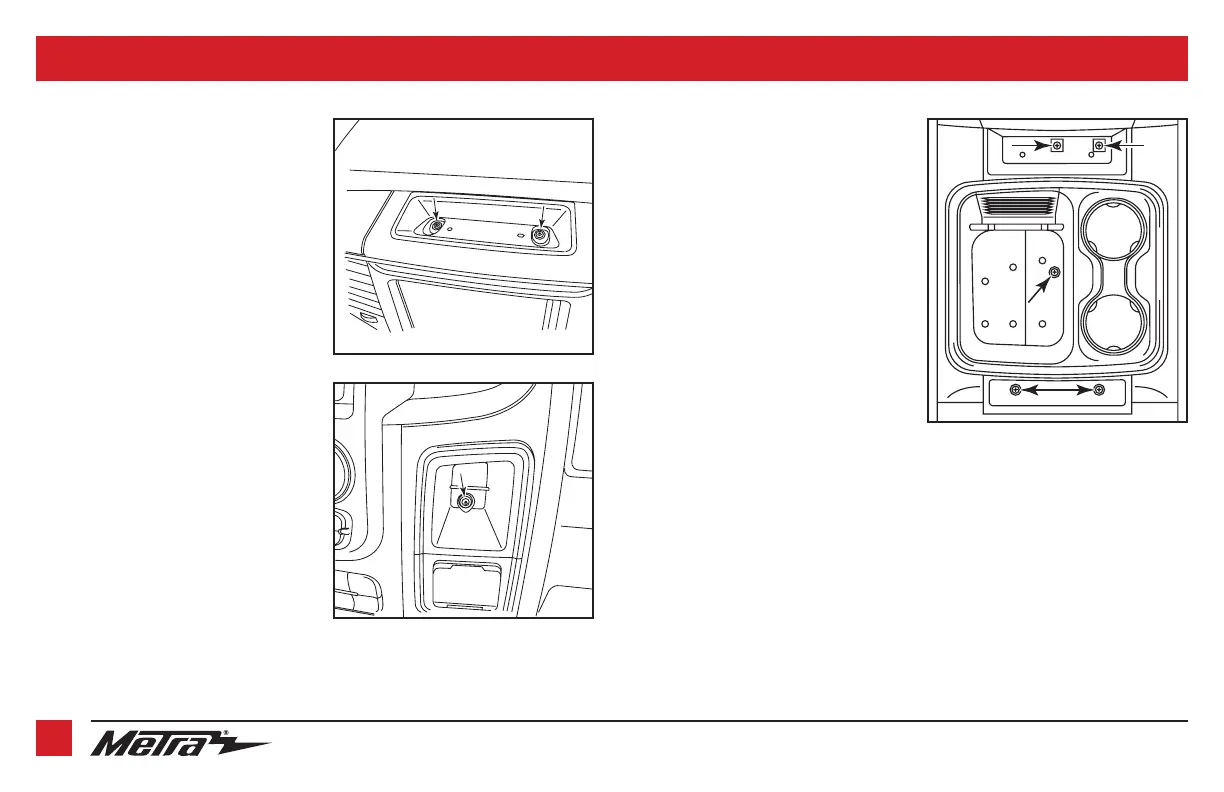

DASH DISASSEMBLY
2
1. Remove the rubber tray liner inside the
tray at the top center of the dash, then
remove (2) Torx T-20 screws exposed.
(Figure A)
2. Remove the rubber tray liner from inside
the small pocket on the passenger side
of the center dash panel, then remove
(1) Torx T-20 screw exposed. (Figure B)
(Figure C)
3. For models with a center console:
a. Remove the rubber liner from the
storage tray in front of the center
console, then remove (2) Phillips
screws exposed. (Figure C)
b. Remove the rubber liner from the
middle of the center console, then
remove (1) Phillips screw exposed.
(Figure C)
c. Models with a column shifter:
Remove the rubber liner from the
rear of the center console, then
remove (2) Phillips screws exposed.
(Figure C)
d. Models with a console shifter:
Pull down on the chrome shifter
trim, then pull up on the shifter
to remove it.
e. Models with a console shifter:
Remove the rubber liner from the
cupholders, then remove (2) 9/32”
screws exposed.
Continued on the next page
(Figure B)
(Figure A)
REV. 1 /8/202 INST108-CH2B2 2
3
DASH DISASSEMBLY (CONT.)
3
4. Unsnap and remove the entire center
dash panel. (Figure D)
5. Remove (4) 9/32” screws securing the
radio/display screen. Slide the screen
out, then unplug & remove. (Figure E)
6. The factory rear support will need to be
cut or removed to allow space for the
aftermarket radio. Different variations
of this support may require additional
cutting. (Figure F)
Continue to Kit Assembly
(Figure D) (Figure E) (Figure F)
Remove shaded area
