User Manual
Broadcast Stereo Headset with Dynamic Boom Microphone /
Broadcast Stereo Headset with Condenser Boom Microphone /
Single-Ear Broadcast Headset with Dynamic Boom Microphone
BPHS2a/BPHS2Ca/BPHS2Sa

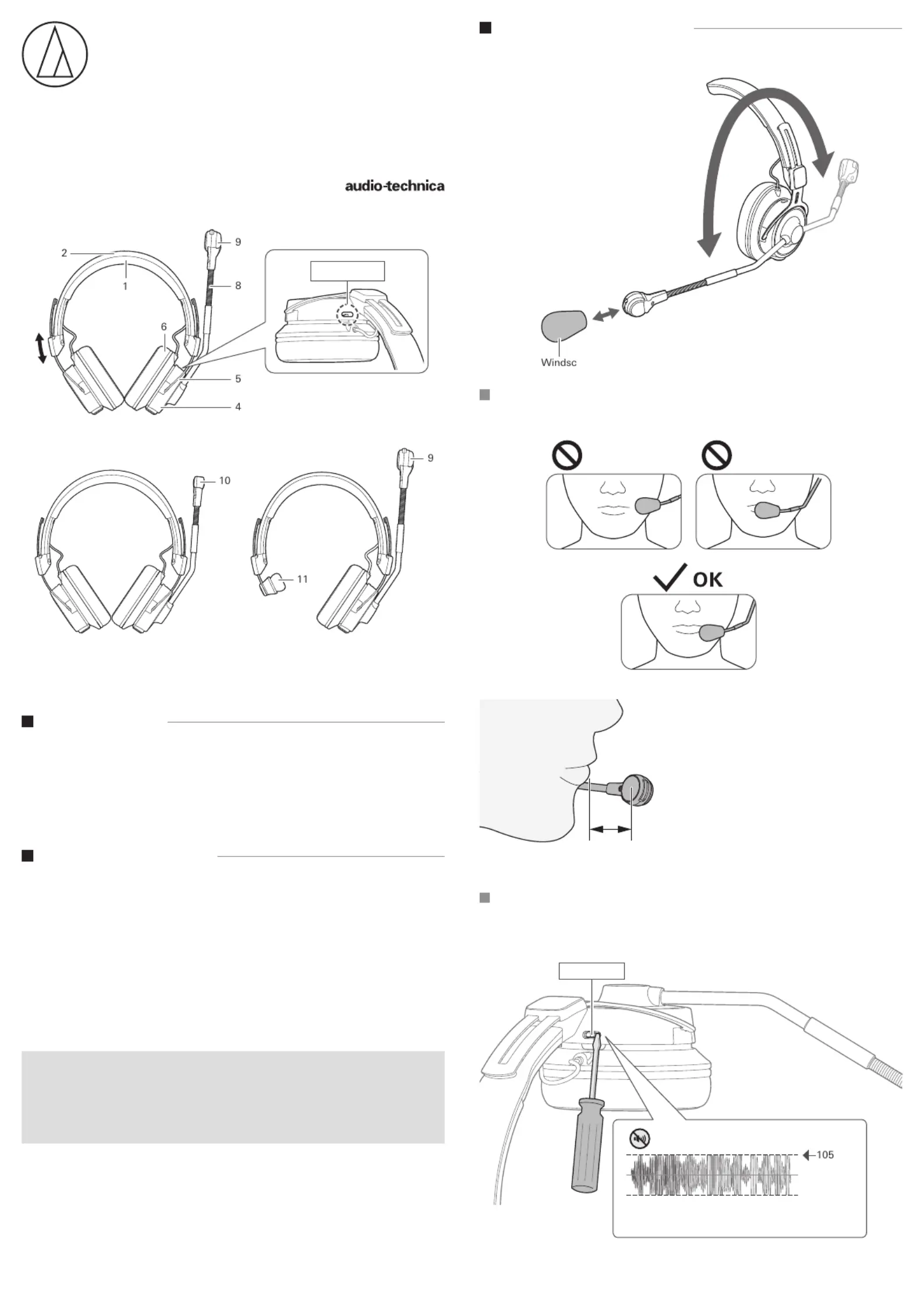

Part names
Refer to the figures and confirm the parts of the headphones before use.
1 Head pad
2 Headband
3 Slider
4 Housing
5 Arm
6 Earpad
7 Gooseneck
8 Dynamic boom microphone
9 Condenser boom microphone
10 Temple pad
Cleaning the product
Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not
use alcohol, paint thinners or other solvents for cleaning purposes.
• To clean, wipe the main unit with a dry cloth.
• Wipe away perspiration and any other dirt from the cable with a dry cloth immediately after
use. Failure to clean the cable may cause it to deteriorate and harden over time, resulting in
malfunction.
• Wipe the plug with a dry cloth if dirty. Failure to clean the plug may cause the sound to cut out and
may cause noise.
• Wipe the earpads and head pad with a dry cloth if dirty. Perspiration or water on the earpads or
head pad may cause discoloration. Wipe with a dry cloth and allow to dry in the shade.
•If the product will not be used for an extended period of time, store it in a well-ventilated place
free from high temperatures and humidity.
•The earpads, head pad, and temple pad are consumable items. They will deteriorate over time
due to use and storage, so replace them when necessary. For information about replacing
earpads, head pad, or other parts, or for information about other serviceable parts, contact your
local Audio-Technica dealer.
BPHS2a
BPHS2Ca BPHS2Sa
Using the product
You can use the microphone on the left or right side of your face by rotating the microphone boom
as shown in the figure.
Positioning the microphone boom
Use the microphone boom and gooseneck to place the microphone in the correct position.
Position the microphone boom so that the
microphone is about 20 mm (0.79”) from the tip of
your mouth. Positioning the microphone directly in
front of your mouth will cause popping and other
noise from breathing.
6
3
0
20 mm
(0.79”)
W screen
Connecting the product
Connect cables such as BPCB2 (included) or BPCB3 (sold separately) to the connector jack of the
product.
BPCB2
Cable for BPHS2 (all models) with a TA6F connector at one end and 3-pin XLRM connector and 6.3
mm (1/4") plug at the other.
Function TA6F 3-pin XLRM 6.3 mm (1/4") plug
Microphone
MIC + PIN 5 PIN 2 HOT -
MIC – PIN 6 PIN 3 COLD -
SHIELD PIN 1 PIN1 GND -
Headphones
SPEAKER − PIN 2 - SLEEVE
SPEAKER R+ PIN 4 - RING
SPEAKER L+ PIN 3 - TIP
BPCB3
Cable for BPHS2 (all models) with a TA6F connector at one end and unterminated connector at the
other.
Function TA6F Unterminated
Microphone
MIC + PIN 5 RED
MIC – PIN 6 YELLOW
SHIELD PIN 1 COPPER
Headphones
SPEAKER − PIN 2 BLACK
SPEAKER R+ PIN 4 RED
SPEAKER L+ PIN 3 GREEN
About Hearing Damage
WARNING!
USE AS LOW A VOLUME AS POSSIBLE. PERMANENT HEARING DAMAGE CAN RESULT FROM
USING THIS PRODUCT AT EXCESSIVE VOLUMES.
For safe operation of this product, do not listen at excessive sound pressure levels.
Most national safety and health administrations have established guidelines for maximum time being
exposed to sound pressure levels before hearing damage occurs.
Sound pressure levels (SPL) Maximum time being exposed
85dB (A) SPL 8 hours
88dB (A) SPL 4 hours
91dB (A) SPL 2 hours
94dB (A) SPL 1 hour
97dB (A) SPL 30 minutes
100dB (A) SPL 15 minutes
120dB (A) SPL avoid or hearing damage may occur
To protect your ears from hearing damage:
• Use the product at the lowest volume possible; turn up the volume only enough to hear.
• Be aware that ringing in your ears may indicate that the volume is set too high.
• Have your ears examined regularly by an audiologist.
• If wax builds up in your ears, stop using the product until you have seen an audiologist.
• Stop using the product if you experience ear discomfort or infection.
BPCB2 BPCB3
while pressing
the button to
disconnect the
cable.
3-pin XLRM
XLRM
6. ug
SLEE
TA6F
TA6F
Polar pattern/frequency response
BPHS2a/BPHS2Sa
• During a wired connection with the product. Performance varies depending on the device used.
BPHS2Ca
• During a wired connection with the product. Performance varies depending on the device used.
90°
120°
150°
180°
210°
240°
270°
300°
330°
60°
30°
0°
10dB
50
20k
(Hz)
10k5k2k1k500200100
10dB
50
20k
(Hz)
10k5k2k1k500200100
90°
120°
150°
180°
210°
240°
270°
300°
330°
60°
30°
0°
10dB
50
20k
(Hz)
10k5k2k1k500200100
10dB
50
20k
(Hz)
10k5k2k1k500200100
Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2023 Audio-Technica Corporation
Global Support Contact: www.at-globalsupport.com
Made in Japan 380900050-02-01 ver.1 2023.11.01
Sound pressure scale is 5 dB per unit
Sound pressure scale is 5 dB per unit
Specifications
Headphones
Type Closed-back dynamic
Driver Φ45 mm (1.77”)
Sensitivity 102 dB/mW
Frequency response 15 to 28,000 Hz
Maximum output 1,600 mW
Impedance 38Ω
Input jack TB6M jack
Weight (without cable) BPHS2a: 250 g (8.8 oz), BPHS2Ca: 240 g (8.5 oz),
BPHS2Sa: 190 g (6.7 oz)
Accessories Windscreen x 3, clip, pouch
Replacements/separately sold items BPCB2 (3.0 m (9.8') / TA6F, 3-pin XLRM, plug),
BPCB3 (3.0 m (9.8') / TA6F, unterminated),
Earpad HP-M60x,Head pad
Microphone
BPHS2a/BPHS2Sa
Type Dynamic
Polar pattern Hypercardioid
Frequency response* 50 to 14,000 Hz (at 2 cm (0.79”))
Sensitivity* –57 dB (1.4 mV) (0 dB = 1 V/Pa, 1 kHz)
Output impedance 550Ω
Dimensions Height: 18.0 mm (0.71”),
Main unit maximum diameter: 23.4 mm (0.92”)
Output connector TB6M
BPHS2Ca
Type Back electret condenser
Polar pattern Cardioid
Frequency response* 60 to 15,000 Hz (at 2 cm (0.79”))
Sensitivity* -45 dB (5.6 mV) (0 dB = 1 V/Pa, 1 kHz)
Output impedance 100Ω
Maximum input sound pressure level* 140 dB SPL (1 kHz THD1%)
S/N ratio* 60 dB (1 kHz at 1 Pa, A-weighted)
Dynamic range 106 dB (1 kHz at Max S.P.L.)
Phantom power 11 to 52V DC, 2 mA
Dimensions Minimum width: 12 mm (0.47”), Height: 12.7 mm (0.5”)
Output connector TB6M
* During a wired connection with the product. Performance varies depending on the device used.
• 1 Pascal = 10 dynes/cm2 = 10 microbars = 94 dB SPL
For product improvement, the product is subject to modification without notice.
Frequency (Hz)
Legend 0°, 2 cm
Frequency (Hz)
Legend 0°, 50 cm
Response (dB)Response (dB)Response (dB) Response (dB)
Frequency (Hz)
Legend 0°, 2 cm
Frequency (Hz)
Legend 0°, 50 cm
Legend
200 Hz
1 kHz
5 kHz
Legend
200 Hz
1kHz
5kHz
