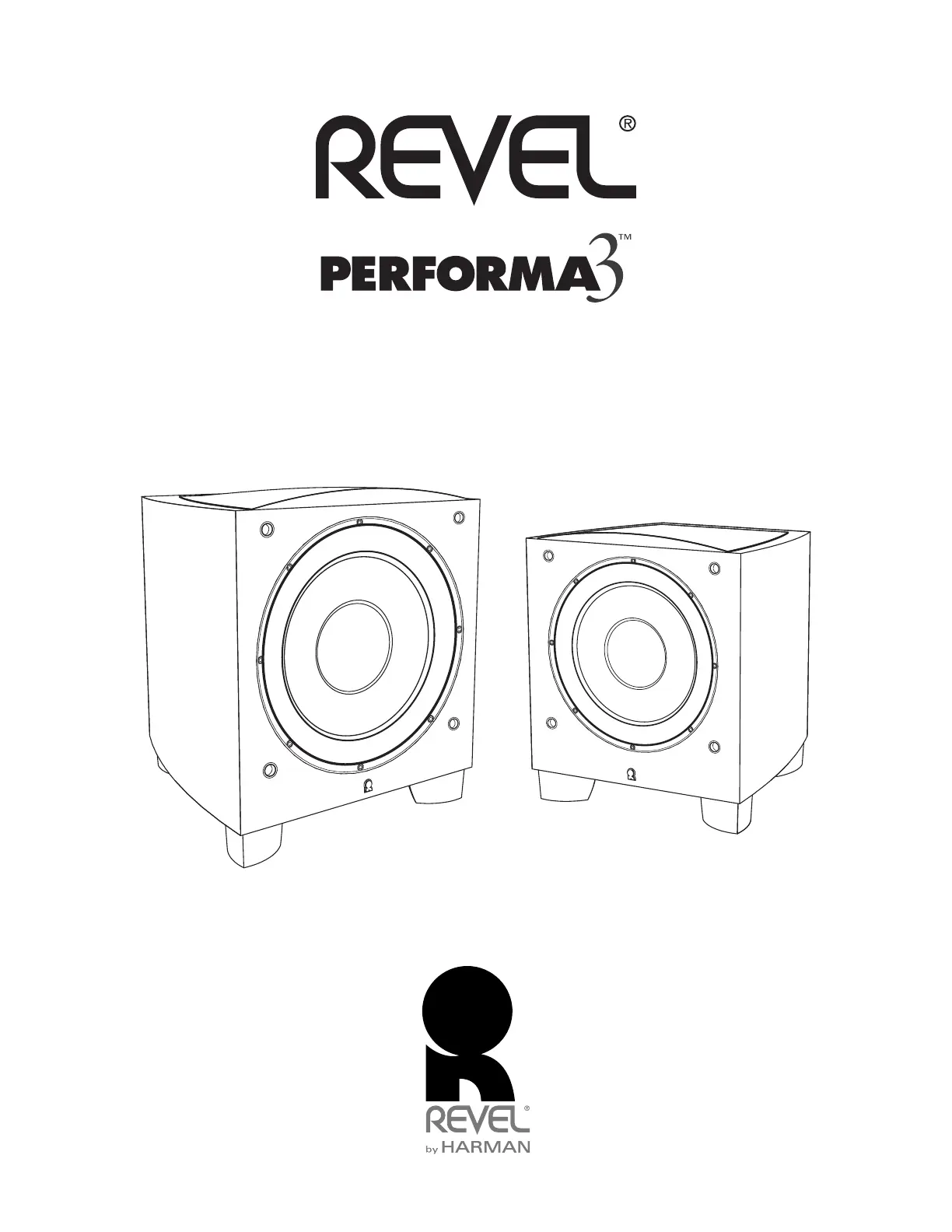

B112V2/B110V2 Subwoofer

Quick Start Guide

2B112V2/B110V2 Subwoofer

Quick Start Guide

ABOUT REVEL PERFORMA3 V2

SUBWOOFERS

Thank you for purchasing a Revel Performa3 V2 subwoofer. The

B112V2 and B110V2 are powered by a 1,000-watt RMS (2,000-watt

peak) internal ampliﬁer and feature a custom-designed transducer that

combines a new level of low frequency detail, musicality and reﬁnement

with unprecedented brute-force visceral impact. The internal ampliﬁer’s

high power with an integrated Parametric Equalization (PEQ) system

results in a new standard of high ﬁdelity bass performance for home

entertainment systems.

The B112V2 and B110V2 feature 12-inch and 10-inch versions,

respectively, of a brand-new coated paper/pulp low-frequency

transducer that has been designed speciﬁcally for use in these two

subwoofer models. The primary design goal for this new driver was to

produce very low frequencies at extremely high sound pressure level

(SPL) while at the same time maintaining extremely low distortion –

qualities that are usually mutually exclusive. This new unit maintains

a precise engineering balance between the voice coil, spider and

surround that produces linear motion of all three for lower distortion by

incorporating Klippel-optimized, high-linearity motor geometry:

• The extremely long (50mm) two-layer copper voice coil wound on

a high heat-tolerant ﬁberglass former gives this transducer a very

large range of travel (Xmax) for dramatically increased output with

low distortion.

• A high-temperature Nomex® spider features a progressive roll

design that evenly distributes mechanical stress, helping keep

the cone’s motion linear during high-excursion operation.

• The over-sized SBR rubber surround allows greater linear

excursion while providing enhanced moving-mass control. This

material also withstands the physical breakdown typical of

common foam surrounds.

The coated cellulose/pulp cone and dustcap assembly is vented to aid in

the exchange of air, which reduces acoustic losses and increases output.

The transducer’s massive Klippel-optimized magnet assembly (19.2 lb.

in both the B112V2 and B110V2) features a double-stacked ceramic 5

magnet with a ﬂared vent to improve airﬂow and reduce turbulence.

The result is increased bass output and lower distortion. A thick motor

shorting ring improves inductance linearity to further reduce distortion

and increase output. Extra cooling vents in the back plate increase

power handling and reduce power compression. Combined, these

changes increase the linear excursion 82% from the previous version.

The cast aluminum frame is fully vented to minimize acoustic losses

caused by excessive backpressure. This frame also maintains

dimensional stability and precise mechanical tolerances, allowing

the transducer to be assembled with a high degree of precision. The

structure and mass of the frame make it very strong as well as help pull

more heat away from the voice coil.

The B112V2 and B110V2 enclosures are formed with contiguous wood

layers that prevent splitting. They feature strategically-oriented bracing

that eliminates the possibility of vibration and coloration. The beautiful,

modern enclosure is ﬁnished in high-gloss piano black, walnut or white

in a process developed and overseen by Italian luxury cabinet makers

that exceeds automotive ﬁnish quality.

During development, every Revel loudspeaker model is compared to

competitive models in our unique position-independent double-blind

listening lab. This process utilizes the latest psychoacoustic research

to assure that these listening tests are valid, enabling us to verify that

all Revel loudspeakers are superior to their competitors before they are

allowed to go into production.

TABLE OF CONTENTS

About Revel Performa3V2 Subwoofers 2 ...................................................................................................................................

B112V2/B110V2 Overview 3 .......................................................................................................................................................

Subwoofer Placement Considerations..................................................................................................................................... 4

Placing a Single Subwoofer, Placing Two Subwoofers, Placing Four Subwoofers

Making Connections 6 ................................................................................................................................................................

Connecting to a Surround Processor with an Internal Crossover, Connecting to a Stereo Preampliﬁer,

Connecting Multiple Subwoofers, Trigger and Power Connections

Caring for Your Subwoofer....................................................................................................................................................... 9

Speciﬁcations 10 .........................................................................................................................................................................

Warranty 10 ................................................................................................................................................................................

B112V2/B110V2 Subwoofer

Quick Start Guide

B112V2/B110V2 OVERVIEW (Note: B112V2 and B110V2 rear panels are identical)

Input connectors: Connect these to the outputs of a stereo preamp or

connect a surround processor's subwoofer output to either the left or right

input. Balanced (XLR) and unbalanced (RCA) connectors are available. The

inputs are 0dBV nominal to +12dBV max unbal/+18dBV max bal. The XLR

input is pin 2 hot.

Low Pass Crossover: The variable 50Hz – 150Hz crossover determines

the frequency at which the subwoofer blends to the main speakers. When

the control is turned to “LFE” the crossover is by-passed and all crossover

settings are now set in the Processor or AVR menu.

NOTE: This control does not limit the frequency range of the main speakers

in the system. Adjust the Low-Pass Crossover control to properly blend to the

satellite speakers. When the blend is correct, notes of instruments and voice

in the crossover region should sound correct in level; not too loud relative to

the subwoofer frequencies or satellite frequencies, but also not too soft.

Subwoofer Gain control: Use this control to adjust the volume of the

subwoofer relative to the system’s other speakers.

Parametric Equalization (PEQ) controls: This set of equalization controls

adjust for the dominant room mode at your listening position in your speciﬁc

listening room. The parametric equalizer includes variable controls to adjust

Frequency, Bandwidth, and EQ Level of one band of frequencies. To use these

controls, you must ﬁrst set the EQ switch to “ON”.

NOTE: Speciﬁc measurement equipment is required to properly adjust the

Equalization controls. Your authorized REVEL® dealer can make the appropriate

measurements, using suitable equipment to ensure optimal results.

EQ Frequency control: selects the center frequency of the particular

problem area. The range is from 32Hz to 100Hz.

EQ Bandwidth control: sets the range of frequencies over which the

equalizer will have an effect. The range is from 0.1 octaves to 0.6 octaves; the

higher the number the broader the range of frequencies that will be affected.

EQ Level control: Allows you to adjust how much boost or cut is applied

to the selected frequency by the EQ Frequency Control. This control adjusts

from -12dB to a maximum of +3dB.

EQ On/Off switch: Enables/Disables the parametric EQ controls

(Frequency, Bandwidth, and EQ Level, but not Phase).

Extended On/Off switch: In the extended mode (ON), the -3 dB point is

shifted from 29.5 Hz to 22.7 Hz in the B112V2 and from 32 Hz to 23.7 Hz in

the B110V2.

NOTE: Using the extended setting will lower the maximum volume

level the subwoofer can achieve. If you hear bass distortion during loud

passages, discontinue use of the “extended” setting.

Phase switch: adjusts the phase of the subwoofer’s output relative to

the front speakers. Proper phase adjustment can also depend on variables

such as the subwoofer placement and listener position. Set this switch for

maximum mid-bass output at the primary listening position.

12V Trigger In/Out connectors: When the subwoofer’s Power Mode

Switch is set to “Trigger,” the subwoofer will automatically turn on when

5V – 12V is present at the 12V Trigger In connection and will turn off when

the voltage at this connection is removed. Whenever the subwoofer is on, a

12V trigger signal is available at its 12V Trigger Out connector for use with

additional Performa3V2 subwoofers, or another triggerable device.

Power Mode switch: determines how the subwoofer will turn on and off:

• When this switch is set in the “Auto” position and the Power switch

is set to “On,” the subwoofer will automatically turn on when it ﬁrst

detects an audio signal at any of its inputs, and will automatically

enter the standby mode after it has received no audio signal for ten

(10) minutes.

• When this switch is set in the “On” position, the subwoofer will turn

on when the Power switch is set to “On” and will remain on until the

Power switch is set to “Off.”

• When this switch is set in the “Trigger” position and the Power switch

is set to “On,” the subwoofer will automatically turn on when a voltage

is present at the 12V Trigger In connection and will remain on as long

as the voltage is present. When the voltage at the 12V Trigger In

connection is removed the subwoofer will automatically turn off.

Power Mode indicator: The LED glows green when the power switch

is set to On and there is signal at the input and/or a 12V trigger present. If

the power switch is set to On but there is no signal after ten (10) minutes or

there is no trigger voltage, then the LED will glow red. It will be unlit if the

power switch is set to Off or the unit is receiving no power.

Power switch: When this switch is set to “On,” the subwoofer’s on/off

status is dependent on the setting of the Power Mode switch (see above).

When the Power switch is set to “Off” the subwoofer is turned off and

cannot turn on automatically.

We suggest setting the Power switch in the “Off” position if you will not be

using the subwoofer for a long period of time, such as when you’re on vacation.

Power Cord connector: Plug the supplied power cord into this connector

and into a working AC power outlet.unswitched

Power Switch

Power Cord Connector

Power Mode Switch

PEQ Level Control

Input Connectors (Balanced XLR)

Input Connectors (Unbalanced RCA)

Subwoofer Gain (Volume) Control

Low Pass Crossover Frequency Control

PEQ Frequency Control

PEQ Bandwidth Control

Power Indicator LED

Phase

EQ On/Off

EQ Extended

12V Trigger In/Out Connection
