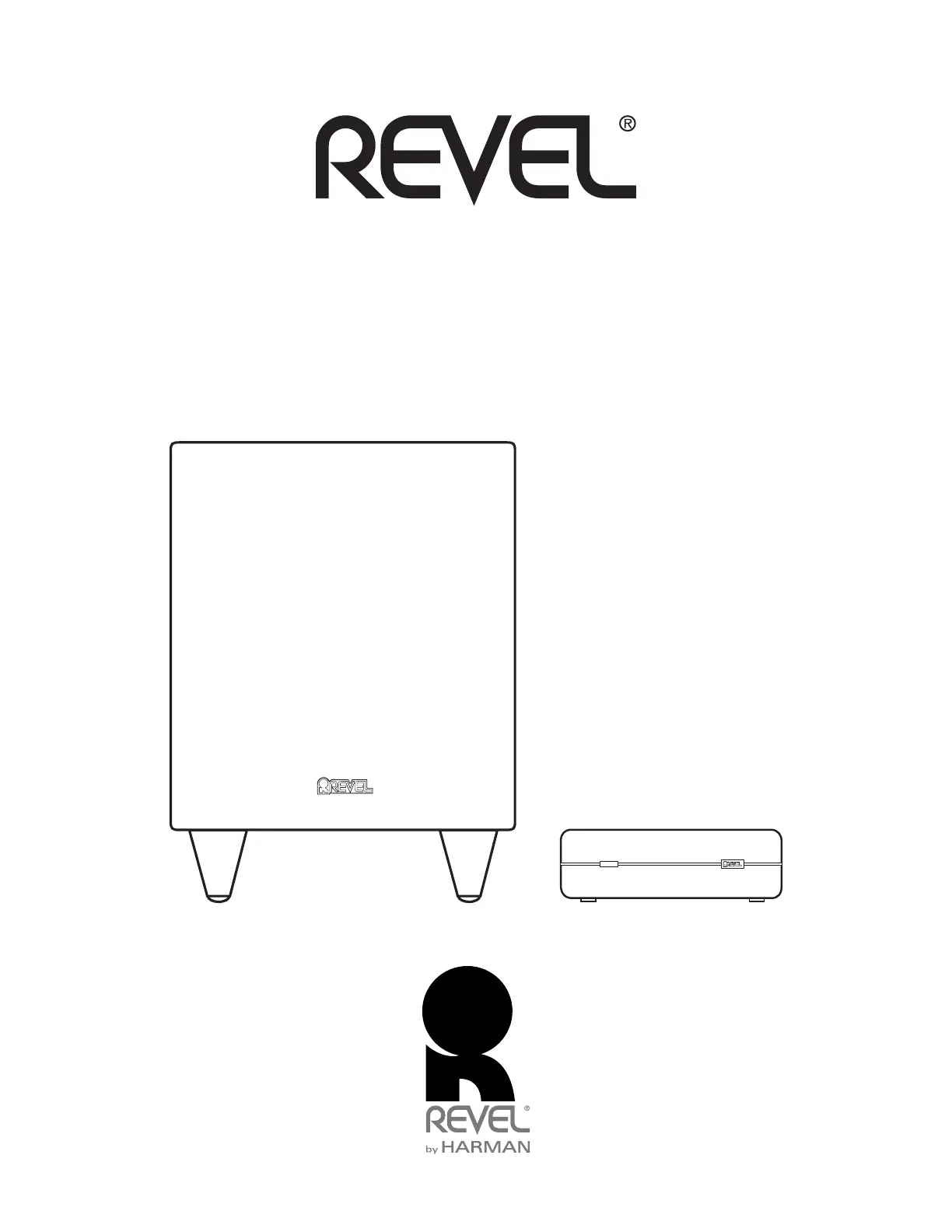

Revel B8 Wireless Subwoofer
Owner’s Manual
2Revel B8 Wireless Subwoofer
Owner’s Manual
TABLE OF CONTENTS
About Revel® ............................................................................ 2
Introduction 3 ..............................................................................
Subwoofer and Transmitter Controls 3 .......................................
Placing The Subwoofer 4 ............................................................
Connecting The Subwoofer...................................................... 5
Operating Your Subwoofer....................................................... 6
Specifications........................................................................... 7
Congratulations and Thank You for purchasing your new Revel® B8 Wireless Subwoofer.
Please take the time to read the following installation and setup information in order to
optimize the performance of your wireless subwoofer.
ABOUT REVEL®
Since 1996, Revel® has stood at the forefront of loudspeaker design and performance.
Backed by Harman International’s world leading research and design facilities, Revel®
loudspeakers benefit from cutting-edge resources such as:
• Multiple large anechoic chambers which allow for precise testing and
measurements.
• A multi-channel listening lab for double-blind, position independent listening
tests.
• A laser interferometer that enables detailed driver and cabinet analysis.
• Finite element analysis, utilized for advanced loudspeaker modeling.
• A stereo lithography apparatus, which rapidly “builds” tooled parts.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding-
type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs,
convenience receptacles and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long
periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, or the apparatus has been exposed to rain or moisture,
does not operate normally or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no
objects filled with liquids, such as vases, are placed on the apparatus.
16. The mains plug is used as disconnect device, the disconnect device shall
remain readily operable.
17. WARNING: Apparatus shall be connected to a MAINS socket outlet with a
protective earthing connection.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ATTENTION: RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
Warning: To reduce the risk of electric shock, do not
remove cover (or back) as there are no user-serviceable
parts inside. Refer servicing to qualified personnel.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the product.
WARNING: To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture. Operating Temperature
35ËšC.
INTRODUCTION
THANK YOU FOR CHOOSING THIS REVEL PRODUCT!
Your new Revel B8 200-watt powered wireless subwoofer incorporates an 8" (200mm)
down-firing cone transducer and a built-in, high-performance, 200-watt amplifier that
delivers the powerful, dynamic and accurate low-frequency performance that makes your
film soundtracks and music come alive. The subwoofer receives its audio signal from
the transmitter module via wireless technology, so you can place it anywhere in your
room without having to run an audio cable. And to maximize connection flexibility, the
subwoofer also features wired connections.
We’re confident that this Revel subwoofer will provide every note of enjoyment that you
expect – and that when you think about purchasing additional audio equipment, you will
once again choose Revel products.
This owner’s manual contains all the information you need to set up, connect and adjust
your new subwoofer. For more in-depth information, go to our Web site:
www.revelspeakers.com.
INCLUDED ITEMS
Wireless Subwoofer Transmitter Module
Transmitter Power Supply
Power Supply AC Cord
(varies with region)
Trigger Cable
LFE Cable
Phase Switch
Bass Boost Switch
Power On
Mode Switch
Input Mode Switch
External Trigger Input
Line-Level LFE In Connector
Line-Level L/R In Connector
Power Switch Power Cord
Subwoofer
Level Control
Wireless Code Switch
SUBWOOFER REAR-PANEL CONTROLS
TRANSMITTER UNIT
REAR-PANEL CONNECTIONS
AND CONTROLS
1 2
WIRELESS
CODE
DC 5V
INPUT
R
3 4
L
Wireless
Code
Switch
Power
Connector
Input
Connectors
3
Revel B8 Wireless Subwoofer
Owner’s Manual
