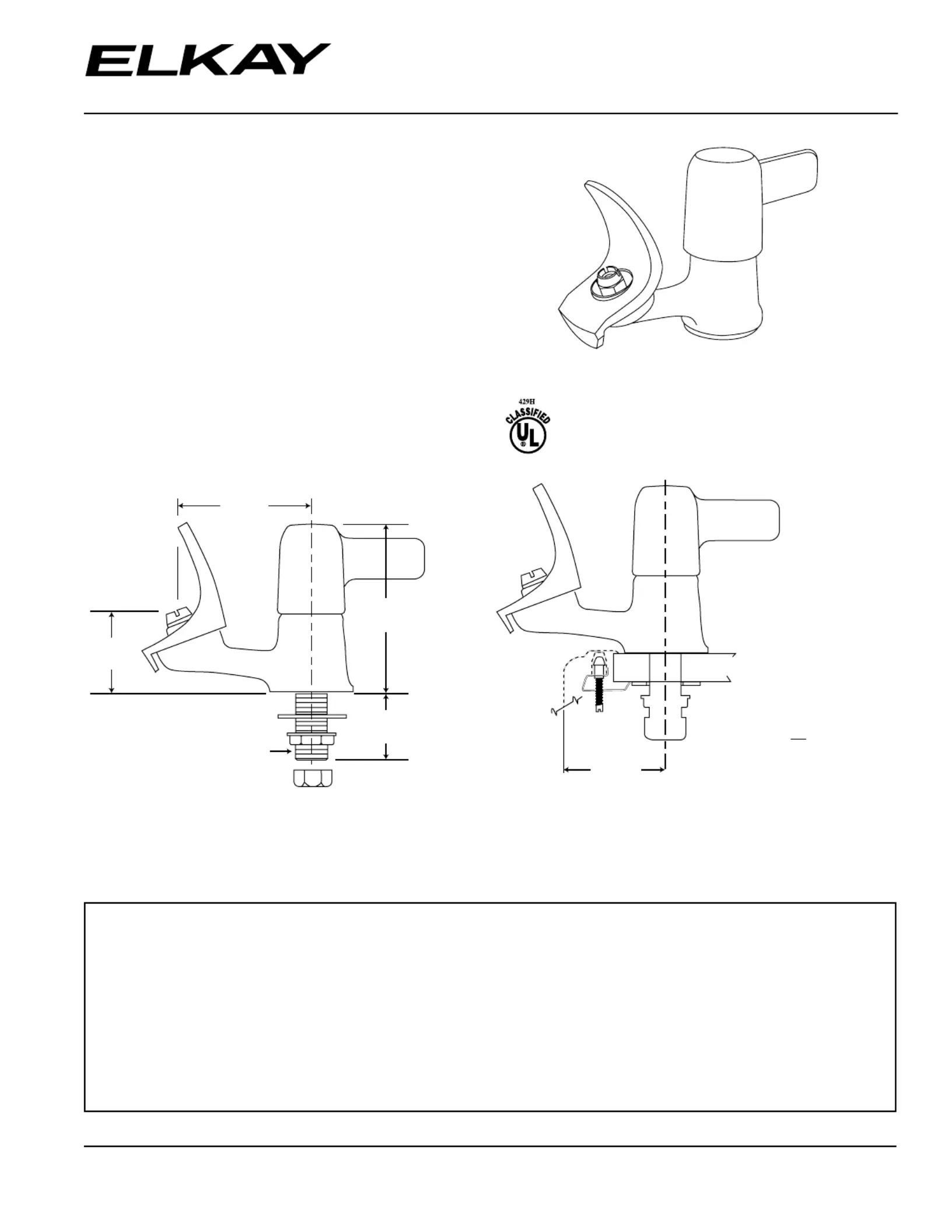

3-1/8"
(79mm)
1-7/8"
(48mm)
3-15/16"
(100mm)
2"
(52mm)
1/2" (13mm) STRAIGHT
PIPE THREAD
COUNTERTOP
2-5/8"
(66.6mm)
Installation Note: For countertop
installations, do not exceed 2-5/8"
from centerline of bubbler hole to
edge of sink bowl as shown.
GENERAL
Lever activated bubbler, self closing, with built-in adjustable
volume control which controls flow from 20 p.s.i. to 105 p.s.i.
LKBH1141A – Flexi-Guard®Bubbler*. Lever activated bubbler
designed so that water never comes in contact with lead-
containing materials. Built-in adjustable water volume control.
Heavy chrome plated body with a 1/2" (13mm) straight pipe
thread connection. Requires single faucet hole. Ship. Wt. 3-1/4 lbs.
LKVRBH1141A – Metal Bubbler. Same as LKBH1141A except
with metal mouth guard. Model includes (2) anti-rotation pins
for field installation. Four hole bubbler body drilling allows
installer to match anti-rotation pins to the anti-rotation sink
bubbler hole slot configuration. Ship. Wt. 3-1/2 lbs.
*Exclusive Flexi-Guard mouth guard utilizes a pliable polyester
elastomer to prevent mouth injuries. Guard flexes on impact
and then returns to original position. Strong, abrasion resistant,
anti-sweat and meets sanitary requirements.
Complies with ANSI A-117.1 and A.D.A. regulations which
require less than 5 lbs to operate.
Model LKVRBH1141A
Classified to NSF/ANSI 61 by Underwriters Labora-
tories Inc.
Elkay 2222 Camden Court
Oak Brook, IL 60523
A55326
Printed in U.S.A.
©2004 Elkay
(Rev. 11/04) 15-18A
www.elkayusa.com
No Lead Bubbler
For Classroom Drinking Fountain Sink
Model LKBH1141A and LKVRBH1141A
®
S P E C I F I C AT I O N S
Elkay warrants its faucets to be free of defects in workmanship and material for a period of
one year from the date of purchase. Replacement parts are available from Elkay for a nom-
inal charge. Upon return of a defective part to Elkay during the warranty period with written
notice of the claimed defect, Elkay will refund the replacement charge.
WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER WARRANTY
CONDITIONS:
Our warranty does not cover product failure caused by abusive treatment, misuse, or dam-
age due to handling or faulty installations. This warranty is extended only to the original con-
sumer purchaser of the product. This warranty does not cover shipping costs, labor costs,
or any other charges for such items as installation or replacement of the sink, diagnosis or
replacement of any faucet or component part, or any other expense or loss.
ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY EXCLUDED. NO
ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE GIVEN. ANY IMPLIED WAR-
RANTY, INCLUDING ONE OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PUR-
POSE, IS LIMITED TO THE DURATION OF THIS WRITTEN WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages
or limitations on how long an implied warranty lasts, so the above limitations or exclusions
may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay
Attention: Consumer Service
2222 Camden Court
Oak Brook, Illinois 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b. Description of nature of defect
c. Model number or description of model and/or component part if possible.
ELKAY FAUCET LIMITED WARRANTY
BODY ASSEMBLY
NOT AVAILABLE AS
SERVICE PART
A55293
HANDLE
A54765 (3)
SET SCREW
REQUIRES 1/16"
HEX KEY
61314C
REGULATOR
CARTRIDGE
A54888
SCREEN
ANTI-ROTATION PINS
FOR LKVRBH1141A
NOT FACTORY
INSTALLED
A54883
ANTI-ROTATION
WASHER
LKVR1141A ONLY
A54870
WASHER
A51266
NUT
A51438
COUPLING NUT
A54874
ORIFICE
ASSEMBLY
A54735
FLEXI-GUARD
A55066
ADAPTER
TO ADJUST WATER FLOW:
1. LOOSEN KNOB SET SCREWS.
2. REMOVE KNOB, ROLLER BEARINGS AND CAM PLATE.
3. INSERT SCREWDRIVER THROUGH SUPPORT INTO
TOP OF REGULATOR CARTRIDGE AND ADJUST
FLOW BY SLIGHT ROTATION OF SCREW. TURN
CLOCKWISE FOR ADDITIONAL FLOW. TURN
COUNTER CLOCKWISE FOR REDUCED FLOW.
4. PRESS STEM TO TEST WATER FLOW.
5. REASSEMBLE KNOB.
HOLDING
NUT ANTI-ROTATION
WASHER
DETERMINE 2 HOLES
TO BE USED FOR
INSTALLATION.
TAP 2 PINS IN PLACE
WITH HAMMER.
LKVRBH1141A ANTI-ROTATION
INSTALLATION INSTRUCTIONS
PINS
A55265
ORIFICE
ADAPTER
A55259
METAL GUARD
LKVRBH1141A
LKBH1141A
ROLLER BEARING
ADJUSTER SCREW
CAM PLATE
REPLACEMENT
PACK
A55299
WAVE SPRING
WEAR WASHER
A55295
HANDLE SUPPORT
Elkay 2222 Camden Court
Oak Brook, IL 60523
www.elkayusa.com
Printed in U.S.A.
©2004 Elkay
15-18A (Rev. 11/04) A55326
No Lead Bubbler
For Classroom Drinking Fountain Sink
Model LKBH1141A and LKVRBH1141A
®
PA RT S L I S T
