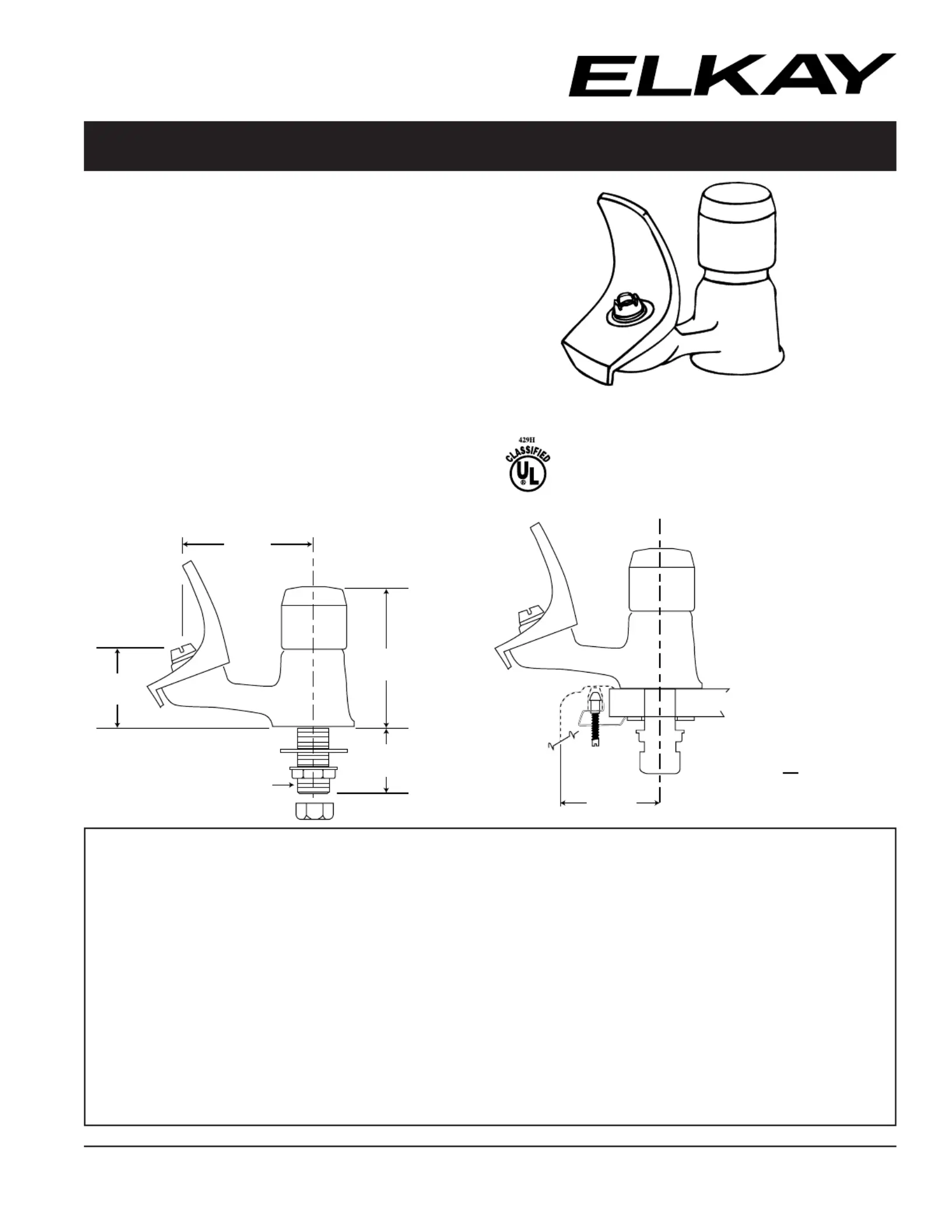

Seite 1/2
3-1/4"
(83mm)
1-7/8"
(48mm)
3-11/16"
(94mm)
2"
(52mm)
1/2" (13mm) STRAIGHT
PIPE THREAD
COUNTERTOP
2-5/8"
(66.6mm)
Installation Note: For countertop
installations, do not exceed 2-5/8"
from centerline of bubbler hole to฀
edge of sink bowl as shown.
No Lead Bubbler
For Classroom Drinking Fountain Sink
Model LK1141A and LKVR1141A
®
SPECIFICATIONS
GENERAL
Push-button bubbler, self closing, with built-in adjustable
volume control which controls flow from 20 p.s.i. to 105 p.s.i.
LK1141A – Flexi-Guard®Bubbler*. Push-button valve bubbler
designed so that water never comes in contact with lead-
containing materials. Built-in adjustable water volume control.
Heavy chrome plated body with a 1/2" (13mm) straight pipe
thread connection. Requires single faucet hole. Ship. Wt. 2.3 lbs.
LKVR1141A – Metal Bubbler. Same as LK1141A except with
metal mouth guard. Model includes (2) anti-rotation pins for
field installation. Four hole bubbler body drilling allows installer
to match anti-rotation pins to the anti-rotation sink bubbler hole
slot configuration.
*Exclusive Flexi-Guard mouth guard utilizes a pliable polyester
elastomer to prevent mouth injuries. Guard flexes on impact
and then returns to original position. Strong, abrasion resistant,
anti-sweat and meets sanitary requirements.
Complies with ANSI A-117.1 and A.D.A. regulations which
require less than 5 lbs to operate.
Elkay Manufacturing Company 2222 Camden Court
Oak Brook, IL 60523
A55068 (Rev. G)
Printed in U.S.A.
©2002 Elkay Mfg. Co.
(Rev. 5/02) 15-12G
www.elkay.com
Elkay warrants its faucet and water dispensers to be free of defects in work-
manship and material for a period of one year from the date of purchase.
Replacement parts are available from Elkay for a nominal charge. Upon return
of a defective part to Elkay during the warranty period with written notice of
the claimed defect, Elkay will refund the replacement charge.
WASTE FITTINGS AND ACCESSORIES ARE NOT WARRANTED; OTHER
WARRANTY CONDITIONS:
Our warranty does not cover product failure caused by abusive treatment,
misuse, or damage due to handling or faulty installations. This warranty is
extended only to the original consumer purchaser of the product. This war-
ranty does not cover shipping costs, labor costs, or any other charges for
such items as installation or replacement of the sink, diagnosis or replacement
of any faucet or component part, or any other expense or loss.
ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARE SPECIFICALLY
EXCLUDED. NO ADDITIONAL WARRANTIES, EXPRESS OR IMPLIED, ARE
GIVEN. ANY IMPLIED WARRANTY, INCLUDING ONE OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE, IS LIMITED TO THE DURATION
OF THIS WRITTEN WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages or limitations on how long an implied warranty lasts,
so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
TO OBTAIN SERVICE UNDER WARRANTY
1. Write to: Elkay Manufacturing Company
Attention: Consumer Service
2222 Camden Court
Oak Brook, Illinois 60523
2. Include a letter containing the following information:
a. Date of purchase and installation
b.Description of nature of defect
c. Model number or description of model and/or component part if
possible.
ELKAY FAUCET/WATER DISPENSERS LIMITED WARRANTY
Model LK1141A
Classified to by Underwriters Labora-ANSI/NSF61
tories Inc.
No Lead Bubbler
For Classroom Drinking Fountain Sink
Model LK1141A and LKVR1141A
®
PARTS LIST
Elkay Manufacturing Company 2222 Camden Court
Oak Brook, IL 60523
Printed in U.S.A.
©2002 Elkay Mfg. Co.
A55068 (Rev. G)15-12G (Rev. 5/02)
BODY ASSEMBLY
NOT AVAILABLE AS
SERVICE PART
A55044
STEM
A55043
KNOB
A54765
SET SCREW
REQUIRES 1/16"
HEX KEY
A55042
SUPPORT
61313C
REGULATOR
CARTRIDGE
A54888
SCREEN
ANTI-ROTATION PINS
FOR LKVR1141A ONLY
NOT FACTORY
INSTALLED
A54883
ANTI-ROTATION
WASHER
LKVR1141A ONLY
A54870
WASHER
A51266
NUT
A51438
COUPLING NUT
A54874
ORIFICE
ASSEMBLY
A54735
FLEXI-GUARD
A55066
ADAPTER
TO ADJUST WATER FLOW:
1.฀LOOSEN KNOB SET SCREW.
2.฀REMOVE KNOB.
3.฀INSERT SCREWDRIVER THROUGH SUPPORT INTO
฀ TOP OF REGULATOR CARTRIDGE AND ADJUST
฀ FLOW BY SLIGHT ROTATION OF SCREW. TURN
฀ CLOCKWISE FOR ADDITIONAL FLOW. TURN
฀ COUNTER CLOCKWISE FOR REDUCED FLOW.
4.฀PRESS STEM TO TEST WATER FLOW.
5.฀REASSEMBLE KNOB.
HOLDING
NUT ANTI-ROTATION
WASHER
DETERMINE 2 HOLES฀
TO BE USED FOR฀
INSTALLATION.฀
TAP 2 PINS IN PLACE฀
WITH HAMMER.
LKVR1141A ANTI-ROTATION฀
INSTALLATION INSTRUCTIONS
PINS
A55265
ORIFICE
ADAPTER
A55259
METAL GUARD
LKVR1141A
LK1141A
