97824C - (Rev. B - 07/16)
Glass Filler Plumbing Kit
For Part Number LK109A
Warning
To avoid risk of electrical shock, personal injury or death, disconnect from electrical power supply and shutoff
water supply before installing this plumbing kit.
Caution
To avoid property damage, personal injury and voiding your warranty:
• Have this kit installed by an authorized person. (Installation person should be familiar with water cooler
plumbing, refrigeration systems and general plumbing practices.)
• Make sure you read, understand and follow the instructions.
• Wear hand and arm protection. Use caution when working inside the water cooler. Edges inside the water
cooler can be sharp.
• Wear eye safety goggles.

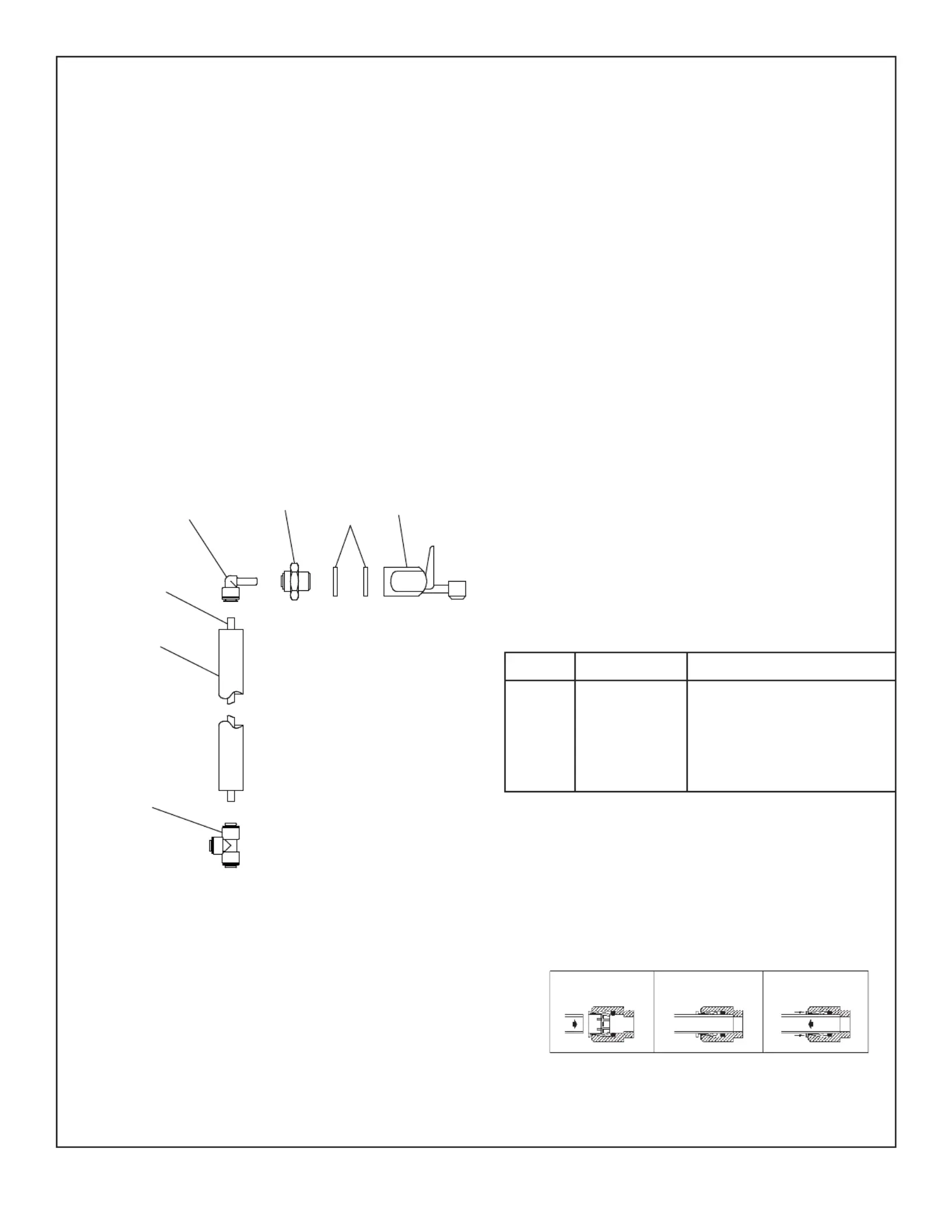

Parts List
Refer to the illustration to make sure you receive all plumbing kit parts. If any parts are missing contact your
distributor.
Actuation of Quick Connect Water Fittings:
To remove tubing from the îšżtting, relieve water pressure,
push in on the darker gray collar before pulling on the
tubing. To insert tubing, push tube straight into îšżtting until
it reaches a positive stop, approximately 3/4” (19mm).
Deburr cut tube ends before inserting into the Quick
Connect Fitting. Burrs on the tube end will cut the
internal “O”-Ring and will allow the tting to leak.
OPERATION OF QUICK CONNECT FITTINGS
TUBE IS
SECURED
IN POSITION
SIMPLY PUSH IN
TUBE TO ATTACH
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
PART NO. DESCRIPTION
100322740560
15009C
40493C
50090C
56092C
70682C
70817C
Black Gasket
Nipple Assy.
Glass Filler
Armaex
Poly Tubing - 1/4” (Cut to Length)
Tee - 1/4”
Stem Elbow - 1/4”
1
2
3
4
5
6
7
ITEM NO.
7
5
6
1
2
4
3
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR CALL 1.800.834.4816
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
Elkay - www.elkay.com
