Seite 1/1
C
FM
L2
L1
FM
L1
L2

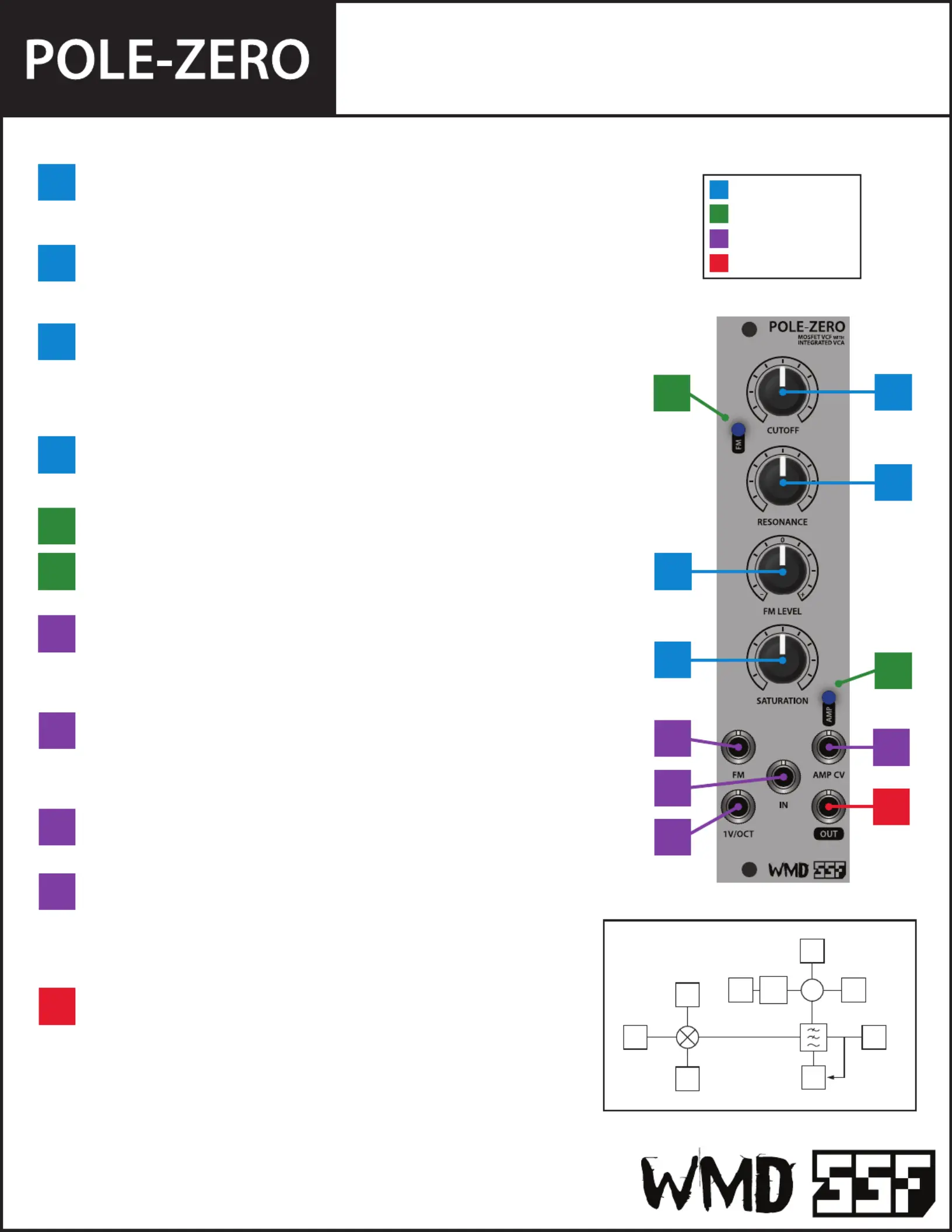

CUTOFF FREQUENCY CONTROL
Use this control to change the cuto frequency of the lter. The spectral content of the input
signal is reduced as this control travels from maximum to minimum in a counter-clockwise
direction.
RESONANCE CONTROL
Use this control to the input signal with respect to the cuto frequency. When set resonate
to the maximum position, the lter will begin to self oscillate sine wave and can be used as a
Voltage Controlled Oscillator (VCO).
POLE-ZERO is a 4-pole (24dB/octave) low pass Voltage Controlled Filter (VCF) utilizing MOSFET
transistors. MOSFETs are known for their soft, vacuum tube like distortion when overdriven.
POLE-ZERO is designed to exploit these characteristics with the addition of a MOSFET saturation
control and provide a much wider palette of sounds when compared to a standard VCF. A
Voltage Controlled Amplier (VCA) is a relatively novel addition and also provides a simple way
to amplitude modulate the lter without the need of an external VCA.
FM CV INPUT
This input is for frequency modulating the CUTOFF of the lter with bipolar or unipolar
control voltage. Signals applied to this input are processed through the FM LEVEL
polarizing attenuator. The signal applied here will also sum together with a signal
patched into the 1V/OCT scaled (SFM) input.
FM LEVEL LED
Indicates the cuto level position as aected by the CUTOFF control and FM input.
AMPLIFIER STATUS LED
Indicates the amplitude level of the input signal as aected by the AMP CV input.
OUT
PANEL CONTROL
LED INDICATOR
INPUT
OUTPUT
COLOR KEY LEGEND
SFM
SIGNAL INPUT
This is the input to the lter. The signal passes through the amplier and saturater,
then through the lter section and to the output (OUT).
AMPLIFIER CV INPUT
Use this input to voltage control the amplitude of the signal. For normal
operation, a signal is not required to be present at this input. Patching a
positive polarity control voltage into AMP CV will cause the amplitude to
follow the level of the control voltage (CV). Use 8 to 10 volt control
voltages for nominal signal output level.
OUT LOW PASS OUTPUT
Output of the saturater and lter.
R
FM
IN
AMP
CV
S
C
R
FM
SSATURATION CONTROL
Use this control to add warm, fat MOSFET saturation to the input signal, which
increases the harmonic content and boosts the bottom end for . maximum bass
FM POLARIZING ATTENUATOR
This control aects the level of control voltage (CV) applied to the FM input. This
control is capable of attenuating inverting the CV level as well as the polarity.
Center position (0) turns the CV level o.
Maximum position (+) results in the full, normal signal.
Minimum position (-) results in the full, inverted signal.
SFM 1V/OCT SCALED FM CV INPUT
This input is for frequency modulating the CUTOFF of the lter with bipolar or unipolar
control voltage. This FM input is used for precisely tracking the lter when a keyboard
or other controller is used and/or when the lter is used as a sine wave VCO. The signal
applied here will also sum together with a signal patched into the FM CV input.
IN
AMP
CV
Σ
IN OUT
SFM
FM C
+ +
+
LOW PASS
AMP
CV R
SFM LEVEL
SIGNAL PATH DIAGRAM
Σ= SUM
