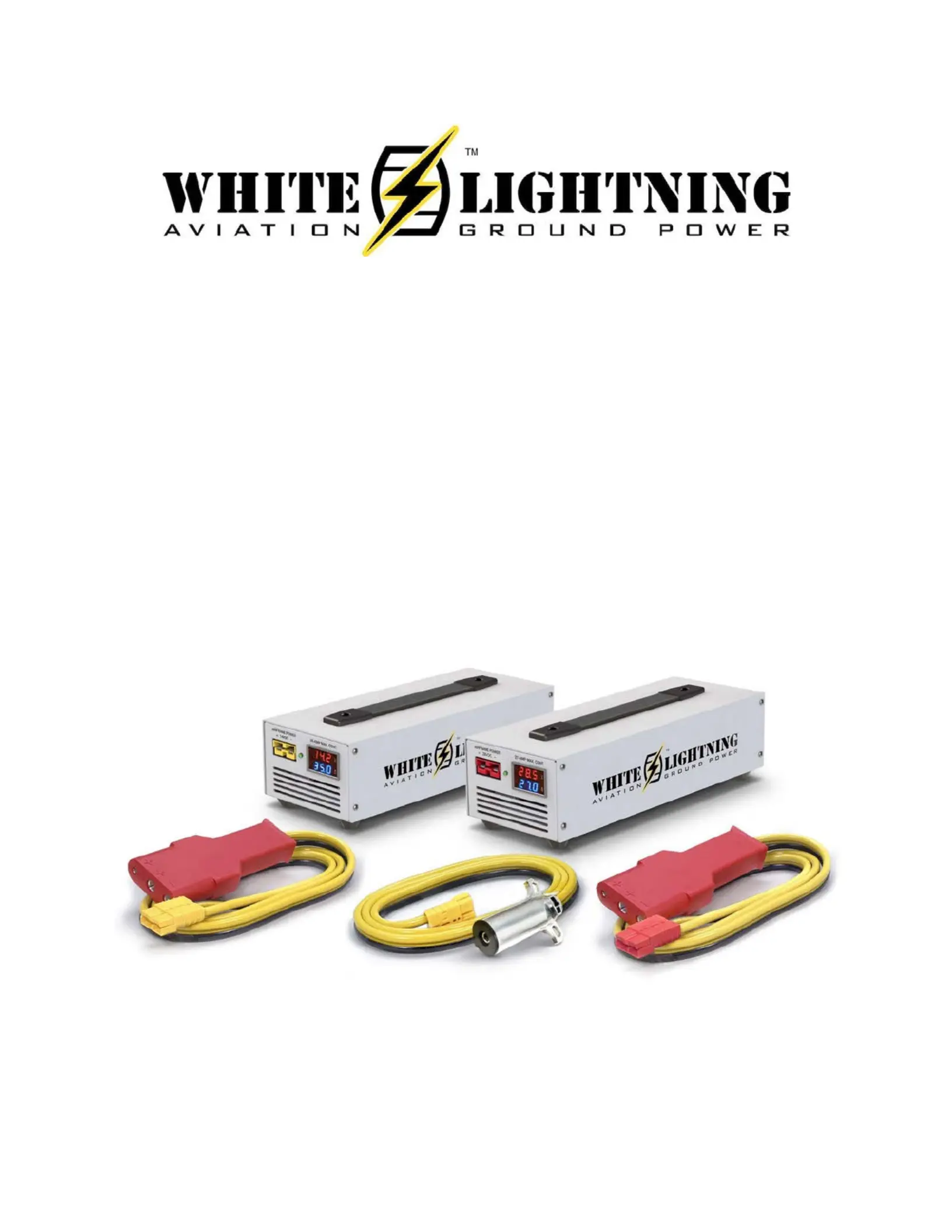

M-Series Operator’s Manual
Mini-GPUs for Certified Aircraft:
Model M1435 / M1435P 14-Volt, 35-Amp Maximum Continuous
Model M2827 28-Volt, 27-Amp Maximum Continuous
IMPORTANT DISCLAIMERS & LIABILITY LIMITATIONS
As a condition for use, Audio Authority Corp. authorizes this device for use ONLY by aviation
professionals, such as licensed pilots and maintenance technicians, knowledgeable about the
aircraft’s electrical system and batteries. The concepts, recommendations, and instructions in this
manual are necessarily general and make assumptions that may not apply to your aircraft. Therefore,
incorrect use of this device has the potential to damage the GPU and/or aircraft components.
The design of these model Mini-GPUs presumes your aircraft has a factory-installed external power
receptacle for either the 3-pin oval AN2551 plug or the single-pin round (aka Piper) plug. If your
aircraft is experimental and does not have an external power receptacle, we recommend our Model
M1435-EXP which includes a wiring kit for installing an external power receptacle.
It is the operator’s sole responsibility to read completely and fully understand this manual, plus all
available documentation on their aircraft’s electrical system design, to properly determine the
appropriate use of this, or any, external power source. If you cannot do this, do not use this
product. Instead, consult a qualified technician familiar with your specific aircraft type and
configuration before connecting the GPU to your aircraft, or return it to the seller before using.
2
M-Series Mini-GPU Manual P/N 752-697, Rev 20211201
General Description and Application
This manual is applicable to both the M1435 and M2827 models. Model specific references in this
manual will be separated by a slash.
The M1435/M2827 Mini-GPUs are specialized switching-mode power supplies designed to provide
pilots and aviation maintenance professionals with a portable, affordable source of stable, high-current,
noise-free DC power that replicates the in-flight electrical environment. Depending upon the model, its
rated output is either 14-volts DC up to 35-amps maximum continuous current (approximately 500
watts), or 28-volts up to 27-amps (approximately 750 watts). The GPU’s intended purpose is to energize
aircraft’s main electrical bus without using the battery or engine. It will safely provide continuous power
for the most delicate electronics and airframe systems up to its full rated output.
Typical Uses
●power avionics for flight planning, familiarization, and training
●update flight deck database and software
●troubleshooting and maintenance
FRONT PANEL VIEW REAR PANEL VIEW
Special Features
●Color-coded, keyed SB-50 type output connections to prevent accidental voltage mismatch
(Yellow designates 12/14 volt compatibility, Red designates 24/28 volt compatibility)
●Dual digital output meters for voltage and current load
●Front panel status indicator LED
●Programmable auto-shutdown timer
●Dual USB power ports for mobile device charging
●QuietFiltered™ output for interference-free COM radio operation
●Auto protection/recovery from short circuit, reverse polarity, over voltage/load/temperature
Operating Conditions and Limitations
The M1435/2827 is internally fan-cooled and relies on unobstructed ventilation access for proper
operation. The GPU should operate on a clean, hard surface so that debris cannot be ingested. Its
design assumes a dry operating environment. If used outdoors, it is the operator’s responsibility to
ensure that the unit is not exposed to moisture.
The M1435/2827 is designed to provide . It is not a battery charger. It does notairframe power only
monitor the state-of-charge of the aircraft battery. It is not suitable for engine starting.
3
M-Series Mini-GPU Manual P/N 752-697, Rev 20211201
