M-Series Operator’s Manual
Model M2850, 28-Volt 50-Amp Mini-GPU
IMPORTANT DISCLAIMERS & LIABILITY LIMITATIONS
As a condition for use, Audio Authority Corp. authorizes this device for use ONLY by aviation
professionals, such as licensed pilots and maintenance technicians, knowledgeable about the
aircraft’s electrical system and batteries. The concepts, recommendations, and instructions in this
manual are necessarily general and make assumptions that may not apply to your aircraft. Therefore,
incorrect use of this device has the potential to damage the GPU and/or aircraft components.
The device is designed exclusively for aircraft with a 28VDC electrical system, a 24V battery, and a
factory-installed external power receptacle for a 3- pin oval AN2551 plug. (NATO)
It is the operator’s sole responsibility to read completely and fully understand this manual, plus all
available documentation on their aircraft’s electrical system design, to properly determine the
appropriate use of this, or any, external power source. If you cannot do this, do not use this
product. Instead, consult a qualified technician familiar with your specific aircraft type and
configuration before connecting the GPU to your aircraft, or return it to the seller before using.
M- - 2 Series M2850 GPU Manual P/N 752 794 20801, Rev 202
General Description and Application
The M2850 - - y Mini GPU is a specialized switching mode power suppl designed to provide pilots and
aviation maintenance professionals with a portable, affordable source of stable, high current, noise- -free
DC power that replicates the in- Iflight electrical environment. ts rated output is 28- -volts up to 50 amps
(approximately 1500 watts). The GPU’s intended purpose is to energize an aircraft’s main electrical bus
without using the ship’s battery or engine. It will safely provide continuous power for the most delicate
electronics and airframe systems up to its full rated output.
Typical Uses
power avionics for flight planning, familiarization, and training
update flight deck database and software
troubleshooting and maintenance

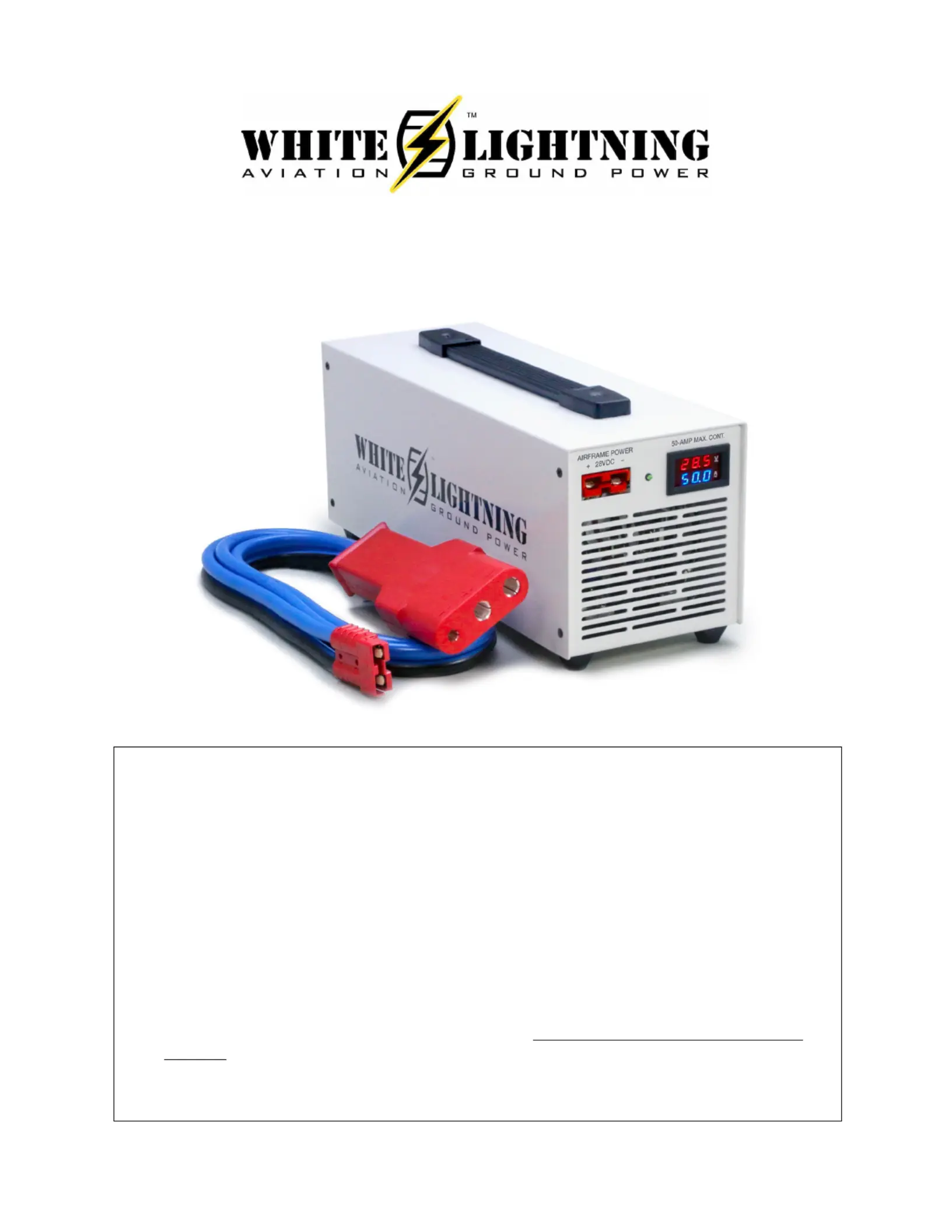

FRONT PANEL VIEW REAR PANEL VIEW
Special Features
Color- - coded, keyed SB 50 type output connection to prevent accidental voltage mismatch
RED . designates 24/28 volt compatibility
Dual digital output meters for voltage and amperage (load)
Front panel status indicator LED
Programmable auto- shutdown timer and dual USB power ports for mobile device charging
QuietFiltered™ output for interference-free COM radio operation
Auto protection/recovery from short circuit, reverse polarity, over voltage/load/temperature
Operating Conditions and Limitations
The M2850 is internally fan-cooled and relies on unobstructed ventilation access for proper operation.
The GPU should operate on a clean, hard surface so that debris cannot be ingested. Its design assumes
a dry operating environment. If used outdoors, it is the operator’s responsibility to ensure that the unit is
not exposed to moisture.
The M2850 is designed to provide airframe power only. It is not a battery charger. It does not monitor
the state- -of charge of the aircraft battery. It is not suitable for engine starting.
M- - 3 Series M2850 GPU Manual P/N 752 794 20801, Rev 202
Safety Precautions
Do not use this or any electrical device near uncontained fuel or fuel vapors.
Use in a well- ventilated area.
Do not use in a wet environment.
Do not use in the presence . of open fuel containers or if fuel vapors are detected
Disconnect GPU from aircraft when not in use.
Do not leave unattended while in use.
Connecting GPU to Aircraft
Connect the GPU - - AC input cord to a grounded power receptacle, 90 240VAC, 50 60Hz.
Connect the output cable to the GPU front panel receptacle.
Turn GPU power switch ON; observe on the output display.as proper voltage stabilizes
Connect GPU output cable to aircraft’s external power receptacle; observe that the airframe is
energized and shows a stable load of less than the GPU’s rated output. If voltage or current load
are not as expected, or GPU status indicator is flashing or red, disconnect the GPU from the
airframe and investigate the problem.
SAFETY TIP: Using the GPU during preflight allows time for a thorough inspection of all systems
and lights, without depleting the aircraft battery. In fact, if the battery is switched in circuit with the -
external power, it will provide a “top- off charge for the aircraft battery. (Not to exceed 15 minutes.)
Status Indicator
The GPU incorporates a status indicator between the volt/amp meter and the output connector.
Indications are interpreted as follows:
OFF
Power Switch OFF, or no AC input power
GREEN
ON or powered, normal operation
FLASHING GREEN
- Auto shutdown engaged
FLASHING RED
Fault condition see troubleshooting table for more details
Automatic Shutdown Timer
The M2850 features a programmable timer to automatically shut down the GPU after a period of time in
use, as selected by the user. This is to prevent the GPU from inadvertently being left on for an extended
period and potentially overcharging the aircraft’s battery, if in- circuit with the GPU.
A 10-position rotary switch on the back panel determines the duration of continuous operation. Each
number represents hour. This switch is factory set at 5 (2.5 hours); adjust with a small screwdriver. To ½
disable the auto- shutdown feature, set the switch to the 0 position.
To reset the timer and restart the GPU after auto- shutdown, cycle the power switch OFF then back ON.
USB Mobile Device Charging
Two convenience USB charging ports are provided on the rear panel of the GPU. These provide a 5VDC
output, up to 2A total combined, suitable for charging many portable devices like phones and speakers.
