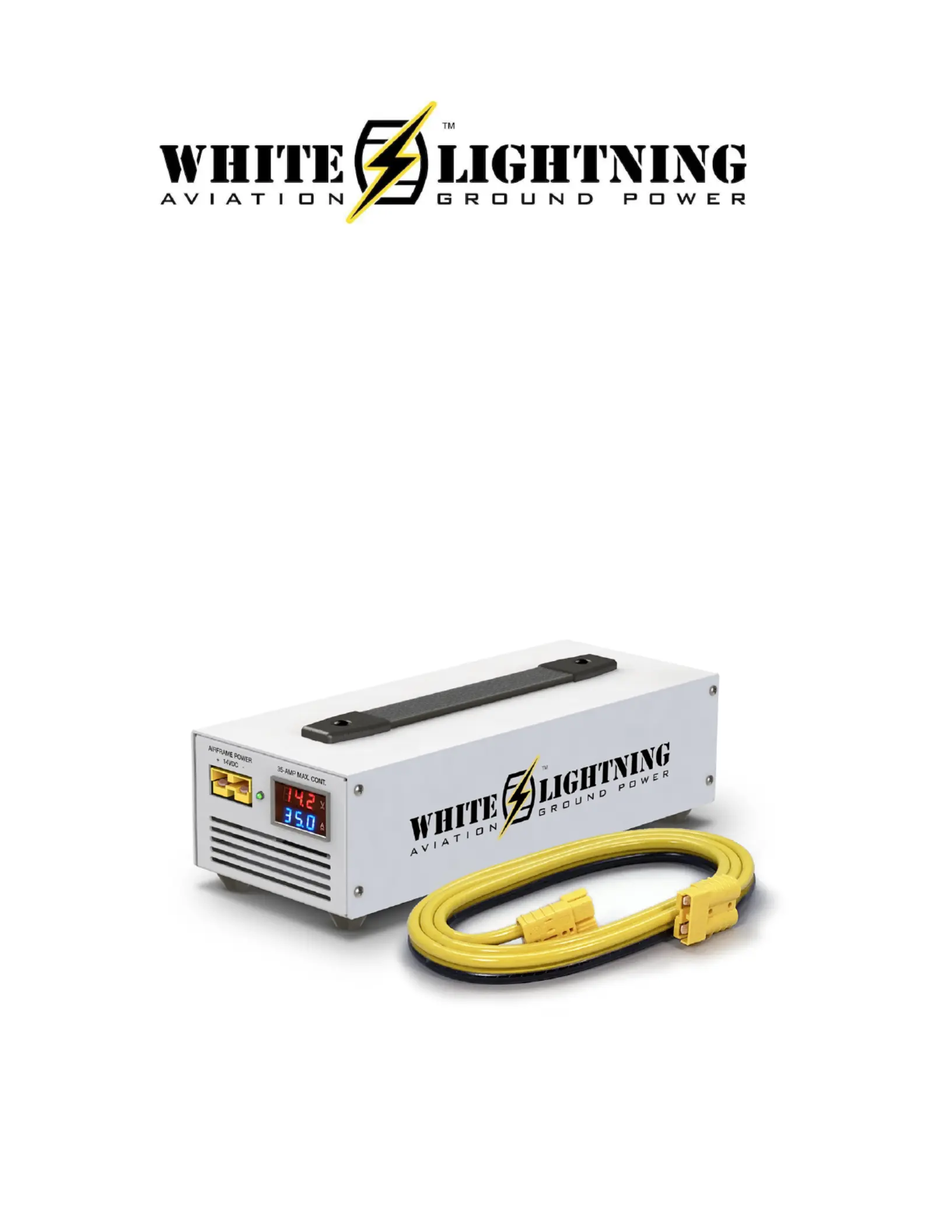

M-Series Operator’s Manual
Mini-GPU for Experimental/Amateur-Built Aircraft
Model M1435-EXP 14-Volt 35-Amp Maximum Continuous
IMPORTANT DISCLAIMERS & LIABILITY LIMITATIONS
As a condition for use, Audio Authority Corp. authorizes this device for use ONLY by aviation
professionals, such as licensed pilots and maintenance technicians, knowledgeable about the
aircraft’s electrical system and batteries. Experimental/Amateur-Built aircraft electrical systems not
only vary widely; they are unique. Many aircraft electrical systems also become altered from the
original builder’s configuration and these changes are often poorly documented in the aircraft records.
The concepts, recommendations, and instructions in this manual are necessarily general and make
assumptions that do not apply to every aircraft and may not be correct for your particular aircraft.
Incorrect use of this device has the potential to damage the GPU and/or aircraft components. This
product also requires installation of electrical wiring to the airframe to function.
It is the operator’s sole responsibility to read completely and fully understand this manual, plus all
available documentation on their aircraft’s electrical system design, to properly determine the
appropriate use of this, or any, external power source. If you cannot do this, do not use this
product. Instead, consult a qualified technician familiar with your specific aircraft type and
configuration before connecting the GPU to your aircraft, or return it to the seller before using.
2
Model M1435-EXP Manual P/N 752-790, Rev 20211201
General Description and Application
The Model M1435-EXP Mini-GPU is a specialized switching-mode power supply designed to provide
pilots and aviation maintenance professionals with a portable, affordable source of stable, high-current,
noise-free DC power that replicates the in-flight electrical environment. Its rated output is 14 Volts DC up
to 35 amps maximum continuous current. It is designed specifically for the owner/operator/maintainer of
Experimental/Amateur-Built (E/AB) aircraft. The GPU’s intended purpose is to energize aircraft’s main
electrical bus without using the battery or engine. It will safely provide continuous power for the most
delicate electronics and airframe systems up to its full rated output.
Typical Uses
●power avionics for flight planning, familiarization, and training
●update flight deck database and software
●troubleshooting and maintenance
FRONT PANEL VIEW REAR PANEL VIEW
Special Features
●Color-coded, keyed SB-50 type output connections to prevent accidental voltage mismatch
(Yellow designates 12/14 volt compatibility)
●Dual digital output meters for voltage and current load
●Front panel status indicator LED
●Programmable auto-shutdown timer
●Dual USB power ports for mobile device charging
●QuietFiltered™ output for interference-free COM radio operation
●Auto protection/recovery from short circuit, reverse polarity, over voltage/load/temperature
Operating Conditions and Limitations
The M1435-EXP is internally fan-cooled and relies on unobstructed ventilation access for proper
operation. The GPU should operate on a clean, hard surface so that debris cannot be ingested. Its
design assumes a dry operating environment. If used outdoors, it is the operator’s responsibility to
ensure that the unit is not exposed to moisture.
The M1435-EXP is designed to provide . It is not a battery charger. It does notairframe power only
monitor the state-of-charge of the aircraft battery. It is not suitable for engine starting.
3
Model M1435-EXP Manual P/N 752-790, Rev 20211201
