MODEL VT-81012
SKU 23428
INPUT VOLTAGE AC: 220-240V, 50/60 Hz
RATED CURRENT 5A
RATED LOAD Max. 500W
200W +LED
DETECTION
DISTANCE 5-6cm
WORKING
TEMPERATURE -20°C to +50°C
IP RATING IP20
DIMENSION 90x40.2x16.8 mm
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INSTRUCTION MANUAL
INFRARED DOOR SENSOR
TECHNICAL DATA
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
V-TAC LED
RANGE (UPTO 200W)
COMPATIBLE WITH
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
1. When the door opening
(>5cm), the lights will be
turned on.
2. When both of the 2 doors
being closed, the lights will
be turned o

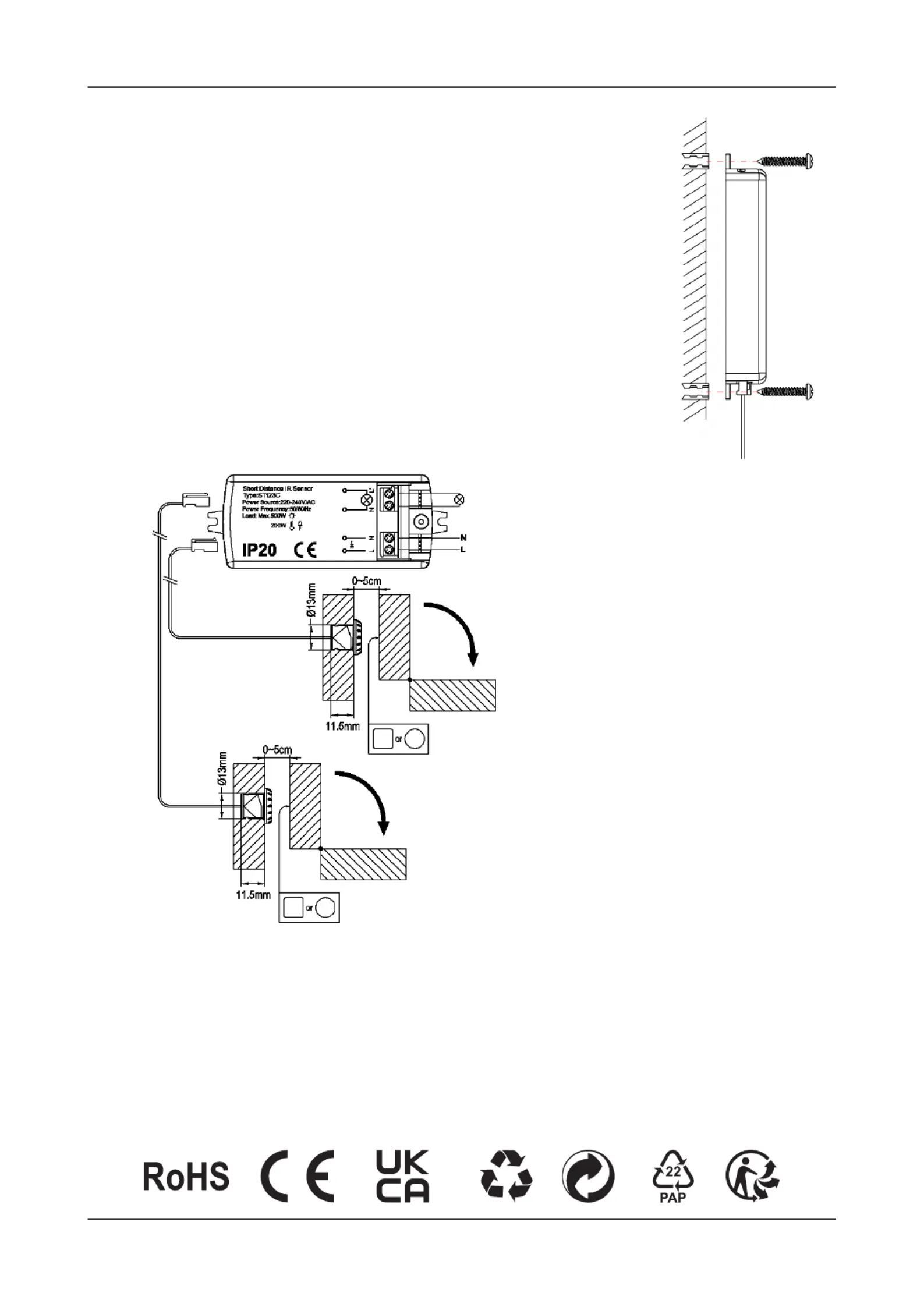

WIRING DIAGRAM
INSTALLATION
Turn on the Power, when you open 1 door or 2 doors, the sensor detects the motion and turns on
the lights. The lights will be switched o until both of the 2 doors are closed.
Within the detection field, there shouldn’t be any hindered or unrest objects aecting detection.
1. Switch o the power.
2. Install the product on the wall with two enclosed inflated
screws.
3. Connect the sensor with power supply and the load as per the
connection-wire diagram. Then turn on the power and test it.
To get better sensitivity, you can
paste one silver label as picture
on the door facing to the sensor
TEST
NOTE
WARNING
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. Cover or shied any adjacent live components.
4. For indoor use only.
