In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
INSTRUCTION MANUAL
DAY/NIGHT CONTROL SWITCH WITH TIMER
TECHNICAL DATA
MODEL VT-81007
SKU 23423
INPUT VOLTAGE AC: 220-240V, 50/60 Hz
RATED CURRENT 10A
AMBIENT LIGHT <3-500LUX (Adjustable)
BUILT-IN TIMER 1,2,3,4,5,6,7,8,9 Hours
WORKING
TEMPERATURE -20°C to +40°C
WORKING
HUMIDITY <% RH93
DIMENSION 70x108.8 mm
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
This marking indicates that this
product should not be disposed
of with other household wastes.
Caution, risk of electric shock.
WARNING
1. Please make sure to turn o the power before starting
the installation.
2. Installation must be performed by a qualified electrician.
FUNCTION
1. LUX setting: turn LUX knob anti-clockwise to “3”position, the photocell will only work in the
dark (less than 3LUX). If turn clockwise to “500” position, it will work when the ambient light is
less than 500LUX.
2. TIME setting: you can set the regular working hours of the photocell as needed.
INSTALLATION INSTRUCTIONS

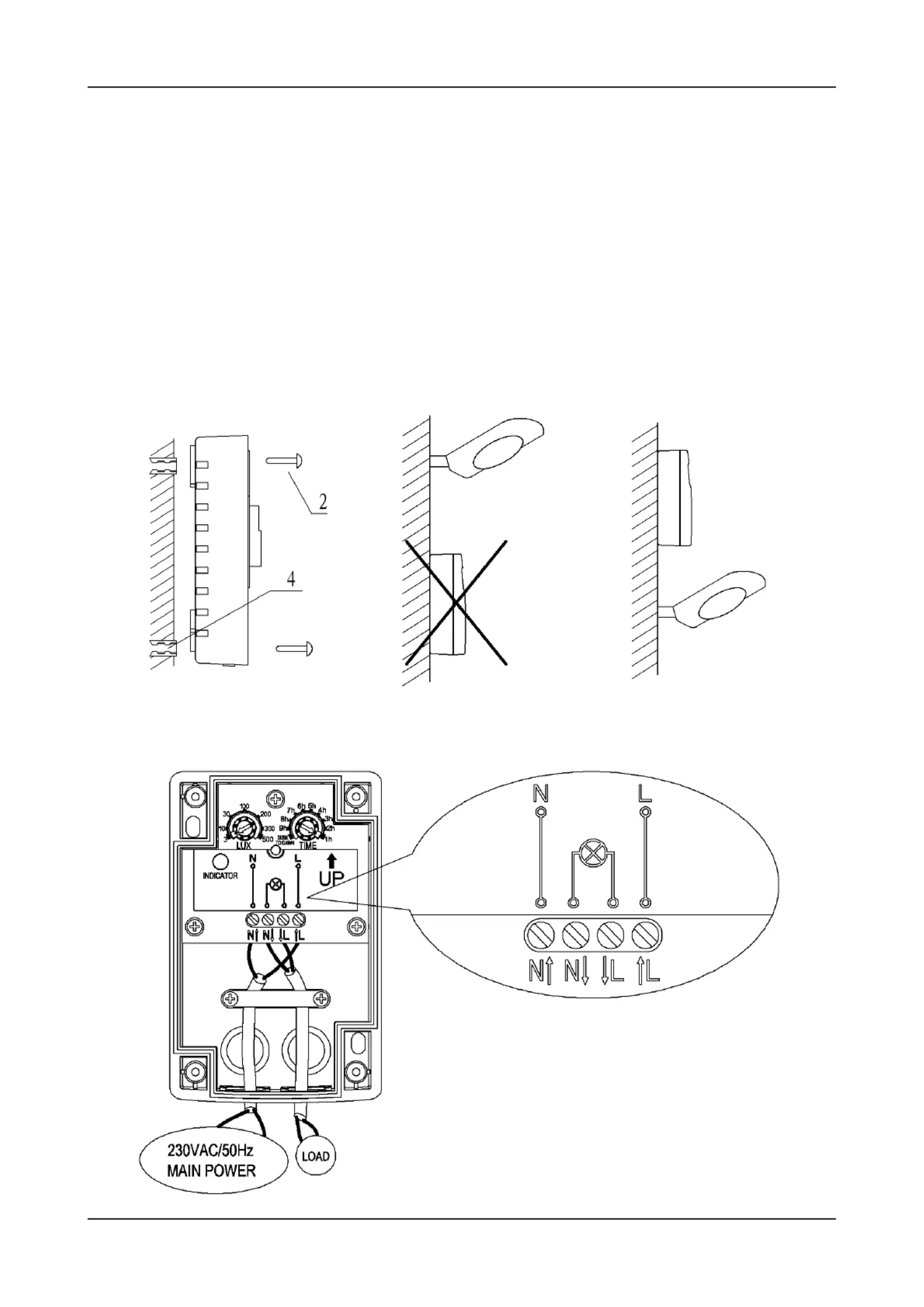

CONNECTION WIRE DIAGRAM
• Switch o the power.
• Loose the four screws on the cover and take down the cover.
• Connect the wire with the product as per the connection-wire diagram.
• According to the correct installation place, install the product with the en-
closed inflated screws.
• Install back the cover. Switch on the power,And then test it.
FIGURE INCORRECT CORRECT
The LED indicator inside the sensor will flash to display the preset times as following:
1. 1 hour: flash one time
2. 2 hours: flash two times
3. 3 hours: flash three times
4. 4 hours: flash four times
5. 5 hours: flash five times
6. 6 hours: flash six times
7. 7 hours: flash seven times
8. 8 hours: flash eight times
9. 9 hours: flash nine times
10. Dusk to dawn: rapidly flash ten times
Set the LUX knob to “3” position and set the time knob to “1h” position. When the ambient
light is less than 3 LUX, the red indicator light will turn on, aer 1 minute, the lamp will turn on.
1. In 1 hour, Ambient light < 3 LUX:
The lamp will hold on lighting for 1 hour. Aer 1 hour, it will turn o. The red indicator light will turn
o when the ambient light is more than 10 LUX.
2. In 1 hour, Ambient light > 10 LUX
The red indicator light will turn o, aer 1 minute, the lamp will turn o.
When set the Time knob to 2-9h, please can refer to above description to test.
Set the LUX knob to “3” position and set the time knob to “DUSK TO DAWN” position, if the ambient
light is less than 3 LUX, the red indicator light will turn on, aer 1 minute, the lamp will turn on and
hold on lighting. Only when the ambient light is more than 10 LUX, the red indicator light will turn
o, aer 1 minute, the lamp will turn o.

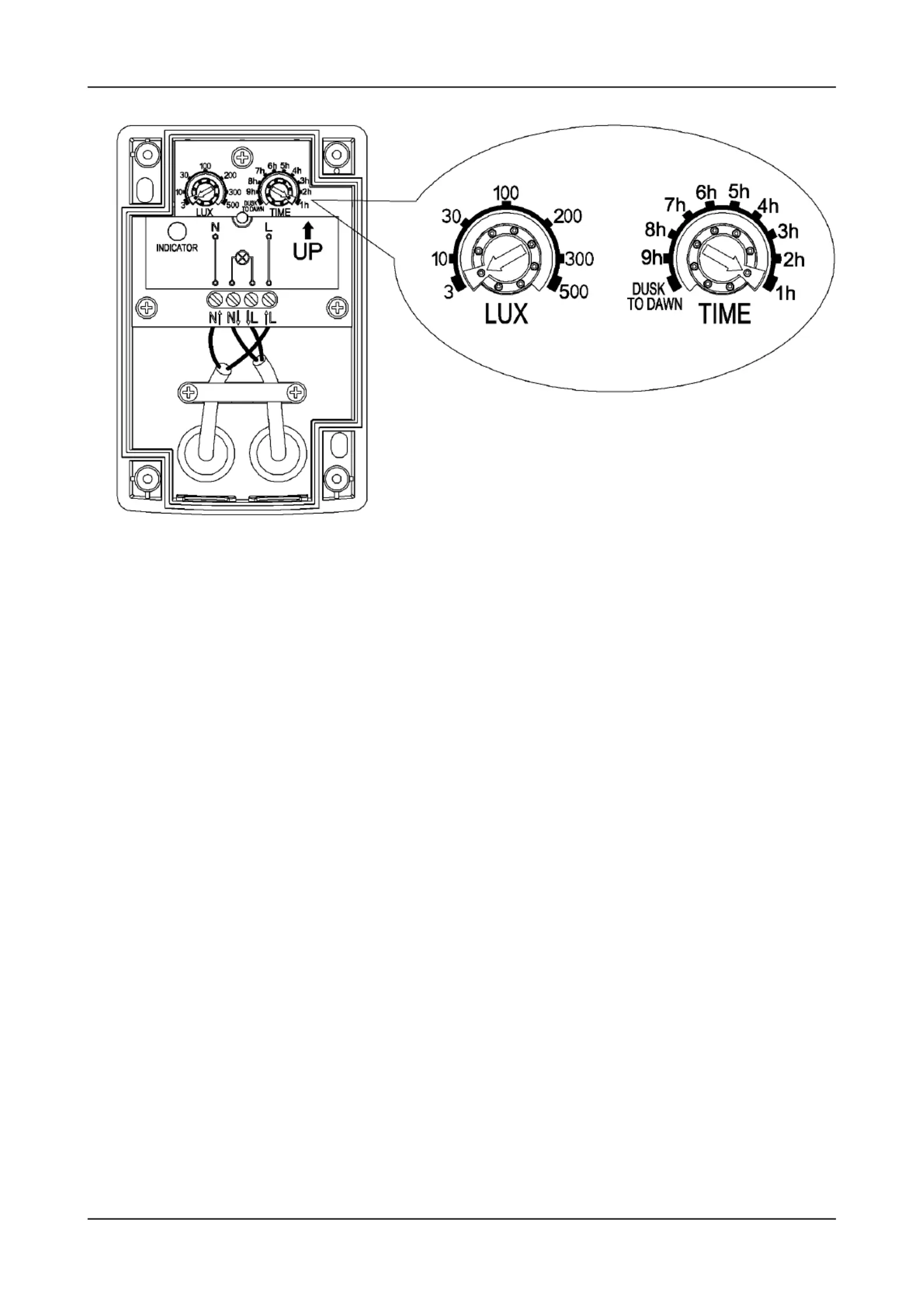

TIME SETTINGS
TEST
