In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code to
access the manual in multiple languages.
INSTRUCTION MANUAL
INFRARED MOTION SENSOR
TECHNICAL DATA
MODEL VT-81000
SKU 23162
INPUT POWER AC: 220-240V, 50/60 Hz
RATED LOAD Max. 2000W
1000W +LED
TIME DELAY Min. 10sec ±3sec
Max. 15min ±2min
DETECTION
RANGE 360°
DETECTION
DISTANCE 30m max (<24°C)
DETECTION
MOVING SPEED 0.6-1.5m/s
IP RATING IP20
WORKING
TEMPERATURE -20°C to +40°C
WORKING
HUMIDITY <93%RH
POWER
CONSUMPTION Approx, 0.9W
AMBIENT LIGHT <3-2000 LUX (Adjustable)
INSTALLATION
HEIGHT 2.2 - 4m
POWER
CONSUMPTION approx w0.9
DETECTION
MOTION SPEED 0.6-1.5 m/s
DIMENSION Ø103x53.5 mm
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions
carefully before starting the installation and keep this manual handy for future reference. If you have any another
query, please contact our dealer or local vendor from whom you have purchased the product. They are trained
and ready to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty
does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no
warranty against damage to any surface due to incorrect removal and installation of the product.
V-TAC LED
RANGE (UPTO 500W)
COMPATIBLE WITH
This marking indicates that this prod-
uct should not be disposed of with
other household wastes.
Caution, risk of electric shock.
FUNCTION
WARNING
1. Can identify day and night: The consumer can adjust working state in dierent ambient light.
It can work in the daytime and at night when it is adjusted on the “sun” position (max). It can
work in the ambient light less than 3LUX when it is adjusted on the “3” position (min). As for the
adjustment pattern, please refer to the testing pattern.
2. Time-Delay is added continually: When it receives the second induction signals within the first
induction, it will restart to time from the moment.
As the detector responds to changes in temperature, avoid the following situations
INSTALLATION ADVICE
CONNECTION
• Avoid pointing the detector towards objects with highly reflective surfaces,
such as mirrors etc.
• Avoid mounting the detector near heat sources, such as heating vents, air
conditioning units, light etc.
• Avoid pointing the detector towards objects that may move in the wind,
such as curtains, tall plants etc.

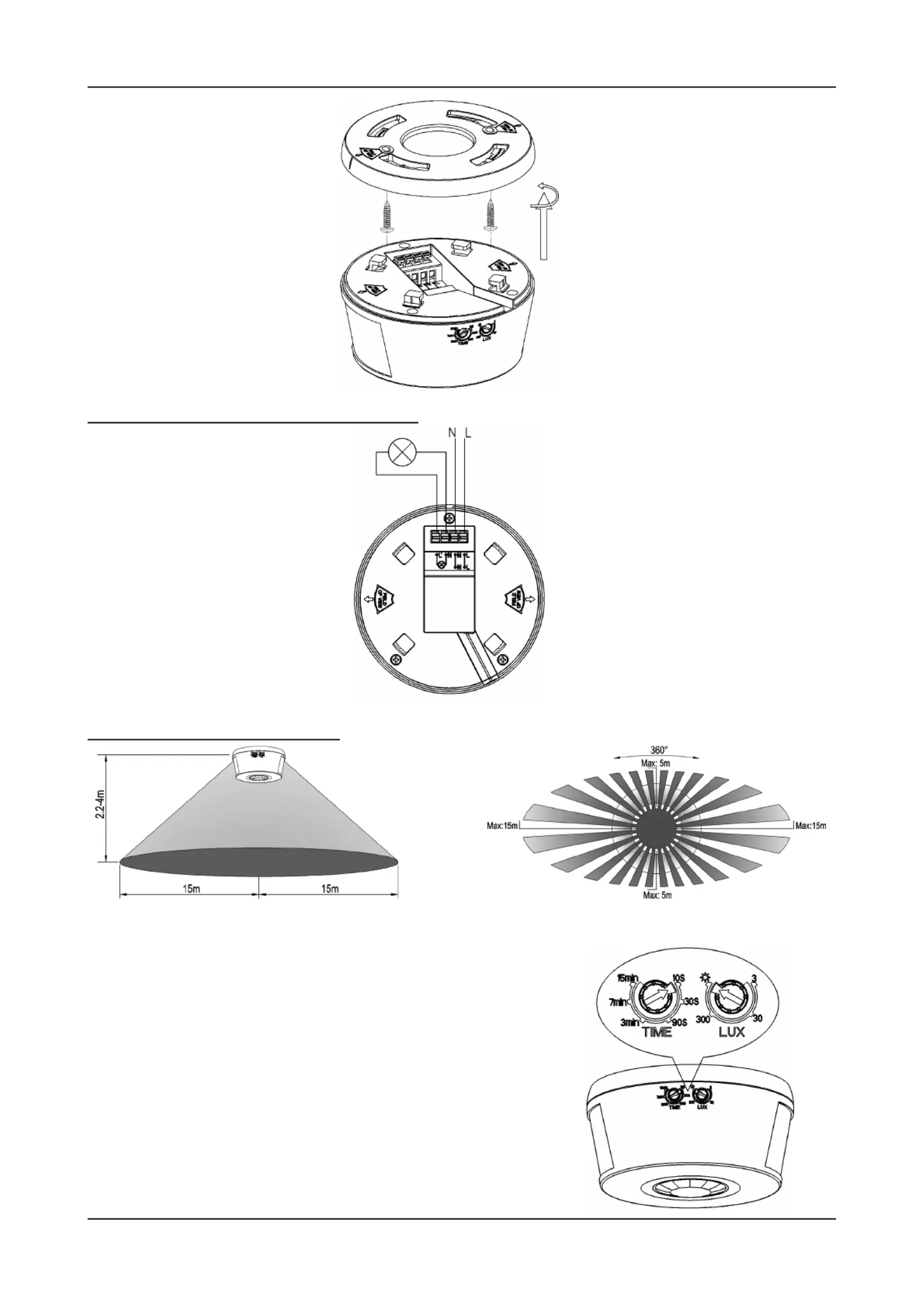

• Turn the bottom-cover anti-clockwise and unload it.
• The power wire goes across the hole in the middle of bottom-stand. Connect the power wire
into connection-wire column according to the connection-wire diagram.
• Fix the bottom-stand on the selected position with inflated screw.
• The sensor should be aimed at the mouth of bottom-stand and turned clockwise.
• Aer finishing installing, turn on the power and then test it.
Good Sensitivity Poor Sensitivity
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. For Indoor use only
• Turn the TIME knob anti-clockwise on the minimum
(10s).Turn the LUX knob clockwise on the maximum
(sun).
• Switch on the power; the sensor and its connected lamp
will have no signal at the beginning. Aer Warm-up
30sec, the sensor can start work. If the sensor receives
the induction signal, the lamp will turn on. While there
is no another induction signal any more, the load should
stop working within 10sec±3sec and the lamp would
turn o.
CONNECTION-WIRE DIAGRAM
SENSOR INFORMATION
Height of installation:2.2-4m Detection Distance: Max.30m
