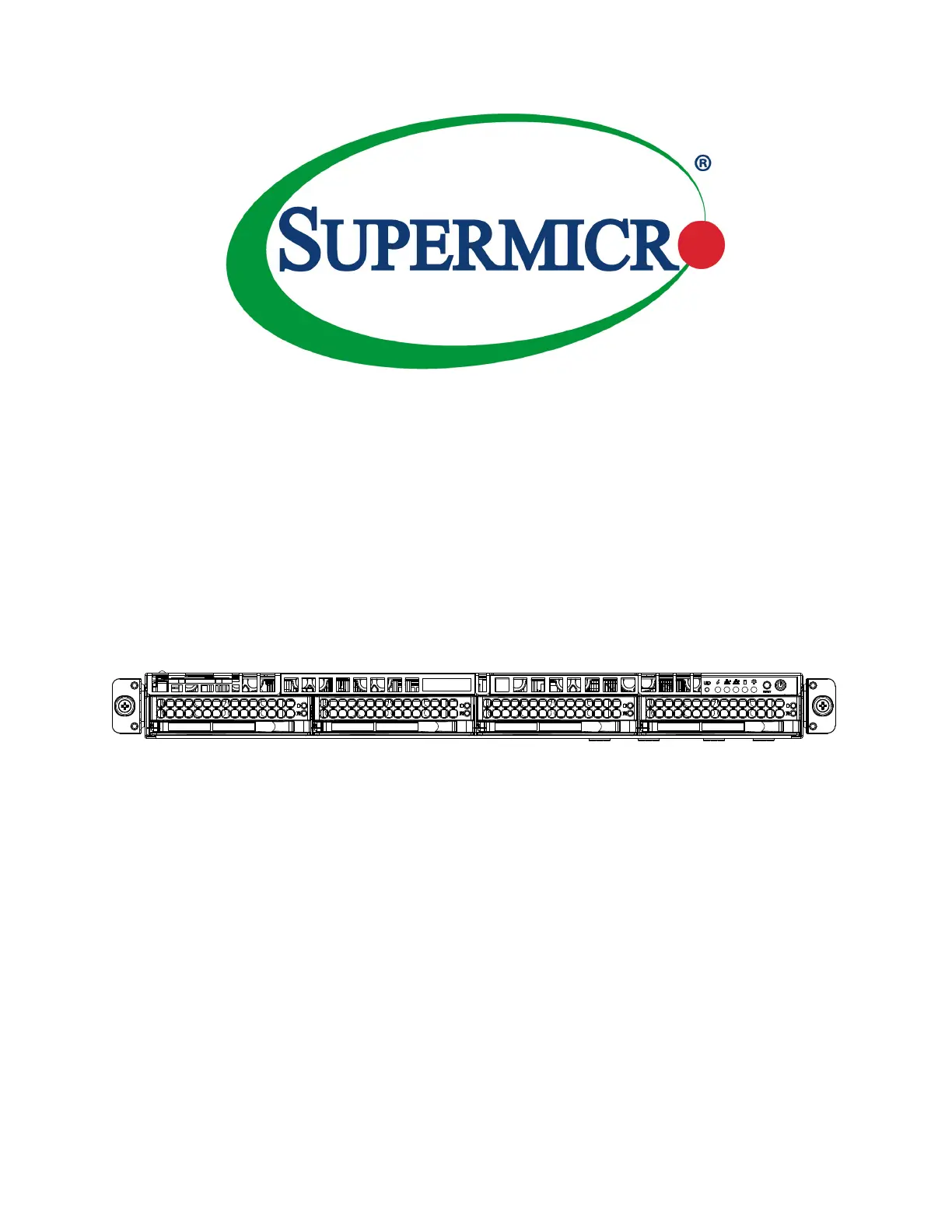

A+ Server AS -1024US-TNR Quick Reference Guide
Rear View
DescriptionNo.
1
2
3
4
5
6
7
8
9
2 PCI-E p1-x16 (FH/HL 9.5") Slots
PCI-E p1-x16 (LP) Slot
VGA Port
UID LED
Serial Port
Dedicated LAN for IPMI
2 USB 3.0 Ports
Ultra Riser Networking Slot*
Redundant Power Supply Modules**
Hard Drive Installation
Board Layout
* Check UIO detail from product website
** Redundancy based on configuration and application load
Insta g a Drivellin
1. Remove the dummy drive, by removing the screws securing the dummy drive to
the carrier. These screws are not used to mount the actual hard drive.
2. Insert a drive into the carrier with the PCB side facing down and the connector
end toward the rear of the carrier. Align the drive in the carrier so that the screw
holes line up.
3. Secure the drive to the carrier with four M3 screws, included in the chassis
accessory box.
4. Insert the drive carrier with the disk drive into its bay, keeping the carrier oriented
so that the release button is on the right side. When the carrier reaches the rear of
the bay, the release handle retracts.
5. Push the handle in until it clicks into its locked position.
CPU Installation
Caution
SAFETY INFORMATION
IMPORTANT: See installation instructions and safety warning before
connecting system to power supply.
http://www.supermicro.com/about/policies/safety_information.cfm
WARNING:
To reduce risk of electric shock/damage to equipment, disconnect power
from server by disconnecting all power cords from electrical outlets.
If any CPU socket empty, install protective plastic CPU cap.
WARNING:
Always be sure all power supplies for this system have the same power
output. If mixed power supplies are installed, the system will not operate.
For more information go to : http://www.supermicro.com/support
!
!
!
1. Removing the Processor Force Frame
Use a Torx T20 driver to loosen the screws holding
down Force Frame in the sequence of . The
3-2-1
screws are numbered on the Force Frame next to each
screw hole.
2. Raising the Force Frame 3. Lifting the Rail Frame
5. Inserting the Carrier Frame/CPU Package 6. Lowering the Force Frame 7. Securing the Force Frame
Secure the screws in the order 1-2-3, tightening to
16.1 kgf-cm (14 lbf-in) of torque. The Force Frame
secures both the Rail Frame and CPU Package.
Caution: Tightening must be executed in proper
1-2-3 sequence to avoid causing catastrophic
damage to the socket or CPU Package.
8. The Force Frame Secured
1. Mounting the Heatsink
Screw #1
Screw #2
Screw #3
Force Frame
Rail Frame
PnP Cover Cap
Carrier Frame/
CPU Package
#1 Screw
#2 Screw
#3 Screw
#4 Screw
Processor Installation
2. Securing the Heatsink
Using a diagonal pattern and a Torx T20 driver, tighten the four
heatsink screws evenly to 16.1 kgf-cm (14.0 lbf-in) torque.
4. Removing the External Cap and PnP
Cover Cap
External Cap
PnP Cover Cap
Heatsink Installation
Memory
JL1
JF1
FAN7
FAN8JF2
P2-DIMMA1
P2-DIMMB1
P2-DIMMA2
P2-DIMMC1
P2-DIMMB2
P2-DIMMD2
P2-DIMMD1
P2-DIMMC2
JVR1
FAN3
FAN4
FAN5
FAN6
P2-DIMMH2
P2-DIMMG2
P2-DIMMH1
P2-DIMMF2
P2-DIMMG1
P2-DIMME2
P2-DIMMF1
P2-DIMME1
P1-DIMMD2
P1-DIMMC2
P1-DIMMC1
P1-DIMMD1
P1-DIMMA1
P1-DIMMA2
P1-DIMMB1
P1-DIMMB2
CPU1CPU2
P1-DIMMG1
P1-DIMMG2
P1-DIMMH1
P1-DIMMF2
P1-DIMMF1
P1-DIMME2
P1-DIMME1
P1-DIMMH2 FAN1
FAN2
LE1
Power LED
Reset Button
Power LED
HDD LED
NIC1 LED & NIC2 LED
Information LED
UID button/LED
Hard Drive Signal
Hard Drive Fail
Description
1
2
3
4
5
6
7
8
9
No.
Release Button
Removing a Drive Carrier
Dummy Drive
Hard Drive Carrier
3
+
DESIGNED IN USA
H12DSU-iN
REV:
1 2
9
10
11
12
7
4 5
6
13 14 15 16 17 18
8
No. t nDescrip io
1SXB1 1 : -L s S t P PCI-E 4.0 )A/ B/1C WIO Ri er Card uppor (C U2 x32
2SXB2: S t P PCI-E 4.0 x )WIO-R Riser Card uppor (C U2 16
3SXB3 3 : t S t P PCI-E 4.0 )A/ B/3C Ul ra I/O Riser Card uppor (C U1 x40
4P1 NV 0/1 S A 7Me AT 0-
5S A 3.0 9AT 8-
6U 3.0 2SB
7P2 NV S A 3Me0 AT 10-1
8P2 V S A 7NM e1 AT 14-1
9P1 NV 3Me2-
10 P2 NV 3Me2-
11 U 3.0 4SB 3-
12 JBT1
13 P2 DI A s tsMM 1-D2 lo
14 CPU2
15 P2 DI E s tsMM 1-H2 lo
16 P1 DI A s tsMM 1-D2 lo
17 CPU1
18 P1 DI E s tsMM 1-H2 lo
DIMM Module Population equenc S e
W o l , t DI ts t e f g hen in allingst mem ry modu es he MM slo should be popula ed in th ollowin
order MM MM MMC2 MMD2 MM MM MM MMH2 he: DI A2, DI B2, DI , DI , DI E2, DI F2, DI G2, DI , t n
DI A1,MM DI B1, DI , DI , DI E1, DI F1, DI G1, DI .MM MMC1 MMD1 MM MM MM MMH1
•
• A ys use DI s of t s t , s s .lwa DDR4 MM module he ame ype ize and peed
• Mixed MM peed an be in alled Howeve all MM will run he speed DI s s c st . r, DI s at t of the
s t DI .lowes MM
• T he mo herboard suppor an odd number modules (1 Howevet ts of , 3, etc.). r, to e achieve th
bes memory per orman balanced memory popula ion is re ommendedt f ce, a t c .
Pro o a Their Co o M escess rs nd rresponding Mem ry odul
CPU# Cha el nn
1Cha el nn
2Cha el nn
3Cha el nn
4Cha el nn
5Cha el nn
6Cha el nn
7Cha el nn
8
8 DI SMM
CPU1 C2 D2 G2 H2
CPU2 C2 D2 G2 H2
16 MM DI S
CPU1 A2 B2 C2 D2 E2 F2 G2 H2
CPU2 A2 B2 C2 D2 E2 F2 G2 H2
32 MM DI S
CPU1 A1 A2 B1 B2 C1 C2 D1 D2 E1 E2 F1 F2 G1 G2 H1 H2
CPU2 A1 A2 B1 B2 C1 C2 D1 D2 E1 E2 F1 F2 G1 G2 H1 H2
93 167 45 28
Removing a Hot-Swap Drive Carrier from the
Chassis
1. Press the release button on the drive carrier, which will extend the
drive carrier handle.
2. Use the drive carrier handle to pull the drive out of the chassis.
Default Cable Routing
C or on onnect
Bo dar Card/ C n onn ioect
Backplane Quanti of ty
Dr vei s S e NMC Cabl P/
JSLIM1
(M -H12D U-iNB S ) SAS SAS 0/1/2/3 4 S A ves CBAT Dri L- T-1277-100
JSLIM2
(M -H12D U-iNB S ) NV 0/1 2 NV s CB T 5Me Me Drive L-SAS -1255-8
JSLIM4
(M -H12D U-iNB S ) NV 2/3 2 NV ves CB TMe Me Dri L-SAS -1252-85
Front View & Interface
HDD 0 HDD 1 HDD 2 HDD 3
UID
123456789
1
2
UID
