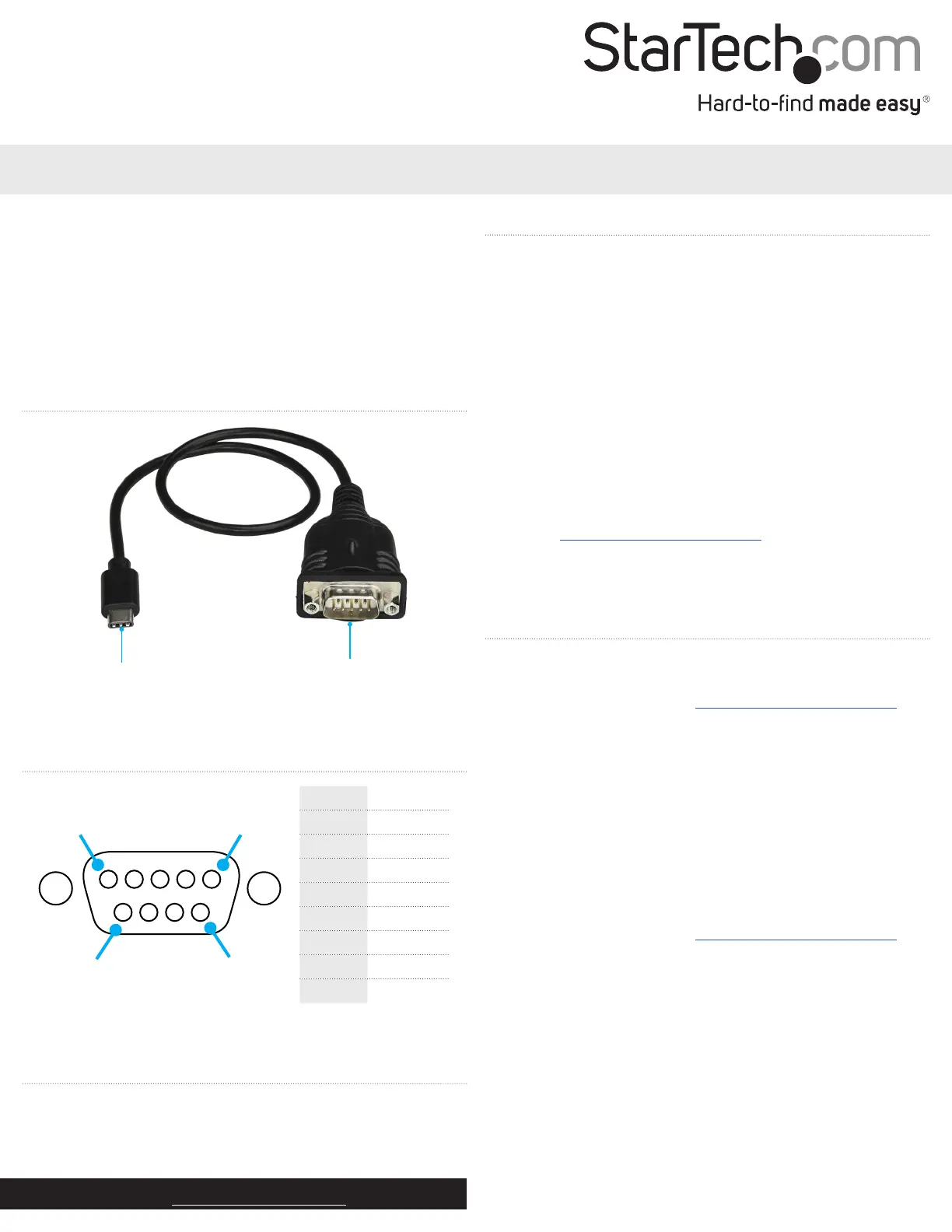

Quick-start guide

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

IT: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

PT: Guia do usuário - pt.startech.com

Manual Revision: 05/08/2017

For the latest information, technical specications, and support for

this product, please visit www.StarTech.com/ICUSB232C.

Package contents

• 1 x serial adapter cable

• 1 x quick-start guide

ICUSB232C

USB-C™ to RS232 Serial DB9 Adapter Cable

Pin 1 DCD

Pin 2 RXD

Pin 3 TXD

Pin 4 DTR

Pin 5 GND

Pin 6 DSR

Pin 7 RTS

Pin 8 CTS

Pin 9 RI

RS-232 DB9 male pinout

Requirements

• USB Type-C™ port

• A computer system running any of the following operating

systems:

• Windows® 10

• Windows 8.1

• Windows 8

• Windows 7

• Windows Server® 2016

• Windows Server 2008 R2

• Windows Server 2012 R2

• macOS 10.12

• macOS 10.11

• Linux® 2.6. to 4.4. LTS versions onlyx x

Requirement are subject to change. For the latest requirements,

please visit www.StarTech.com/ICUSB232C.

Product diagram

USB-C connector DB9M RS232 connector

Install the adapter cable

Windows

1. In a web browser, navigate to www.StarTech.com/ICUSB232C.

2. Click the tab.Support

3. Under , download the Driver(s) [Prolic_PL2303] Windows USB

Serial Adapter.zip le.

4. Right-click the folder that you downloaded and click .Extract All

5. Right-click the Setup.exe Run as Administratorle and click .

6. Follow the on-screen instructions to complete the installation.

7. When prompted, restart your computer.

8. Connect the serial adapter cable to a USB port.

macOS

1. In a web browser, navigate to www.StarTech.com/ICUSB232C.

2. Click the tab.Support

3. Under , download the Driver(s) [Prolic_PL2303] Mac USB Serial

Adapter.zip le.

4. Right-click the folder that you downloaded and click . Extract All

5. Double-click the folder.Mac

6. Double-click the folder for the version of macOS that you’re

running.

7. Run the installer application and follow the on-screen instructions

to complete the installation.

8. When prompted, restart your computer.

9. Connect the serial adapter cable to a USB port.

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum.

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two-year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Verify the installation

Windows

1. Navigate to .Device Manager

2. Expand the Ports (COM&LPT) section.

3. Conrm that Prolic USB-to-Serial Comm Port (COMx) appears in

the list with no exclamation points or question marks.

macOS

1. Navigate to the System Proler.

2. Expand the Hardware USBsection and click .

3. Conrm that USB-Serial Controller D appears in the list.
