Instruction Manual

DE: Bedienungsanleitung - de.startech.com

FR: Guide de l'utilisateur - fr.startech.com

ES: Guía del usuario - es.startech.com

I T: Guida per l'uso - it.startech.com

NL: Gebruiksaanwijzing - nl.startech.com

P T: Guia do usuário - pt.startech.com

Manual Revision: 04/10/2014

For the most up-to-date information, please visit: www.startech.com

Packaging Contents

• 1x USB to Serial Converter

• 1x Instruction Manual

System Requirements

• Windows® 7 (32/64bit), Vista (32/64), XP(32/64), 2000, ME, 98SE, CE

4.2, 5.2; Windows® Server 2008 R2, 2003(32/64); Mac OS 10.1, 10.4–

10.8; Linux 2.4.x – 3.9.x

• Available USB port on your computer

Installation

Windows

1. Open a web browser and go to www.startech.com/downloads.

2. Enter your product ID (ICUSB232) and click Search.

3. Select the product from the search results, and download the

available Prolic_PL2303.zip le.

4. Once downloaded, right-click the zip le and extract the contents.

5. Browse to the Windows folder and run the PL2303_Prolic_

DriverInstaller application, following the on-screen instructions to

complete the install.

6. Connect the USB Serial cable to an available USB port.

Mac

1. Open a web browser and go to www.startech.com/downloads.

2. Enter your product ID (ICUSB232) and click Search.

3. Select the product from the search results, and download the

available Prolic_PL2303.zip le.

4. Once downloaded, double-click the zip le to extract the

contents.

5. Browse to the Mac folder and choose the appropriate folder for

the version you are running.

6. Run PL2303_x.dmg application and follow the on-screen

instructions to complete the install.

7. Connect the USB Serial cable to an available USB port.

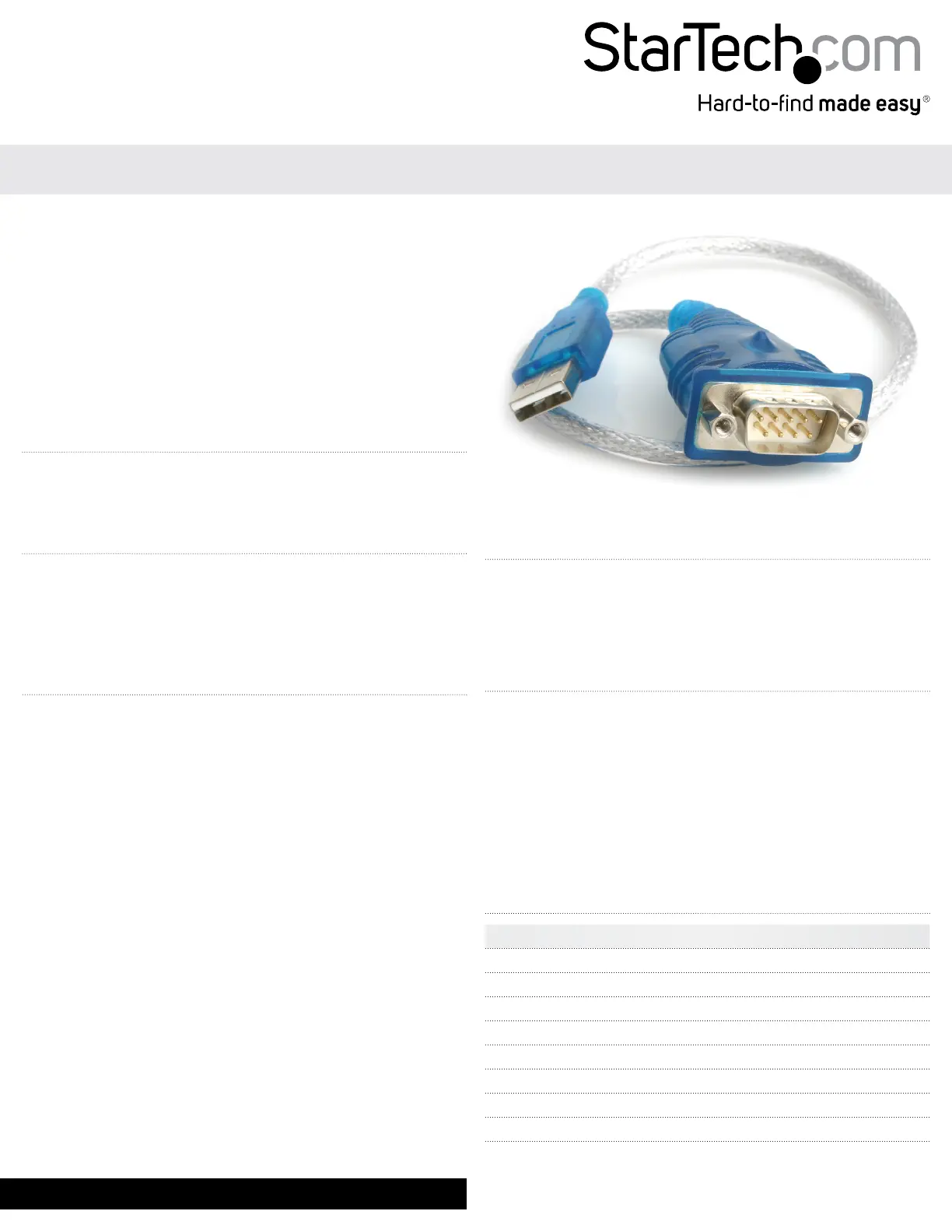

ICUSB232

USB to RS232 DB9 Serial Adapter Cable

*actual product may vary from photos

Verifying Successful Installation (Windows)

1. Open the System folder (My Computer, Control Panel, System).

2. Click the “Device Manager” tab at the top of the dialogue box.

3. Click the “+” in front of the Universal Serial Bus Controller heading

to see the USB controller listing. If the Installation is completed

successfully, you should see an entry for USB to Serial Cable.

Connecting Peripheral Devices

With the computer booted up and the USB Serial Adapter already

plugged into the computer’s USB port, plug the peripheral into the

USB Serial Adapter; then turn the peripherals On.

NOTE: This procedure only occurs the rst time you connect up

your peripheral. If your peripheral was previously connected

and congured for the RS-232 (COM) port, after you perform the

Adapter Installation and click Finish, the driver will detect it and

install it automatically.

DB9 Pin Assignments

Pin Assignment

1 CD

2 RXD

3 TXD

4 DTR

5 GND

6 DSR

7 RTS

8 CTS

9 RI

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s)

to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty Information

This product is backed by a two year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from

misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their ocers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental,

consequential, or otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow

the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.

Specications

Connectors USB Type A Plug

Serial DB9 Male

Data Transfer Rate Over 230 Kbps

Cable Length 35 cm

Power Mode USB Powered

USB Specication v1.1 Compliant

Operating Temperature 5C ~ 40C

Storage Temperature -20C ~ 60C

Humidity 0% ~ 80% RH

Material Plastic

Weight 60g
