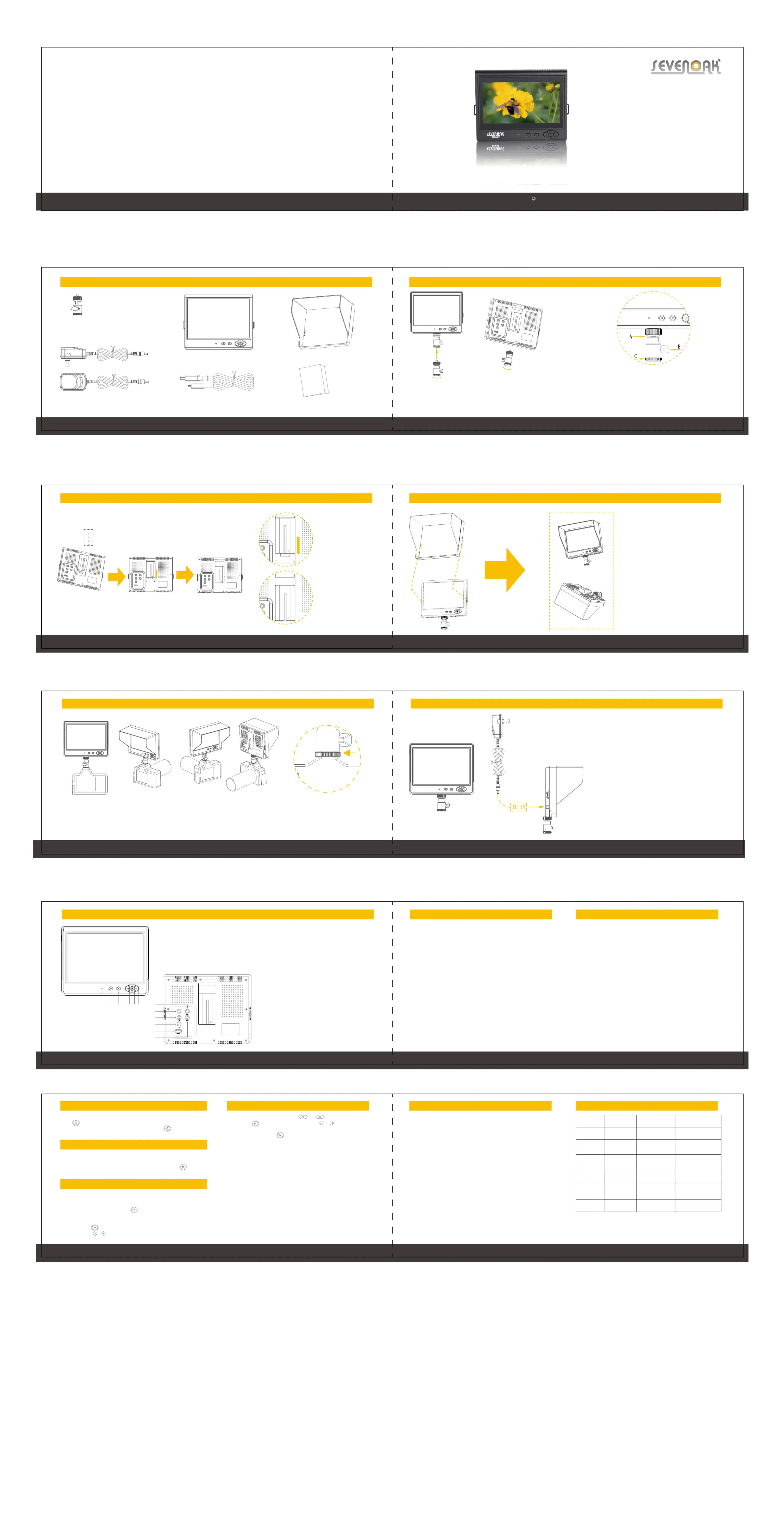

SK-LM7
7”On-camera monitor
Before using the product,please read this manual carefully.
Keep this manual safety in case you need to check during your usage.
Operate this product on base of your full understand of this manual.
Specifications subject to change without notice.
For more information,please visit www.sevenoak.biz
Standard shoe adapter *1
US standard Battery charger
7” monitor
HDMI cable
Sun shade
Manual
Attach the shoe adapter to the 1/4” screw hole
at the bottom of the monitor and lock it by rotating
the adapter clockwise.
Screw A: Shoe adapter and monitor locking screw, rotate it clockwise
to lock the shoe adapter and monitor.
Screw B: Angle adjusting screw, rotate it clockwise to lock, anti-
clockwise to loose.
Screw C: Shoe adapter locking screw, rotate it anti-clockwise to lock
and clock wise to loose.
Compatible battery: Sony NP-F550, NP-F570, NP-F330, NP-F530.
Push the batttery gently as the direction shown in the picture, slide it down till the
click, the battery is fixed into place.To release the battery, slide the battery out.
Slider down to install
the battery
Battery installed
properly
Insert the sun shade to the left and right
buckle kit, make sure the sun shade is fixed
properly.
After attaching the shoe adapter to the monitor, mount the shoe adapter to the camera hot shoe,
then lock the shoe adapter by rotating the shoe adapter locking screw C.
Loosen angle adjusting screw B, users
can adjust the monitor to a desired
position,then lock the angle adjusting
screw.
Power supply:
1. Compatible Sony battery
2. DC power supply, supports US standard adapter and Europe
standard adapter.
Battery charge:
1. Use Sony battery charger
2. Use the power adapter to supplement the battery charge
Power indicator:
Green: working state
Red: standby
Power on/o
Press it turn on the monitor,
Press it again to turn o the monitor
Input selection switch
HDMI/video1/video2/YPbPr
Left button: Press it to move left a menu page
Up button: Press it to move up a menu item
Menu/Enter button: Press it to show menu, or confirm
a menu item
Down button: Press it to move down a menu item
Right button: Press it to move right a menu page
Component Y jack
Component Pb jack
Component Pr jack
HDMI jack
Video 1 input
Video 2 input
③ ④⑤
⑦ ⑧
■ Please read and follow these instructions, and keep this
manual in a safe place.
■ Handle the unit with care.
■ Clean the unit with a soft, dry cloth.
■ Use only parts provided by the manufacturer.
■ Make sure everything is secure before proceeding.
■ Make sure the item is intact and that there are no
missing parts.
■ All photos are for illustrative purposes only.
Sevenoak provides a limited warranty that this product is free
from defects in materials and workmanship to the original
purchaser under normal use for a period of one (1) year from
the original purchase date or thirty (30) days after replacement
(the “Warranty Period”), whichever occurs later. Our responsibility
with respect to this limited warranty shall be limited solely to
repair or replacement, at its option, of any product which fails
during normal consumer use.
To obtain warranty coverage during the Warranty period,
contact your place of purchase (”Seller”) to obtain a return
merchandise authorization (”RMA”) number, and return to
Seller the defective product along with proof of purchase and
the RMA number.
This warranty does not extend to damage or failure which results
from misuse, neglect, accident, alternation, abuse, improper
installation or maintenance. EXCEPT AS PROVIDED HEREIN,
SEVENOAK MAKES NEITHER ANY EXPRESS WARRANTIES
NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR PURPOSE. This warranty
provides you with specific legal rights, and you may also have
additional rights which vary from state to state.
Install the battery/DC power supply, the LED indicator turns to Red,
Press button, the monitor is power-on, the LED indicator turns
to green. Press the the power switch for 2 seconds , the LED
indicator turns to Red, the monitor is power-o.
When the monitor is on, press the input signal selection button, enter
into the input signal selection menu: YPbPr, HDMI, Video 1 or Video 2.
Press up/down button to select the input signal, then press button
to confirm.
Before setting the menu functions, please make sure the device is
connected correctly. Turn the power (lower right corner of the unit)
dial to ON position.The monitor enters into working state. After
enter into working state, press the button on the unit, according
to select input video signal to switch “YPbPr, HDMI,Video 1,Video 2”
(under NO menu state, using the shortcut button on the panel to
operate). Press button on the unit, then enter into OSD menu
operation. Press or to move left or right a menu page (Picture/
Sound/Time/Options).
After selecting a menu page, press or to select menu
item, presss to enter into submenu, using or to Change the
value of the selected menu item, then press M to confirm. If you need
to exit OSD menu, press button again.
1.Picture Mode: Standard (default), Mild, User, Dynamic
2.Color Temperature: Medium (default), Warm, User, Cool
3.Aspect Ratio: Auto (default), 4:3, 16:9, Zoom1, Zoom2, Just scan
(Panorama)
4.Noise Reduction: O, low, Middle, High, Default (default)
5.Back light: 0-100
Sound
Not applicable
Time
1. Clock: Date, Month, Year, Hour, Minute
2. O time: O (default), Once, Every day, Monday to Friday, Monday
to Saturday, Saturday to Sunday, Sunday
3. On time: O (default), Once, Every day, Monday to Friday, Monday t
o Saturday, Saturday to Sunday, Sunday
4. Sleep time: O (default), 10min, 20min, 30min, 60min, 90min,120min,
180min,240min
5. Auto sleep: On, O (default)
Option
1. OSD language: Multi-language is optional, Default is English
2. Color range: 0-255 (Default), 16-235
3. Blending low: O, Low, Middle,, High (default)
4. OSD duration: O, 5sec, 10sec, 15sec
Other options are not aplicable in this product.
Model No. SK-LM7 Power supply
Screen 7” IPS TFT-
LCD Language
Aspect ratio 16:9/4:3/etc Input power
voltage range
Resolution
(WVGA) 800*480 Total current 250mA
Brightness 400cd/ m Power
consumption 3W
Viewing
Angle 50/70/70/70 Input signal HDMI YPbPr、 、
Video1 Video2
Weight 400g
Size (LWH) 192mm*150mm
*25mm
DV 9V
Multilanguage
Lithium battery
or DC adapter
2016 Sevenoak lnc.Visit us on the
web at www.sevenoak.biz
Components Install the shoe adapter
Attaching to the camera Power supply
Identifying the parts
Install the battery Install the sun shade
Limited One-year Warranty Warnings
On/o
Select input signal
Menu operating instruction
Menu operating instruction Menu operating instruction Specifications
