Seite 1/3
Features:
 Form-fitting cage
 Aluminum construction
 Comfortable wood grip
 Removable top hand grip
 Quick release plate
 Built in 1/4” and 3/8” mounting points
 Built in cold shoes
 A pair of 15mm standard rods
 Full access to camera’s controls, buttons, memory slot
and battery
SK-A7C1 is a portable aluminum cage kit built for the Sony A7,
A7S, A7R, A7 II, A7R II, A7S II which adds protection, stability
and mounting options to the camera. It includes form fitting
camera cage, wood grip, top hand grip, micro HDMI adapter
cable, HDMI plug protector, quick release base plate, cold shoes,
1/4” and 3/8” mounting points etc. The form fitting camera cage
allows full access to the camera’s controls, buttons, battery and
SD card slot. The cold shoes, 1/4” and 3/8” mounting points
allows you to mount dierent accessories.
The HDMI plug protector frees you from worrying about
wearing out or damaging the micro HDMI port by repeatedly
plugging or replugging a micro HDMI cable into your camera
body. It also helps to prevent your HDMI cable from accidentally
coming unplugged during a shoot which is particularly important
when using an external monitor or recorder.
The comfortable wood grip and removable top hand grip enable
users to switch from one to the other easily for dierent
shooting requirement. The built in 1/4” and 3/8” mounting
points as well as two cold shoes on the top hand grip enables
users to mount various kinds of useful accessories.
The cage also comes with quick release base plate and a pair of
15mm standard rods that allows you to remove and remount
the camera from the rods easily and quickly. With 1/4” and 3/8”
mounting points on the quick release plate, the cage can be
easily mounted onto or removed from a tripod, rig or other
device. Warnings
Limited One-year Warranty
Sevenoak provides a limited warranty that this product is free
from defects in materials and workmanship to the original
purchaser under normal use for a period of one (1) year from the
original purchase date or thirty (30) days after replacement (the
“Warranty Period”), whichever occurs later. Our responsibility
with respect to this limited warranty shall be limited solely to
repair or replacement, at its option, of any product which fails
during normal consumer use.
To obtain warranty coverage during the Warranty period,
contact your place of purchase (”Seller”) to obtain a return
merchandise authorization (”RMA”) number, and return to Seller
the defective product along with proof of purchase and the RMA
number.
This warranty does not extend to damage or failure which
results from misuse, neglect, accident, alternation, abuse,
improper installation or maintenance. EXCEPT AS PROVIDED
HEREIN, SEVENOAK MAKES NEITHER ANY EXPRESS WARRAN-
TIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT
LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE. This warranty provides
you with specific legal rights, and you may also have additional
rights which vary from state to state.
 Please read and follow these instructions, and keep
this manual in a safe place.
 Handle the unit with care.
 Clean the unit with a soft, dry cloth.
 Use only parts provided by the manufacturer.
 Make sure everything is secure before proceeding.
 Make sure the item is intact and that there are no
missing parts.
 Do not exceed the maximum load capacity.
 All photos are for illustrative purposes only.

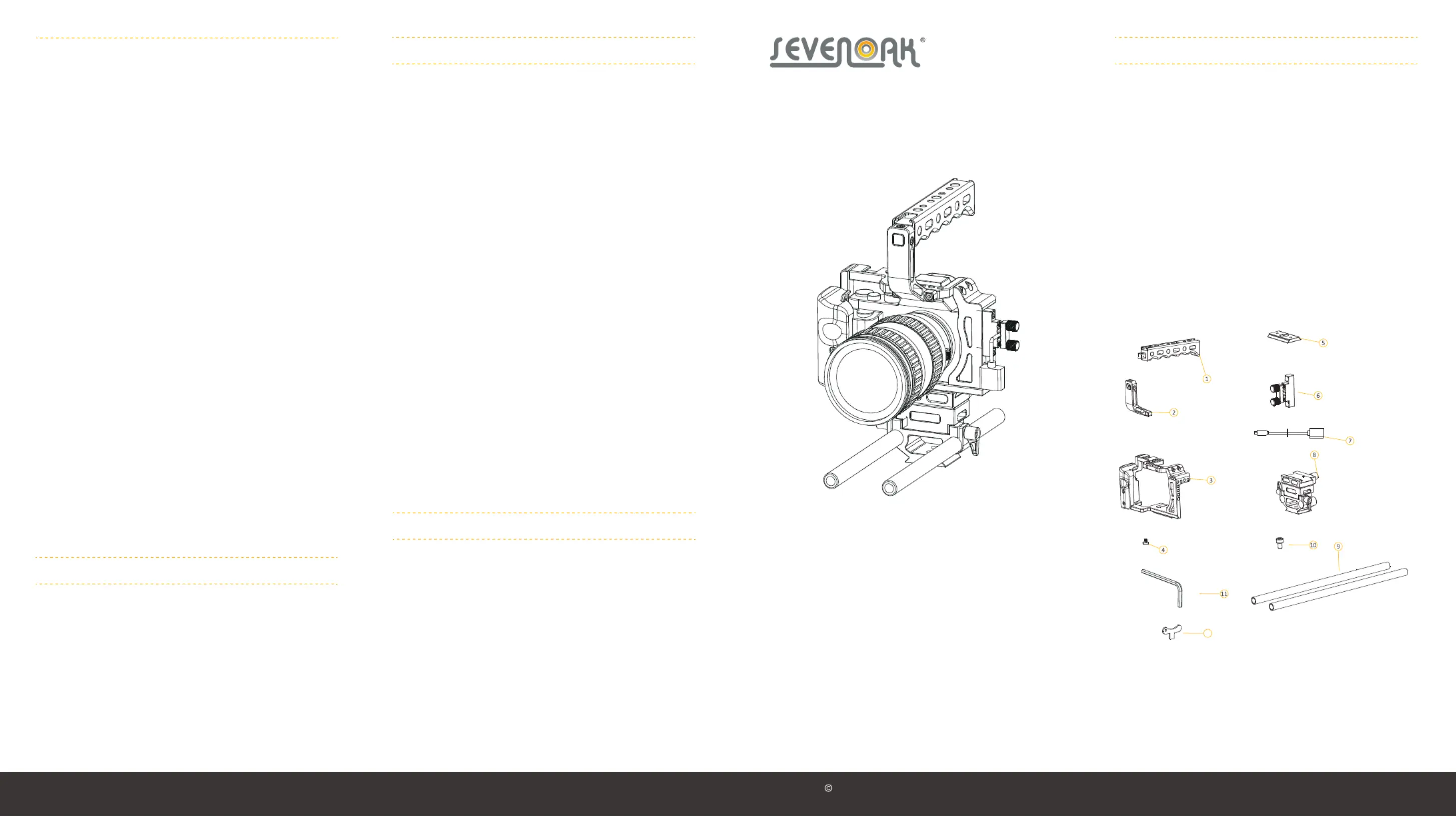

Components:
1. Top hand grip
2. Top hand grip connector
3. Main body
4. 1/4” camera locking screw
5. Quick release plate
6. HDMI plug protector
7. Micro HDMI adapter cable
8. Base plate
9. 2*15mm standard rods
10. M4 Screws
11. Allen Key
12. Key for camera locking screw
12
SK-A7C1
Cage Kit for Sony
A7, A7S, A7R ,A7 II , A7R II, A7S II
2016 Sevenoak lnc.Visit us on the
web at www.sevenoak.biz
Instruction Manual:
Step 1:
Use the included Allen key and three M4*6 screws to install the
top hand grip and the top hand grip connector as shown in the
below picture, ensure the screws are tightened.
Step 2:
Use the Allen key and two M4*8 screws to attach the top hand
grip to he main body as shown in the following picture, ensure
the screws are tightened.
Step 5:
Attach the HDMI plug protector to the main body as shown in
the following picture, use two M4*10 screws and Allen key to
lock the HDMI plug protector, make sure the screws are
securely fastened.
Step 3:
Turn the cage and camera upside down, put the camera into the
cage, make sure the camera locking screw point is right under
the locking point on the cage (see following picture), use the
1/4” screw to lock the camera, you may need to use a coin to
tighten the screw, make sure the camera is securely fastened.
Step 4:
Use two M4*8 screw to lock the quick release plate onto the
main body as shown in the below picture, tighten the screws
with the Allen key.
Step 6:
Insert the HDMI D (Micro) plug through the plug protector and into
the camera’s HDMI D (Micro) port. Secure the cable by tightening
the two plug protector screws.
Fit the HDMI plug through the gap in the plug protector and lock it
into place by tightening the plug protector screws.
Step 7:
Insert two 15mm rods into the base plate, fix the rods at a
proper position by tighten the screws on both sides of the base
plate.
Step 8:
Loosen the locking screw on the base plate, put the quick
release plate onto the base plate, lock the quick release plate by
tighting the locking screw on the base plate, make sure the
screw is securely fastened.
Now the basic installation is completed, it is ready for shooting.
You can add other accessories to this kit according to your
requirement. You can hold the wood grip or top hand grip while
shooting, or you can mount on tripod. After shooting, remember
to remove the camera from the cage.
