Seite 1/3
Compact Carbon Fiber Slider
SK-CFS80

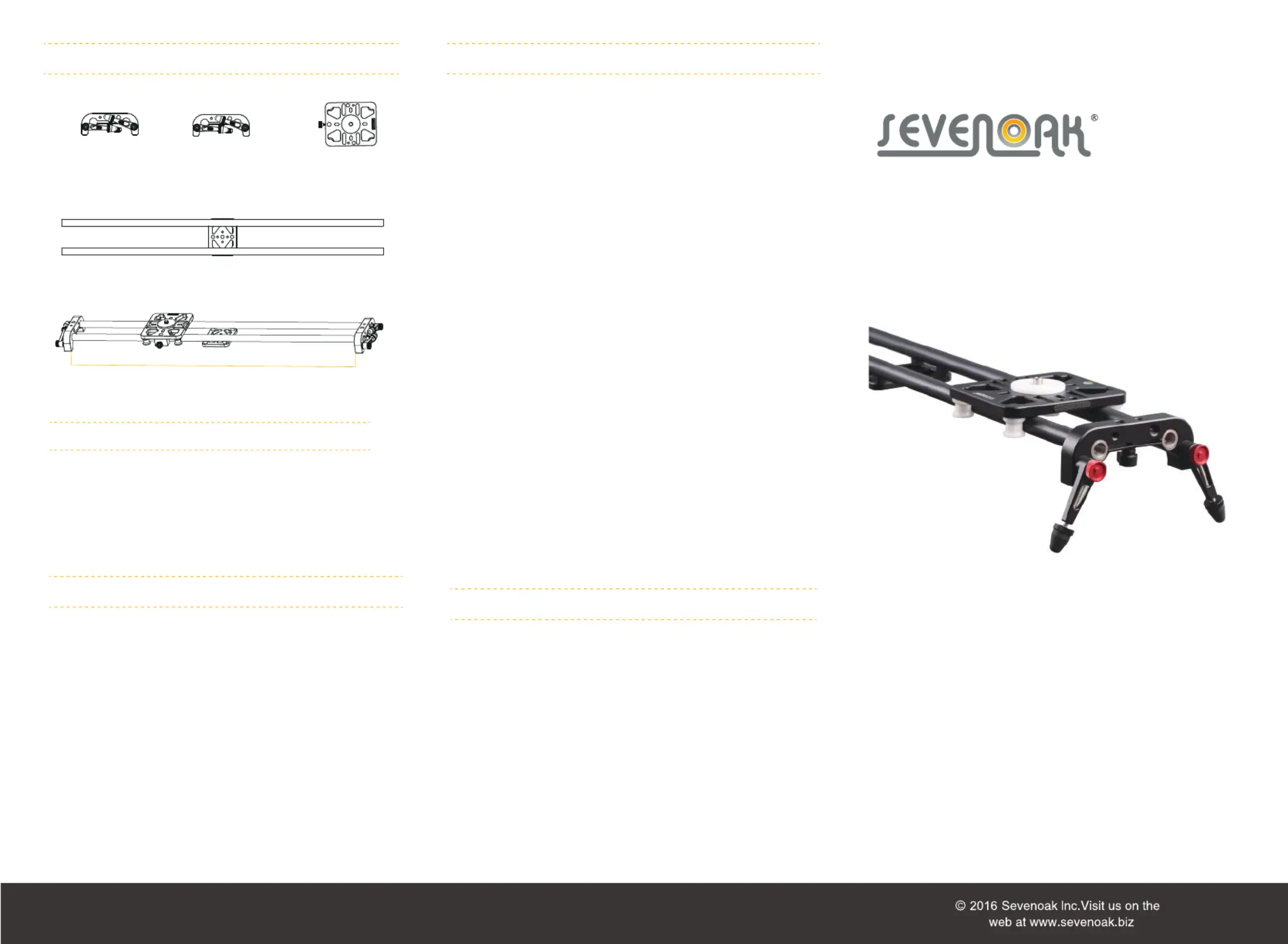

Components
Support feet
and tube fixer
Support feet
and tube fixer
Camera mounting
platform
Carbon fiber tubes and tripod mounting plate
80cm
Maximum load capacity: 7kg
Overall length: 84cm
Eective working distance: 80cm
Carbon fiber outer diameter: 18mm
Material: Carbon fiber and Aluminum
Specifications
1. Carbon fiber and aluminum construction
2. Light weight and durable
3. Quiet and smooth movement
4. Removable rotating plate
5. Foldable supporting feet
6. Built-in screw socket on carbon fiber tubes
7. Built-in 1/4” and 3/8” threaded screw holes
8. Extandable with extra carbon fiber tubes
Features
Limited One-year Warranty
Sevenoak provides a limited warranty that this product is free
from defects in materials and workmanship to the original
purchaser under normal use for a period of one (1) year from
the original purchase date or thirty (30) days after replaceme
nt (the “Warranty Period”), whichever occurs later. Our respon
sibility with respect to this limited warranty shall be limited
solely to repair or replacement, at its option, of any product
which fails during normal consumer use.
To obtain warranty coverage during the Warranty period,
contact your place of purchase (”Seller”) to obtain a return
merchandise authorization (”RMA”) number, and return to
Seller the defective product along with proof of purchase
and the RMA number.
Please read and follow these instructions, and keep this
manual in a safe place.
Handle the unit with care.
Clean the unit with a soft, dry cloth.
Use only parts provided by the manufacturer.
Make sure everything is secure before proceeding.
Make sure the item is intact and that there are no missing
parts.
Do not exceed the maximum load capacity.
All photos are for illustrative purposes only.
Warnings
This warranty does not extend to damage or failure which
results from misuse, neglect, accident, alternation,abuse,
improper installation or maintenance. Except as provided her
ein, sevenoak makes neither any express warranties nor any
implied warranties, including but not limited to any implied
warranty of merchantability or fitness for a particular purpose.
This warranty provides you with specific legal rights, and you
may also have additional rights which vary from state to state.
Instruction:
1. Insert the camera mounting platform onto the carbon
fiber tubes as shown in figure 2. If the camera mounting
platform is not able to be inserted onto the tubes, unscrew
the two screws on the rotating plate as shown in figure 1.
Rotate the plate clockwise to ensure the tubes can go
through, then rotate the plate counter-clockwise till the
wheels and the tubes are in proper position, tighten the
screws.
Rotating plate on camera
mounting platform
Rotating plate on camera
mounting platform
Note: The rotating plate on camera mounting platform is
adjustable, and it is designed to adjust the position of
the bearings on the rotating plate.
Loosen the locking screws Unfold the legs
2. Loosen the locking screws on the support feet, unfold the
legs, then tighten the lockings on the support feet again.
3. Loosen the tube fixer locking screw as shown below , insert
one of the tube fixer to one side of the tubes as shown
below, then tighten the tube fixer locking screw.
Tube fixer locking screw
4. Loosen the tube fixer screw as shown below, insert the other
tube fixer to the other side of the tubes as shown below, then
tighten the tube fixer locking screw.
Tube fixer locking screw
5. Adjust the height/angle of the feet according to your desire,
then fix the screws.You can add a tripod ball head (purchased
separately) on to the camera mounting platform which will
allow you to adjust the angle/position of the camera conv-
eniently, then mount the camera onto the tripod ball head, it
is ready to start shooting now.
Mount on a tripod
6. You can use SK-CFS80 standalone, or you can mount it
on tripod or two tripods as shown below, you can even
use it vertically as shown below.
Mount on two tripods
Use it vertically
