Qflash® CoPilot
QF91C (Canon)
QF91N (Nikon)
Shoe Mount Wireless Radio
Commander for Qflash 5d-R
and TRIO
Operating Instructions
IMPORTANT CAUTION –
Changes or modifications to this equipment could void your
authority to use this product under the equipment authorization
granted by the regulating agencies
Quantum Instruments Inc.
10 Commerce Drive, Hauppauge NY 11788-3968 USA
Tel: 1-631- -7400 Fax: 1-631-656-7410 656
www.qtm.com
P701
1 Introduction
Mount CoPilot to your camera hot shoe for simple, reliable wireless control
of remote flash units: CoPilot QF91N for Nikon, QF91C for Canon.
CoPIlot sends camera TTL signals to remote flashes to set and adjust
multi-flash lighting right from your camera position. CoPilot’s radio wireless
system works up to 300’ (100m) using the reliable FreeXwire system.
CoPilot controls the exposure of up to three independent Remote Groups of
flash units.
A Remote Group can consist of :
Quantum Trio
and / or
Qflash T5d-R with an FW8R or FW7Q receiver
and / or
Any non Quantum flash that can be triggered by a sync signal, with
A FreeXwire receiver.
A Remote Group may consist of any number of remote flash units. Each
Remoter Group receives its individual exposure setting according to the
setting on CoPilot mounted to your camera’s hot shoe.

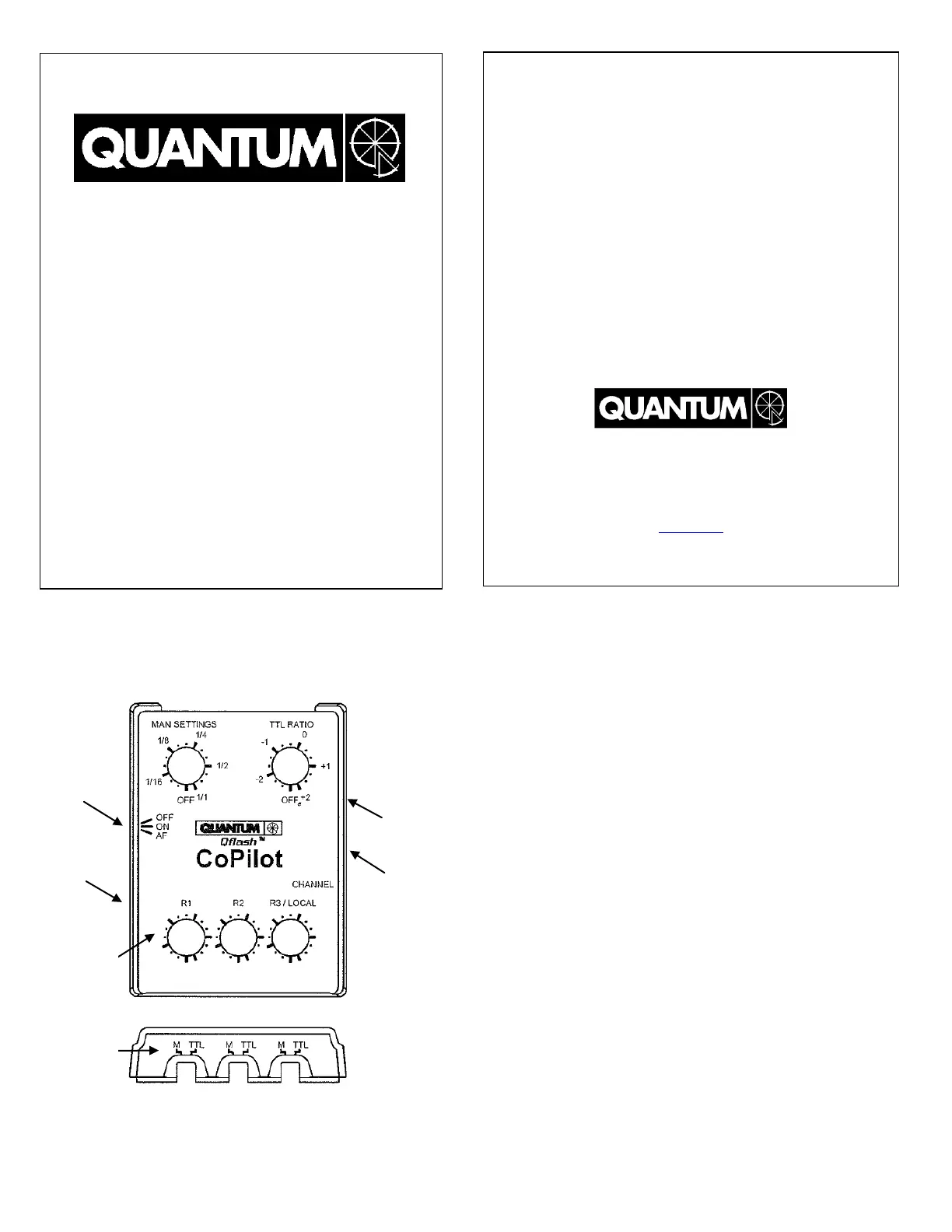

Channel select
switch 0 - 7
USB connector
ACCY connector
for Qflash T5d-R
ON
OFF
AF Auto –
Focus
Ratio / Manual
Power setting
control for Remote
R1, R2, R3
MAN TTL –
Mode switch for
Remote R1, R2, R3
2 Setting up the Remote Groups
Remote Group are designated , and Remote Groups can consist of any of the following: R1, R2 R3.
Quantum Trio set to â—Ź Remote Group R1, R2, R3
Qflash T5d-R set to â—Ź Wireless Group R1, R2. When used with
A FreeXwire FW8R or FW7Q receiver.
Any non Quantum flash connected to a FreeXwire FW8R or FW10w. â—Ź
2.1 Set up a Quantum Trio as a remote flash
On Trio, press the Mode button,
on the Trio, then use the Left or
Right arrow buttons to select
Wireless Remote Group.
Press one of the soft keys
(under the display) to choose
R1, R2, R3. or
Press the RADIO softkey to set
the channel. There are eight
channels available, 0 through 7.
All remote flash units must be
set to the same channel number.
NOTE: There is no need to set the when using ZONES Wireless Remote Groups with the . Trio
2.2 Set up a Qflash T5d- as a remote flash R
Qflash T5s do not have internal radios. Connect a FreeXwire FW8R or FW7Q for remote control via CoPilot.
On Qflash T5, press the Mode button then use the Up or Down buttons to select , Wireless Remote Group 1 Wireless Remote Group 2or .
The Qflash T5d-R may display a message that it needs a signal from the Local flash to activate this mode. The message will disappear when
you set up the CoPilot
Set the channel on the FW8R or FW7Q. There are eight channels available, 0 through 7. Set the same channel for all remote flash units.
NOTE: On the FreeXwire receiver, set all zones to ON.
2.3 Using a Non Quantum flash as a remote
Connect flash unit to a FW8 or FW10w receiver. Set the channel on the receiver to the same channel set on CoPilot (Section 3). a
Use the switches to select the remote group. Zone 1 Remote Group R1, Zone 2 Remote Group R2, Zone 3 Remote Group ZONE ON = ON = ON =
R3.
NOTE When using a non Quantum flash the CoPilot will provide a sync signal to fire the flash, but will not control the exposure. The MAN-TTL :
mode switch on CoPilot for this Group must be set to . M
MODE
SET
R G R EMOTE ROUP 1
A FUTO 5.6 7
FIRE OPT SAVE RADIO
+
-
MODE
/OK
SET
CH. 4
ZONES
RADIO OFF
OFF
SYNC
RX
LINK
+
-
WIRELESS GROUP R1
TO ACTIVATE CONTROL FROM
LOCAL QFLASH TURN LOCAL
QFLASH OFF THEN ON
3 CoPilot setup
The CoPilot can control the exposure of three Remote Groups ( ) or two Remote Groups (R1, R2, and R3 R1, R2) and a local Qflash T5d- R.
A Remote Group can consist of any flash set up as described in Sections 2.1, 2.2 or 2.3.
3 .1 No Local Qflash T5d-R connected
When no local flash is connected to the CoPilot ACCY connector, up to three remote groups may be set up, each with its own exposure setting.
Each Remote Group has two controls.
RATIO / MANUAL POWER SETTINGS this sets the exposure mode of the Remote Group. Ratio settings can be set from -2–7 to +2. Manual
power settings can be set from 1/16- to 1/1. This control also has an position. When set in the position the flash in the Remote Group OFF OFF
will not fire.
MODE switch this control sets the mode of the Remote Group to (manual) or–M TTL
Note : When using a non Quantum flash as a Remote Group set the MODE switch to M. Only a sync signal will be sent to the flash.
3 .2 Local Qflash connected
When a Qflash is connected to the CoPilot ACCY connector, Group R3 becomes the Local ratio control. A Local Qflash may be models QFT5-dR,
QF4Td, QF3d, or QF2d.
Remotes will operate in Groups onlyR1, R2 .
RATIO / MANUAL POWER SETTINGS this control adjusts the ratio of the local Qflash when the Qflash is in mode. Ratio settings can be –QTTL
set from -27 to +2.
MODE switch this control is disabled when a Qflash T5d-R is connected to the CoPilot–. The button on the local Qflash T5d-R overrides MODE
the mode setting.
