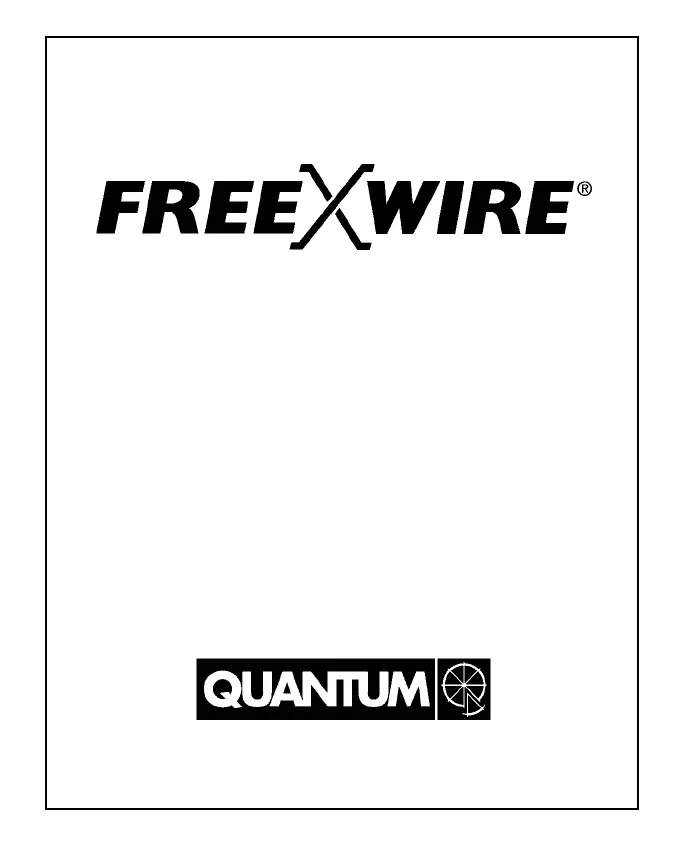

Seite 1/17
model FW7Q, FW8R
Digital Receivers
model FW9T
Digital Transmitter
Digital Wireless TTL Flash and Camera Trigger
OPERATING INSTRUCTIONS
★DESIGNED AND MANUFACTURED IN THE USA ★
Patent Pending
Contents
Section Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page
1.0 . . . . . . . . . . .Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
2.0 . . . . . . . . . . .Channel Code and Zone set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.0 . . . . . . . . . . .Wireless Flash setup -- with or without on-camera Flash . . . . . . . . . .7
4.0 . . . . . . . . . . .Wireless Shutter Release (motor drive) . . . . . . . . . . . . . . . . . . . . . . . .8
5.0 . . . . . . . . . . .Mounting FREEXWIRE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
6.0 . . . . . . . . . . .Changing Q ash settings via Wireless Remote . . . . . . . . . . . . . . . . .11fl
7.0 . . . . . . . . . . .Wireless QTTL®control for Digital Cameras
. . . . . . . . . . . . .& pre-flash Film Cameras . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
8.0 . . . . . . . . . . .Wireless TTL control for Film Cameras (non pre-flash) . . . . . . . . . . .14
9.0 . . . . . . . . . . .Wireless Auto mode for any Q ash without TTL Adapter . . . . . . . . .15fl
10.0 . . . . . . . . . .Remote Camera and Remote Off-Camera Flash Operation . . . . . . .16
11.0 . . . . . . . . . .Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
12.0 . . . . . . . . . .FREEXWIRE Performance Guide . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Appendix A . . . .Sync-in connections- camera to Transmitter FW9T . . . . . . . . . . . . .21
Appendix B . . . .Sync-out connections- Receiver FW8R to flash . . . . . . . . . . . . . . . .22
Appendix C . . . .Shutter Release (motor drive) cords- Receiver FW8R to camera . . .23
Appendix D . . . .QTTL®& TTL Wireless Adapters for Transmitter FW9T . . . . . . . . . .24
Appendix E . . . .Miscellaneous connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Appendix F . . . .Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Included with FREEXWIRE FW7Q:
Instructions, Hook and Loop mounting pads (cables and batteries not required))
Included with FREEXWIRE FW8R:
Pole mounting kit, 2x AAA batteries, Instructions, Hook and Loop mounting pads
Included with FREEXWIRE FW9T:
2x AAA batteries, Sync-in cord, Hook & Loop mounting pads, Instructions
Included with FREEXWIRE FW89 (set of Receiver and Transmitter):
FW8R, FW9T, and all accessories included with those models above
All specifications and features are subject to change, updating, and improvements.
Glossary
Qflash 2 series . . . . . . . . . . . . . . .refers
1.0 Introduction
We introduce the newest additions to the FREE
XWIRE system: Receivers FW8R,
FW7Q and Transmitter FW9T. Transmitter FW9T emits higher power for extended
range. Receiver ed operation. is ded-FW8R has extra sensitivity and simplifiFW7Q
icated to, and designed for any Q ash 4 or 5 series fl flash. FW7Q, FW8R and FW9T
are fully compatible with all other FREE
XWIRE system components. Transceiver
FW10 may be upgraded for additional features of Section 7.0.
Wireless Sync, Wireless Shutter - Working with all popular ashes and cameras,fl
FREEXWIRE s provide wireless sync for remote flash and/or wireless shutter control
for remote camera operation.
Wireless TTL flash control: FW8R, FW7Q and FW9T, in conjunction with Dw
series Adapters and Q ash 5d ashes, provide wireless “QTTL” fl fl flash control from
digital and lm cameras. This wireless QTTL feature also transmits the “pre-fi flash”
signal utilized by many digital and lm cameras to determine exposure values.fi
Qflash 4 series (QFT4d, QFX4d) can be upgraded to Qflash 5 series via software
update.
FREEXWIRE controls four independent Zones for wireless flash or wireless shutter
release. You can activate any one Zone, or any combination of Zones 1,2,3 and 4.
Switch your lighting instantly, remotely. Select and trigger ash, cameras, or combi-fl
nations of them, from your remote position.
FREEXWIRE FREEalso has eight unique Channel Codes. X
WIRE units set to one
Channel cannot activate FREE
XWIRE ’s set to different Channels. You control the
Channel Code to make FREEXWIRE units work together or independently, as
required.
FREEXWIRE is very small
and light and mounts
easily to cameras, brack-
ets, poles, and tripod legs.
Sync and Shutter Release
(motor drive) Cords are
available for popular cam-
eras and flashes. You can
mount Transmitter FW9T
directly on a camera’s hot
shoe using optional
UniMod FW11 or Hot Shoe
Adapter FW12.
4
2.0 Channel Code and Z
FW7Q FW8R FW9T
