Seite 1/14
ENGLISH
Music for You

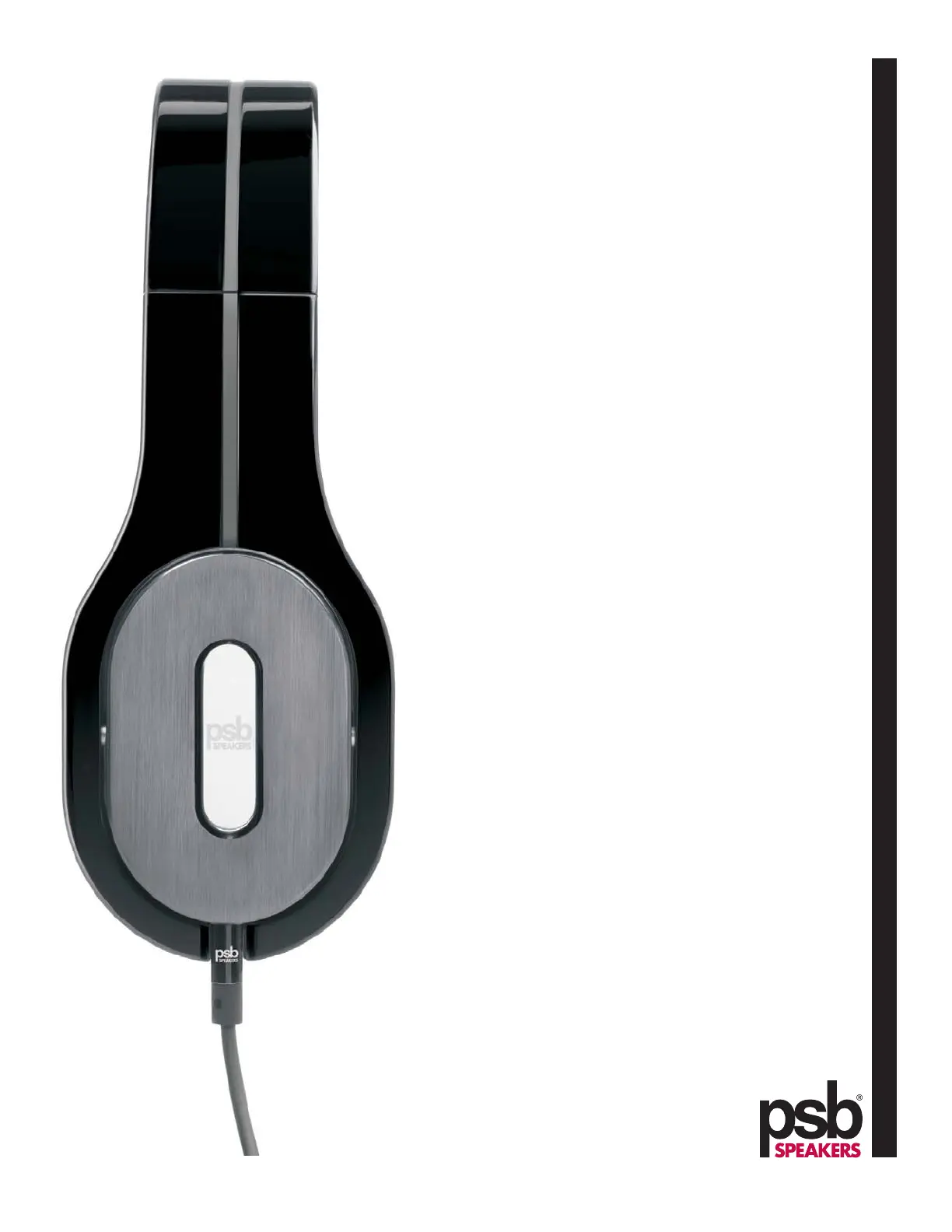

M4U Over Ear Headphones Owner’s Guide
INTRODUCTION
SAFETY INFORMATION
Thank you for purchasing a pair of PSB Speakers M4U Headphones, a highly developed set of headphones that
captures all the sounds from your music and video collections, and brings them into your personal space. Producing
natural musical dynamics and precisely imaged sound, these hi-fi headphones will bring you closer to the music you
love.
Engineered with over 40 years of audio excellence and research, the M4U Headphones from PSB Speakers will
deliver unmatched sound quality, all-day comfort and fold-and-go portability for today's music enthusiasts and
professionals. With PSB's true-to-nature sound quality and stylish ergonomic designs, you can escape to a personal
concert experience that will travel anywhere with you.
By supplying this Owner's Guide, we hope you will read through this booklet to help assure that you are getting the
most out of your PSB product and your music.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The Occupational Safety Health Administration (OSHA) has issued headphone usage recommendations for maximum
daily exposure and sound pressure levels [measured in decibels (dB)]. A decibel is a unit of sound measurement that
increases exponentially with volume. For example, conversational speech is typically around 60dB, and a rock
concert in a stadium is often about 110dB.
Maximum Sound Pressure Level Recommended For Daily Use (see below):
OSHA Guidelines for Noise Exposure Limits
Figure 1
ENGLISH
Keep batteries out of reach of children.
Do not attempt to modify this product as it could result in personal injury and/or product failure.
If water or other foreign substances permeate inside the device, fire or electric shock may result.
Long-term exposure to loud music may cause permanent hearing damage. To avoid personal injury when using
the headphones, the volume should be kept at the described levels in Figure 1, especially for extended
listening periods.
Warnings or announcements may be unnoticed when you are using the headphones. You should be aware of
ambient sounds while wearing the headphones, and recognize them as needed.
WARNING:
Figure 1
Avoid as Damage May Occur
15 Minutes30 Minutes1 Hour105dB
8 Hours
90dB 95dB 4 Hours 100dB 2 Hours
120dB
110dB 115dB
2
CONNECTING…
Before making any connection, make sure your audio source is powered off as
severe damage to equipment and/or your ears could result if audio source is left on.
To connect your headphones, plug the 1/8-inch (3.5mm) straight connector into
one of the inputs located at the base of the left (L) or right (R) ear cup, allowing
the user to pick a preferred side for a more comfortable listening setup as shown
in .
If your audio equipment uses a 1/4-inch (6.3mm) output jack, use the included
1/4-inch adaptor.
Power Switch Controls on the Active M4U Headphones
Figure 2
1/4-inch Adaptor
ENGLISH
Position A: Passive Mode (Figure 3a)
In Passive mode, noise cancelling is turned off. The headphones are powered by your audio
source. No power required.
Position B: Active Mode (Figure 3b)
In Active mode, the internal headphone amplifier is active. The 3-position Power Switch will be
“ ”. It requires two AAA batteries to be installed in the headphones.RED
Position C: Active Noise Cancelling Mode (Figure 3c)
In Active Noise Cancelling mode, you have activated the “Noise Cancelling” feature, and the
internal headphone amplifier. The 3-Position Power Switch will be “ ” It requires two
AAA batteries to be installed in the headphones.
GREEN .
Low Battery Power Indicator
If in Position B or C (active), the 3-Position Power Switch will be “ ” if your battery power is low, therefore you
will soon need to replace the batteries.
AMBER
Figure 2
Figure 3a
Figure 3b
Figure 3c
3

Produktspezifikationen

Marke: PSB
Kategorie: Hoofdtelefoon
Modell: M4U 2
