Seite 1/12

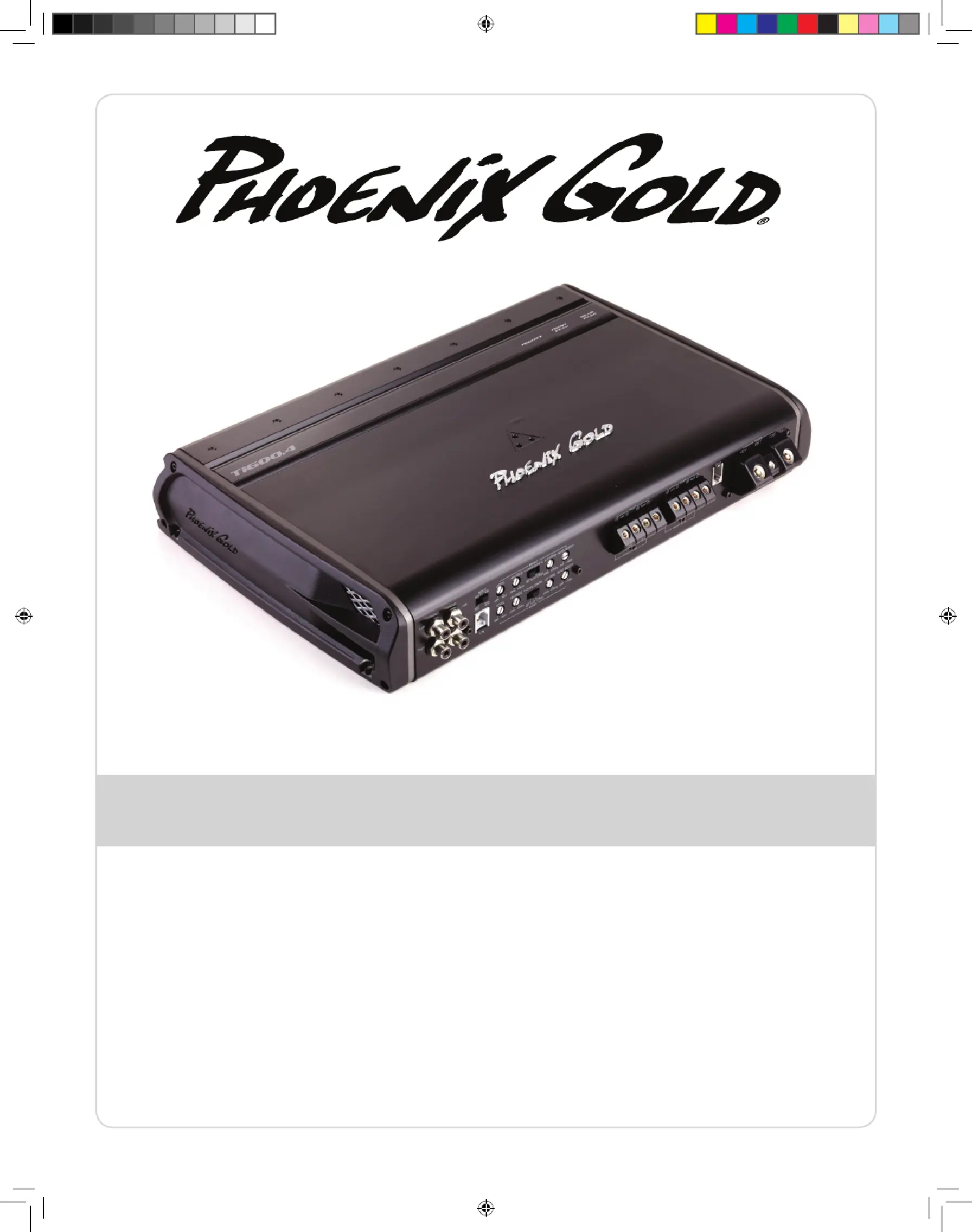

Amplifier Manual
Manuel de lāamplificateur
Features
Models: Ti1500.1, Ti2500.1
Ti600.4, Ti800.4
Ā© 2010 Phoenix Gold ā¢ www.phoenixgold.com
ā¢ī 24dBīVariableīLowīPassīandīSubsonicīCrossoversī(Ti2500.1,īTi1500.1)
ā¢ī 18dBīVariableīHighīandīLowīPassīCrossoversī(Ti800.4,īTi600.4)
ā¢ī Crossoversīfeatureī41īDetentsīforīExactīFrequencyīSelection
ā¢ī AudiophileīBi-PolarīOutputīTransistorsī(Ti800.4,īTi600.4)
ā¢ī HighīEfīciencyīClassīDīTopologyī(Ti2500.1,īTi1500.1)
ā¢ī MassiveīUnregulatedīPowerīSuppliesīfeaturingīHandīWoundīTransformers
ā¢ī PowerīOutputīPeakīIndicators
ā¢ī 1/0īGaugeīDirectīInsertīPowerīTerminals
ā¢ī LPL44ī-īLowīPassīLevelīControlīReady
ā¢ī RMDī-RemoteīMonitoringīDisplayīPort
ā¢ī AdvancedīThermalīandīProtectionīCircuitry
phoenix gold ti amp manual.indd 1 3/2/10 11:20:39 AM
Ampliīer Ownerās Manual
Ā© 2010 Phoenix Gold ā¢ www.phoenixgold.com
MONOBLOCK SPECIFICATIONS
Frequency Response: Ā± 1dB from 20Hz to 300Hz
Signal to Noise Ratio: >90dB
Subsonic and Low Pass Crossovers: 24dB per octave
Low Pass Crossover Range: 30Hz to 300Hz
Subsonic Crossover Range: 10Hz to 55Hz
Bass Boost @ 45Hz: 0 to +18dB
Low Level Input Range: 200 millivolts to 8 volts
Lowest Recommend Load: 1 ohm
Typical Efīciency: 80%
Damping Factor: Greater than 200
FOUR CHANNEL SPECIFICATIONS
Frequency Response: Ā± 1dB from 20Hz to 20kHz
Signal to Noise Ratio: >110dB
High and Low Pass Crossovers: 18dB per Octave
Low Pass Crossover Range: 40Hz to 400Hz
High Pass Crossover Range: 20Hz to 400Hz
Bass Boost @ 45Hz: 0 to +18dB
Low Level Input Range: 200 millivolts to 8 volts
Lowest Recommend Load: 4 ohm Bridged or 2 ohm Stereo
Typical Efīciency: 50%
Damping Factor Greater than 200
Ti1500.1
Dynamic Power 14.4Vdc >1% THD 1100 x 1 @ 2 ohm
1500 x 1 @ 1 ohm
RMS Power 14.4Vdc ā¤ 1% THD 900 x 1 @ 2 ohm
1250 x 1 @ 1 ohm
Recommended Fuse Size: 100A
Minimum Power/Ground Wire Size: 4 Gauge
Dimensions: 16.85ā L x 9.8ā W x 2.5ā H
428mm x 252mm x 62mm
Ti2500.1
Dynamic Power 14.4Vdc >1% THD 1500 x 1 @ 2 ohm
2500 x 1 @ 1 ohm
RMS Power 14.4Vdc ā¤ 1% THD 1100 x 1 @ 2 ohm
1650 x 1 @ 1 ohm
Recommended Fuse Size: 200A
Minimum Power/Ground Wire Size: 1/0 Gauge
Dimensions: 20.4ā L x 9.8ā W x 2.5ā H
518mm x 252mm x 62mm
Ti600.4
Dynamic Power 14.4Vdc >1% THD 100 x 4 @ 4 ohm Stereo
150 x 4 @ 2 ohm Stereo
300 x 2 @ 4 ohm Bridged
RMS Power 14.4Vdc ā¤1% THD 90 x 4 @ 4 ohm Stereo
120 x 4 @ 2 ohm Stereo
240 x 2 @ 4 ohm Bridged
Recommended Fuse Size: 80A
Minimum Power/Ground Wire Size: 4 Gauge
Dimensions: 16.85ā L x 9.8ā W x 2.5ā H
428mm x 252mm x 62mm
Ti800.4
Dynamic Power 14.4Vdc >1% THD 125 x 4 @ 4 ohm Stereo
200 x 4 @ 2 ohm Stereo
400 x 2 @ 4 ohm Bridged
RMS Power 14.4Vdc ā¤1% THD 115 x 4 @ 4 ohm Stereo
150 x 4 @ 2 ohm Stereo
300 x 2 @ 4 ohm Bridged
Recommended Fuse Size: 100A
Minimum Power/Ground Wire Size: 4 Gauge
Dimensions: 20.4ā L x 9.8ā W x 2.5ā H
518mm x 252mm x 62mm
Specifications
phoenix gold ti amp manual.indd 2 3/2/10 11:20:39 AM
Ā© 2010 Phoenix Gold ā¢ www.phoenixgold.com
Ampliīer Ownerās Manual
INPUT
Connectīpreampīsignalīcablesīfromītheīheadīunitītoītheseīterminals.
OUTPUT
Providesīaīfullīrangeīsignalīforīanīadditionalīampliīer.īThereīisīnoīsignalī
lossīifīusingīthisīoutput.
CROSSOVER FREQUENCY
Controlsītheīlowpassīcrossoverīpointīforītheīspeakerīoutputs.ī
BASS BOOST
Variableībassīboostīfromī0ītoī+18dBī@ī45īHz.ī
LOW PASS LEVEL CONTROL (LPL)
Thisīportīisīforīconnectingītheīoptionalīremoteīlevelīcontrolī(LPL44).īThisī
allowsīupītoī20dBīofīvolumeīadjustment.īīThisīisīnotīaībassīboost,īitī
controlsītheīlevelīofītheīlowīpassīsignal.
REMOTE MONITORING DISPLAY (RMD)
ConnectīoptionalīRMDīVoltageīDisplayītoīthisīport
LEVEL
Usedītoīreachīmaximumīampliīerīpowerīwithīaīwideīvarietyīofīheadunits.
SUBSONIC CROSSOVER FREQUENCY
Controlsītheīhighpassīcrossoverīpointīforītheīspeakerīoutputsītoīeliminateīextremeī
lowīfrequencies.ī
PEAK INDICATOR
Lightsīwhenītheīampliīerīreachesīnearīmaximumīoutput.īUnderīnormal
operationītheīpeakīindicatorīshouldībeīī
ashingīduringītheīpeaksīofīthe
music.īPeakīindicatorīshouldīnotīstayīlitīforīlongīperiodsīofītimeī(more
thanī2īorī3īseconds),īifīthisīisītheīcaseīyouīneedītoīreduceīsystemīvolume
orīlevelīofītheīampliīer.
PROTECT INDICATOR
Lightsīredīifīthereīisīaīproblemīwithītheīaudioīsystem.īForīexample,īspeakerīwireīisī
pinched/shortedītogetherīorītheīampliīerīisīrunningītooīlowīofīanīimpedance.
12V+
Thisīmustībeīconnectedītoītheīfusedīpositiveīterminalī(+12V)īofītheīcarāsī
battery.īTheīfuseīmustībeīlocatedīwithinī18īinchesīofītheībattery.ī
REMOTE
Thisīmustībeīconnectedītoīswitchedī+12V,īusuallyīaītriggerīwireīcomingī
fromītheīheadīunitīorīignition.ī
GND
Thisīmustībeīconnectedītoītheīnegativeīterminalīofītheīcarāsībatteryīorī
boltedītoīaīclean,īunpaintedīpartīofītheīchassisīofītheīvehicle.
SPEAKER OUTPUTS
Usedītoīconnectītheīampliīerītoīspeakers.īMinimumīimpedanceīisī1īohm.
ti2500.1 - ti1500.1
Monoblock Power Amplifier
phoenix gold ti amp manual.indd 3 3/2/10 11:20:40 AM
