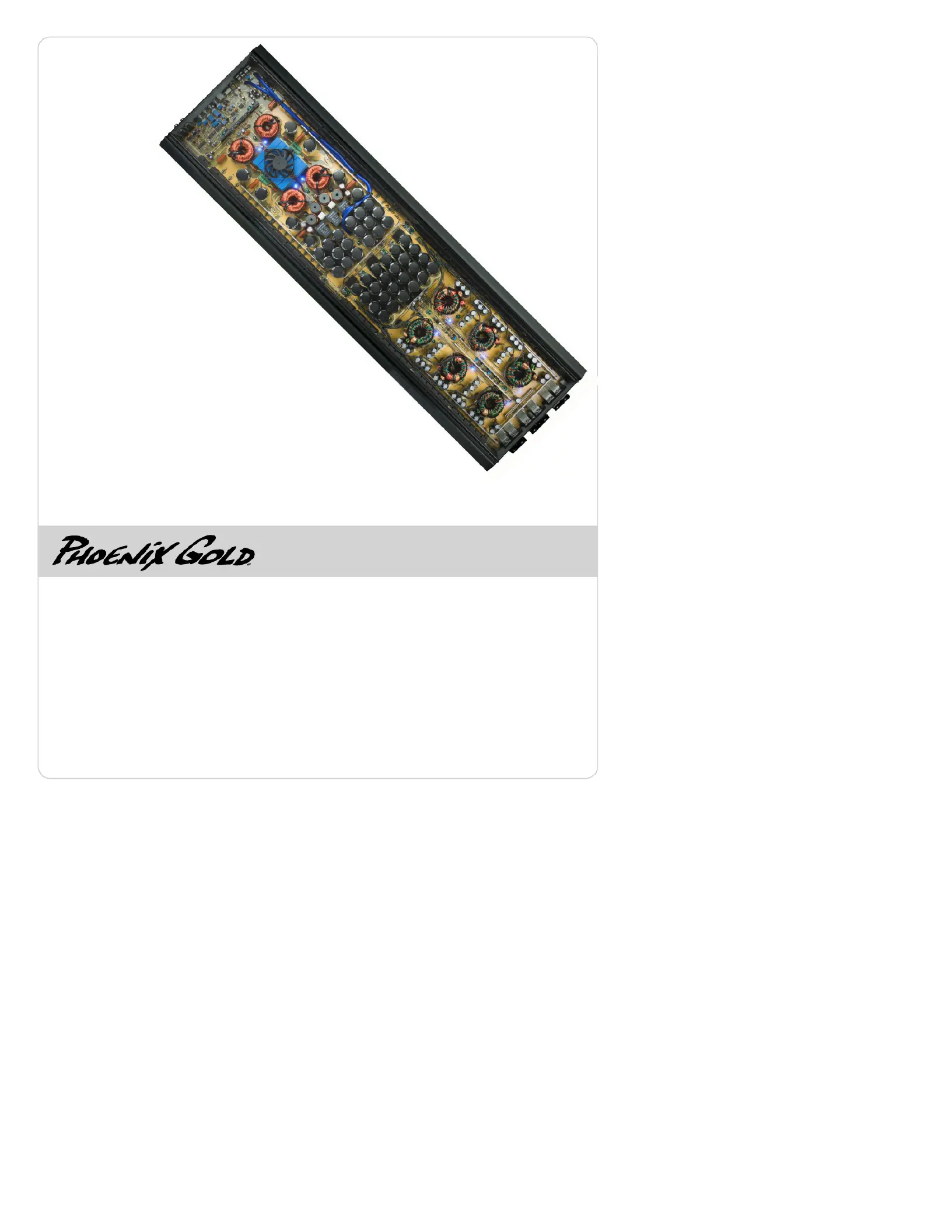

Amplifier Manual
Features:
© 2010 Phoenix Gold • www.phoenixgold.com
• Limited Edition Production Run featuring each unit number laser cut into the heatsink
• Six Massive Unregulated Power Supplies with Hand Wound Transformers
• Three Ounce Gold Plated Circuit Board
• High Eciency Class D Topology that operates at up to 16 volts
• Three 1/0 Gauge Direct Insert Power Terminals
• Temperature Controlled Fan Cooling System
• 24dB Variable Low Pass and Subsonic Crossovers
• Two units are “strappable” or linkable for insane power into a single subwoofer
• Hand Crafted Wood Shipping Crate
• LPL44 - Low Pass Level Control Ready
• RMD - Remote Monitoring Display Port
The One
Limited Edition Amplifier
Serial# ___________
QC Tested By: ____________________________
QC TEST DATE: ____________________________
Amplier Owner’s Manual
© 2010 Phoenix Gold • www.phoenixgold.com
Owner’s Name:
Serial Number:
Purchase Location:
Purchase Date:
Installer:
Owner Information
INTRODUCTION
The One is a truly unique amplier that follows in the legendary footsteps of Limited Edition ampliers from Phoenix
Gold. While the external function of this monoblock amplier is fairly simple its very important to respect the immense
amount of power it can produce. Be sure the proper subwoofers are selected as this amplier will easily damage low to
mid powered subwoofers. Phoenix Gold is not responsible for speaker failures or damage.
Phoenix Gold has taken special care to make sure each amplier is of the highest quality possible. After the electrical
components are pre-tested and inserted into the circuit boards then each amplier is carefully hand assembled one
by one. Once assembled the ampliers are rigorously tested. The rst testing stage is performed by a state of art Audio
Precision computerized program. Specically designed by the Phoenix Gold engineering team, this testing program
is powerful and complex. It immediately and accurately measures distortion levels, power output, crossover functions
and numerous other specications.
Once the amplier has passed the Audio Precision testing, its then ‘burned in’ for a minimum of two hours to verify all
part temperatures are within specication and all systems are working properly. After the unit passes burn in, it is then
retested with the Audio Precision again to verify it still meets the original testing criteria. Once it passes this test for a
second time it then undergoes a nal visible inspection and human listening test. Rest assured this amplier has been
fully tested before its laid to rest in its custom made wood crate.
As mentioned throughout this manual, the proper electrical system is REQUIRED not optional. The amplier can be
damaged and will not reach its full potential without the proper electrical system. Stinger accessories and power wiring
are heavily recommended due to their high quality. For example, Stinger power wire is 100% OFC copper and adheres
to a Tru-Spec wire gauge standard. Many low quality power wires may look like 1/0 gauge from the outer jacket, but the
internal copper is actually closer to 4 gauge to save costs. Also do not use CCAW or Copper Clad Aluminum Wire as it
does not conduct current as well as copper.
Congratulations on purchasing the most powerful and one of the rarest ampliers ever built by Phoenix Gold. Be sure
to keep all of the documentation, certicate of authenticity and shipping crate as this amplier is truly a collector’s
dream.
© 2010 Phoenix Gold • www.phoenixgold.com
Amplier Owner’s Manual
Electrical Breakdown
Temperature controlled
fan cooling system
Sealed high quality alumi-
num shaft potentiometers
Six massive unregulated
power supplies with hand
wound transformers
3 Ounce Gold Plated Circuit Board
50 200 volt/1000uF rail voltage
capacitors can power a small city
47 35 volt/1200uF capacitors
stien the power supply during
massive bass notes
13 grams per millimeter
of high density aluminum
heatsink
36 IRFP1405 power supply
transistors, just one of these is
capable of switching 70 amps
of current
32 FDA24N40F 400 volt
ultra fast output transistors 8 gauge Stinger HPM speaker
wire carries the high voltage/
high current signal directly to
the speaker outputs
5mm thick acrylic top is
heat and crack resistant
3mm thick high current
custom made buss bars Three high current 1/0 power
terminals are ready to pass up
to 900 amps continuously
State of the art Class D switch-
ing circuitry operates at an
amazing 90% eciency
Panel mount RCA connections
Each unit number is laser cut
into the heatsink so every
amplier is truly unique
