Seite 1/12

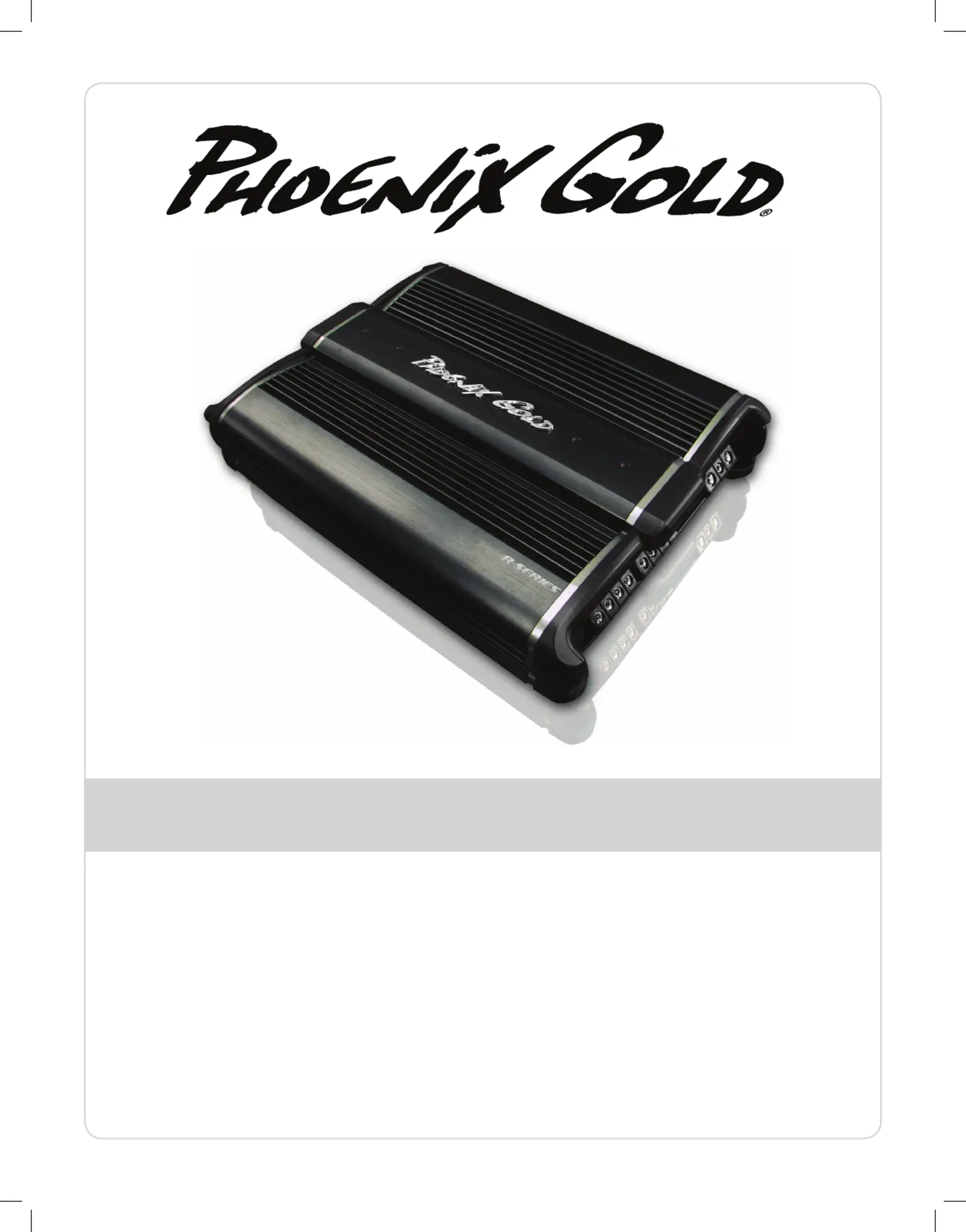

Amplifier Manual
Manuel de l’amplificateur
Features CaractĂŠristiques
Models: R1000.1, R500.1, R250.1
R500.4, R300.4
© 2010 Phoenix Gold • www.phoenixgold.com
• 12dBVariableLowPassandSubsonicCrossovers(R250.1,R500.1)
• 18dBVariableLowPassandSubsonicCrossovers(R1000.1)
• 12dBVariableHighandLowPassCrossovers(R300.4)
• 12dBVariableHighandLowPassCrossovers(R500.4)
• HighLevelInputwithSignalSensingTurn-onforEasyOEMintegration
• OversizedDirectInsertPowerand
 SpeakerTerminals
• RobustUnregulatedPowerSupply
• AudiophileBi-PolarOutputTransistors
• LPL44-LowPassLevelControlReady
• RMD-RemoteMonitoringDisplayPort
• AdvancedThermalandProtectionCircuitry
• 12dBPasseBasseVariableetSubsoniqueCroisé(R250.1,R500.1)
• 18dBPasseBasseVariableetSubsoniqueCroisé(R1000.1)
• 12dBHautetPasseBasseVariableCroisé(R300.4)
• 12dBHautetPasseBasseVariableCroisé(R500.4)
• LeNiveauSupérieurentrepourl’intégrationdeFABRICANT
D’ORIGINEfacile
• DirigerlePouvoird’InsertionetlesTerminauxdeHaut-parleur
• PouvoirnonRéguléeRobust
• AudiophileTransistorsdeBipolaire
• LPL44-LaPassebasseNivellePrêtdeContrôle
• RMD-EntréeDeL’afchagedeTensionaDistance
• AvancéThermiqueetlesCircuitsdeProtection
Amplier Owner’s Manual
© 2010 Phoenix Gold • www.phoenixgold.com
MONOBLOCK SPECIFICATIONS
Frequency Response: Âą 1dB from 20Hz to 300Hz
Signal to Noise Ratio: >110dB
Subsonic and Low Pass Crossovers: 12dB per octave
Low Pass Crossover Range: 30Hz to 300Hz
Subsonic Crossover Range: 10Hz to 55Hz
Bass Boost @ 45Hz: 0 to +18dB
Low Level Input Range: 200 millivolts to 8 volts
High Level Input Range: 400 millivolts to 12 volts
Lowest Recommend Load: 2 ohm
Typical Efciency: 50%
Damping Factor: Greater than 200
R1000.1 MONOBLOCK SPECIFICATIONS
Frequency Response: Âą 1dB from 20Hz to 300Hz
Signal to Noise Ratio: >90dB
Subsonic and Low Pass Crossovers: 18dB per octave
Low Pass Crossover Range: 30Hz to 300Hz
Subsonic Crossover Range: 10Hz to 55Hz
Bass Boost @ 45Hz: 0 to +18dB
Low Level Input Range: 200 millivolts to 8 volts
High Level Input Range: 400 millivolts to 12 volts
Lowest Recommend Load: 1 ohm
Typical Efciency: 80%
Damping Factor: Greater than 200
FOUR CHANNEL SPECIFICATIONS
Frequency Response: Âą 1dB from 20Hz to 20kHz
Signal to Noise Ratio: >110dB
High and Low Pass Crossovers: 12dB per Octave
Low Pass Crossover Range: 40Hz to 400Hz
High Pass Crossover Range: 40Hz to 400Hz
Bass Boost @ 45Hz: 0 to +18dB
Low Level Input Range: 200 millivolts to 8 volts
High Level Input Range: 400 millivolts to 12 volts
Lowest Recommend Load: 4 ohm Bridged or 2 ohm Stereo
Typical Efciency: 50%
Damping Factor Greater than 200
R250.1
Dynamic Power 14.4Vdc >1% THD 150 x 1 @ 4 ohm
250 x 1 @ 2 ohm
RMS Power 14.4Vdc ≤ 1% THD 85 x 1 @ 4 ohm
140 x 1 @ 2 ohm
Recommended Fuse Size: 25A
Power/Ground Wire Size: 8 Gauge
Dimensions: 9.5” L x 9.75” W x 2.5” H
242mm x 248mm x 63mm
R500.1
Dynamic Power 14.4Vdc >1% THD 300 x 1 @ 4 ohm
500 x 1 @ 2 ohm
RMS Power 14.4Vdc ≤ 1% THD 220 x 1 @ 4 ohm
325 x 1 @ 2 ohm
Fuse Size: 40A x 1
Power/Ground Wire Size: 8 Gauge
Dimensions: 11.1” L x 9.75” W x 2.5” H
282mm x 248mm x 63mm
R1000.1
Dynamic Power 14.4Vdc >1% THD 750 x 1 @ 2 ohm
1000 x 1 @ 1 ohm
RMS Power 14.4Vdc ≤ 1% THD 550 x 1 @ 2 ohm
800 x 1 @ 1 ohm
Fuse Size: 40A x 2
Power/Ground Wire Size: 4 Gauge
Dimensions: 12.7” L x 9.75” W x 2.5” H
322mm x 248mm x 63mm
R500.4
Dynamic Power 14.4Vdc >1% THD 75 x 4 @ 4 ohm Stereo
125 x 4 @ 2 ohm Stereo
250 x 2 @ 4 ohm Bridged
RMS Power 14.4Vdc ≤1% THD 60 x 4 @ 4 ohm Stereo
85 x 4 @ 2 ohm Stereo
170 x 2 @ 4 ohm Bridged
Fuse Size: 25 amp x 2
Power/Ground Wire Size: 8 Gauge
Dimensions: 15.0” L x 9.75” W x 2.5” H
382mm x 248mm x 63mm
R300.4
Dynamic Power 14.4Vdc >1% THD 50 x 4 @ 4 ohm Stereo
75 x 4 @ 2 ohm Stereo
150 x 2 @ 4 ohm Bridged
RMS Power 14.4Vdc ≤1% THD 40 x 4 @ 4 ohm Stereo
55 x 4 @ 2 ohm Stereo
110 x 2 @ 4 ohm Bridged
Fuse Size: 40 amp x 1
Power/Ground Wire Size: 8 Gauge
Dimensions: 12.7” L x 9.75” W x 2.5” H
322mm x 248mm x 63mm
Specifications
© 2010 Phoenix Gold • www.phoenixgold.com
Amplier Owner’s Manual
INPUT
Connectpreampsignalcablesfromtheheadunittotheseterminals.
OUTPUT
Providesafullrangesignalforanadditionalamplier.Thereisnosignal
lossifusingthisoutput.
CROSSOVER FREQUENCY
Controlsthelowpasscrossoverpointforthespeakeroutputs.
BASS BOOST
Variablebassboostfrom0to+18dB@45Hz.
LOW PASS LEVEL CONTROL (LPL)
Thisportisforconnectingtheoptionalremotelevelcontrol(LPL44).This
allowsupto20dBofvolumeadjustment.Thisisnotabassboost,it
controlsthelevelofthelowpasssignal.
REMOTE MONITORING DISPLAY (RMD)
ConnectoptionalRMDVoltageDisplaytothisport
LEVEL
Usedtoreachmaximumamplierpowerwithawidevarietyofheadunits.
HI INPUT
Connectafactorysystem’sheadunitoramplieroutputs.UsingtheHIlevelinputthe
amplierwillautomaticallyturnonandoffusingthefactorysystem’saudiosignalasa
trigger.Thehighlevelautoonswitchturnsofftheautoturnonfunction,butthehigh
levelinputstillworksasnormal.
SUBSONIC CROSSOVER FREQUENCY
Controlsthehighpasscrossoverpointforthespeakeroutputstoeliminateextreme
lowfrequencies.
12V+
Thismustbeconnectedtothefusedpositiveterminal(+12V)ofthecar’s
battery.Thefusemustbelocatedwithin18inchesofthebattery.
REMOTE
Thismustbeconnectedtoswitched+12V,usuallyatriggerwirecoming
fromtheheadunitorignition.ThisisnotusedifusingHiinputautoon
feature.
GND
Thismustbeconnectedtothenegativeterminalofthecar’sbatteryor
boltedtoaclean,unpaintedpartofthechassisofthevehicle.
SPEAKER OUTPUTS
Usedtoconnecttheampliertospeakers.R250.1andR500.1minimum
impedanceis2ohm,R1000.1is1ohm.
R1000.1 - R500.1 - R250.1
Monoblock Power Amplifier
