MOTORDRIVER BOARD-
SBC MotoDriver2-

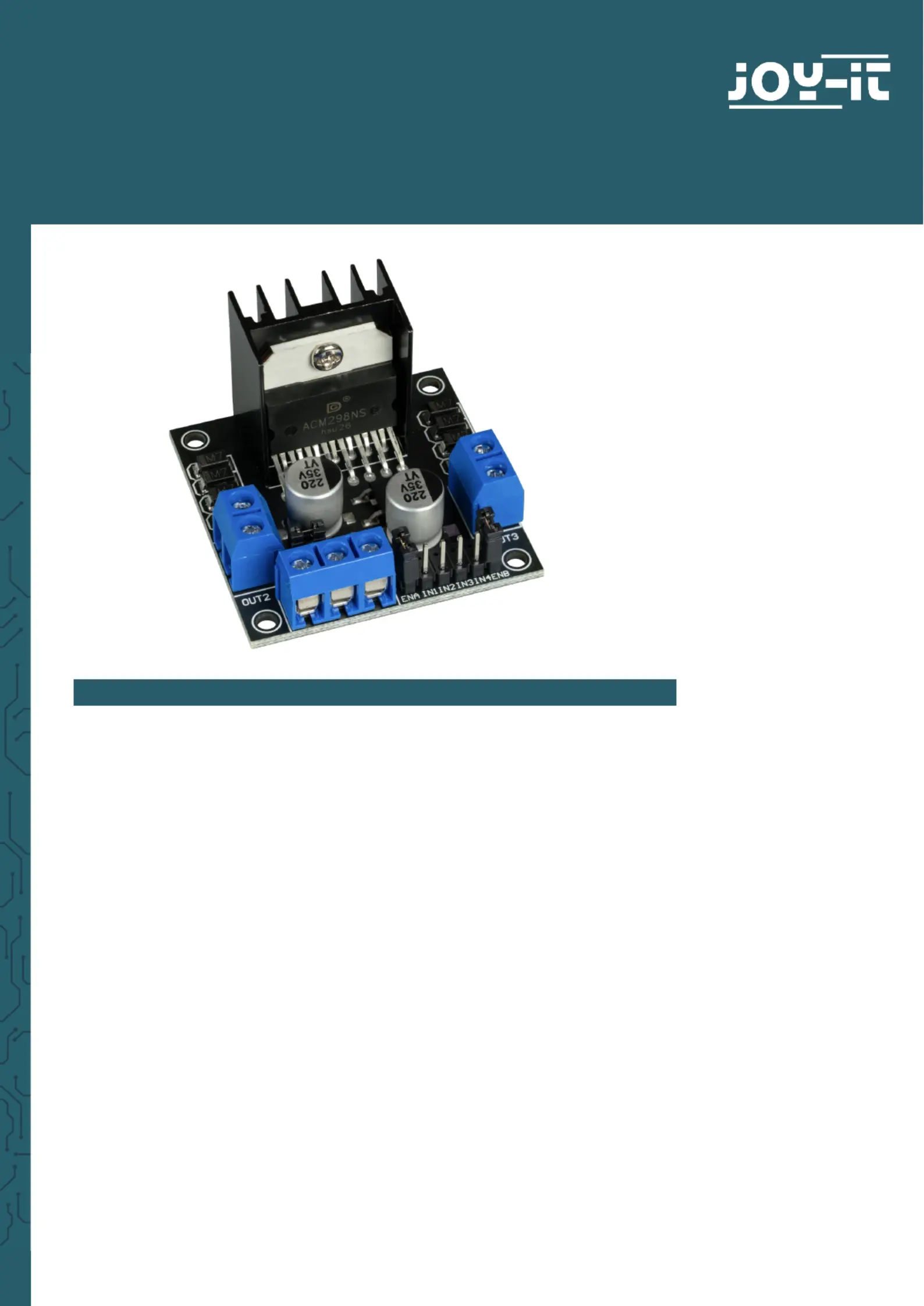

MOTODRIVER BOARD-
SBC MotoDriver2-
1. GENERAL INFORMATION
Dear customer,
thank you very much for choosing our product.
In the following, we will introduce you to what to observe while starting
up and using this product.
Should you encounter any unexpected problems during use, please do
not hesitate to contact us.
2. DEVICE OVERVIEW
The MotoDriver2 is an expansion board that enables the control and use
of up to two DC motors. The DC motors can be controlled with a constant
voltage between 5 V and 35 V.
Note:
Up to an input voltage of 12 V, the board can provide a voltage of 5 V for
your microcontroller via the 5V output using the integrated voltage
converter. If you want to connect a voltage above 12 V, it is essential to
remove the jumper at slot 3 to avoid damaging the voltage converter.

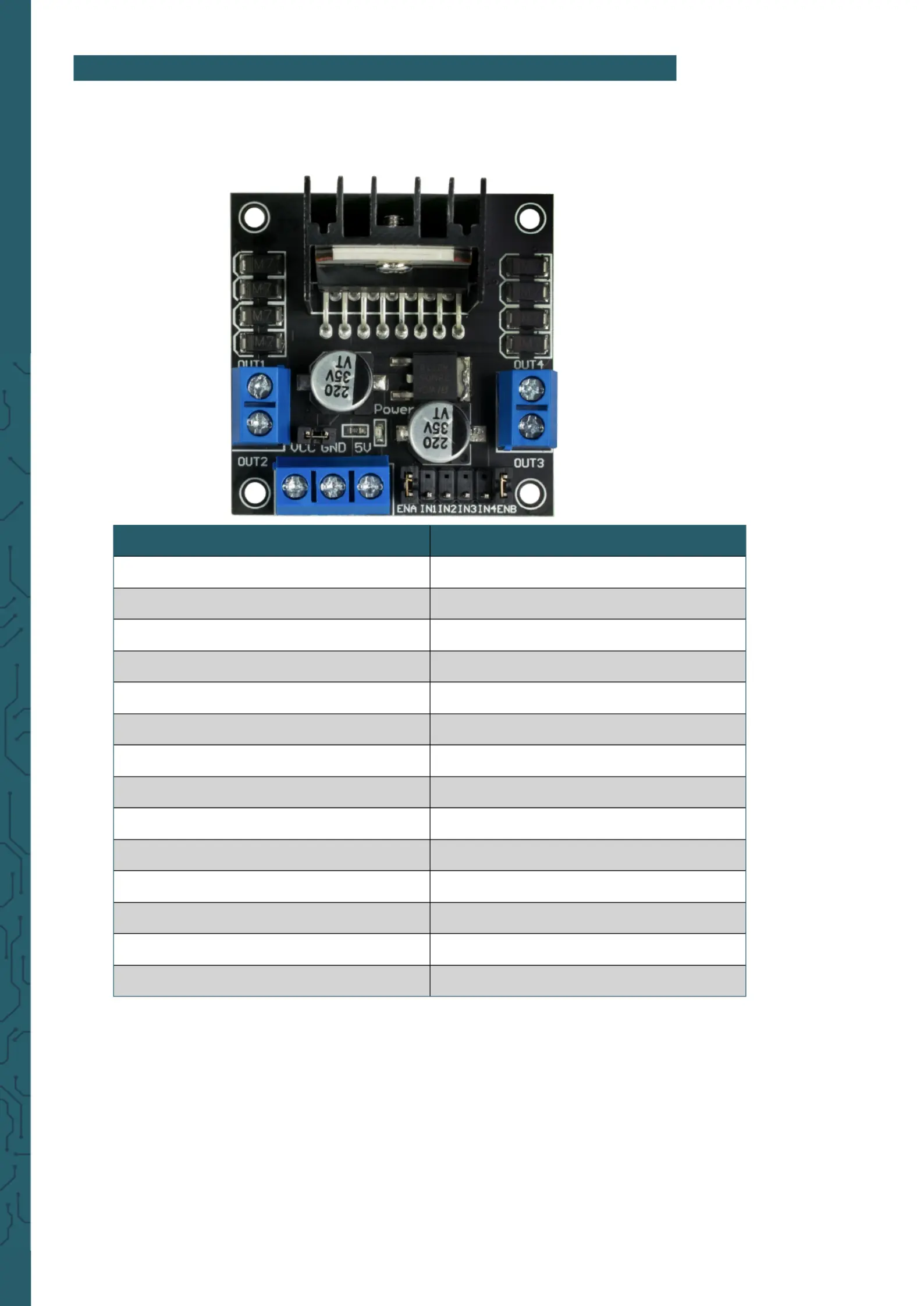

PIN Assignment
1 DC Motor 1 / Stepper Motor +
2 DC Motor 1 / Stepper Motor GND
3 12V Jumper
4 Power Supply +
5 Power Supply GND
6 5V Output (If Jumper 3 is set)
7 DC Motor 1 Jumper
8 Input 1
9 Input 2
10 Input 3
11 Input 4
12 DC Motor 2 Jumper
13 DC Motor 2 / Stepper Motor +
14 DC Motor 2 / Stepper Motor GND
1
2 3
4 5 6 7 8 9 10 11 12
13
14
