16-BIT DIGITAL I2C AMMETER
SBC-DVA
Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net
Dear customer
Thank you for choosing our product. In the following, we will show
you what you need to bear in mind during commissioning and use.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
. GENERAL INFORMATION
This digital ampere meter can be configured to 4 possible I2C addresses.
These can be freely selected, but the standard address is used in the 0x40
further course.

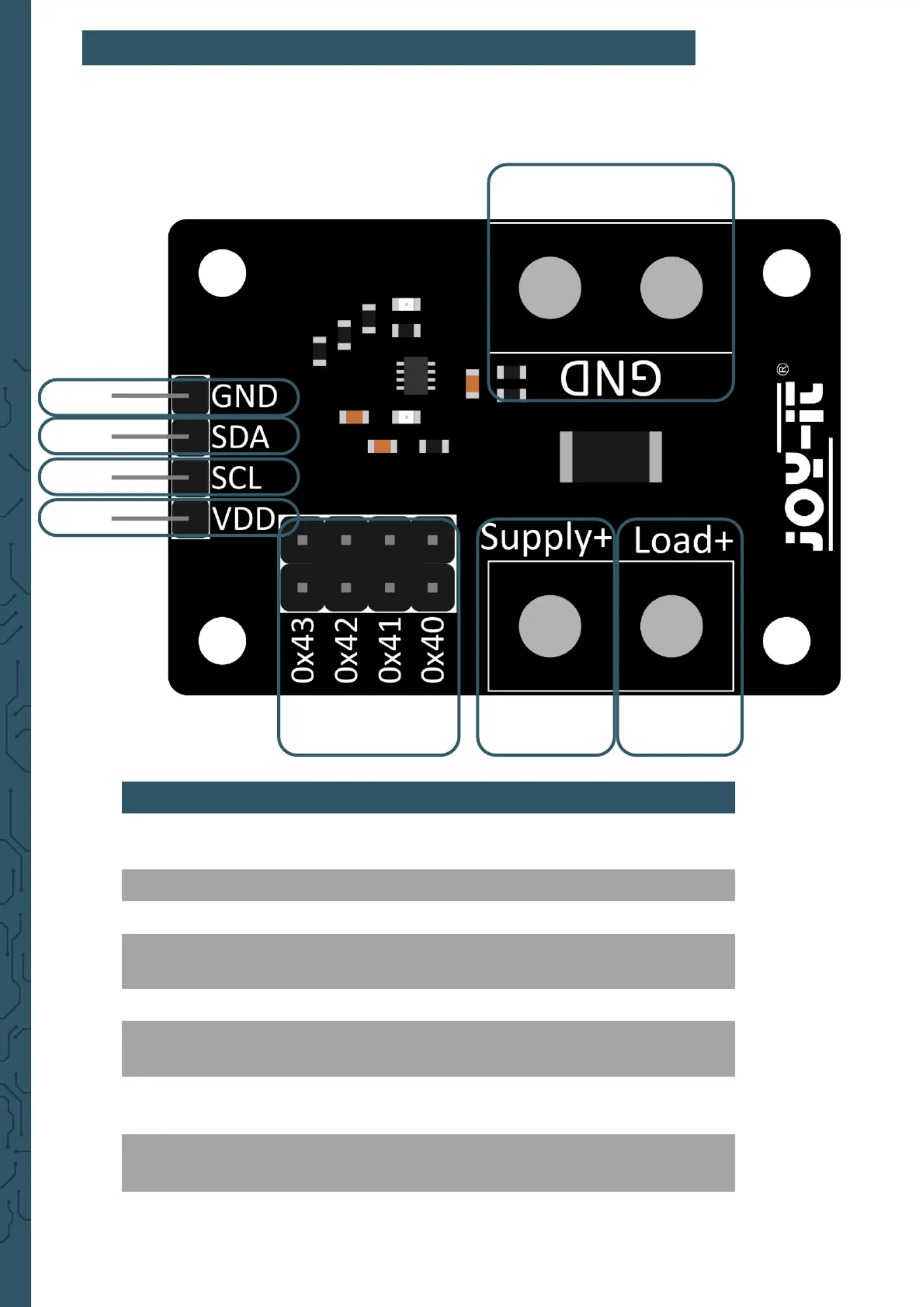

In the following illustration you can see which pins
can be set with a jumper to change the I2C address.
You can choose between 4 dierent positions.
0x43
0x42
0x41
0x40
It should be noted that the I2C address should never be changed during
operation, as this can lead to unforeseeable problems.
. CHANGING THE IC ADDRESS
. DEVICE OVERVIEW
1
2
3
4
6 7
8
5

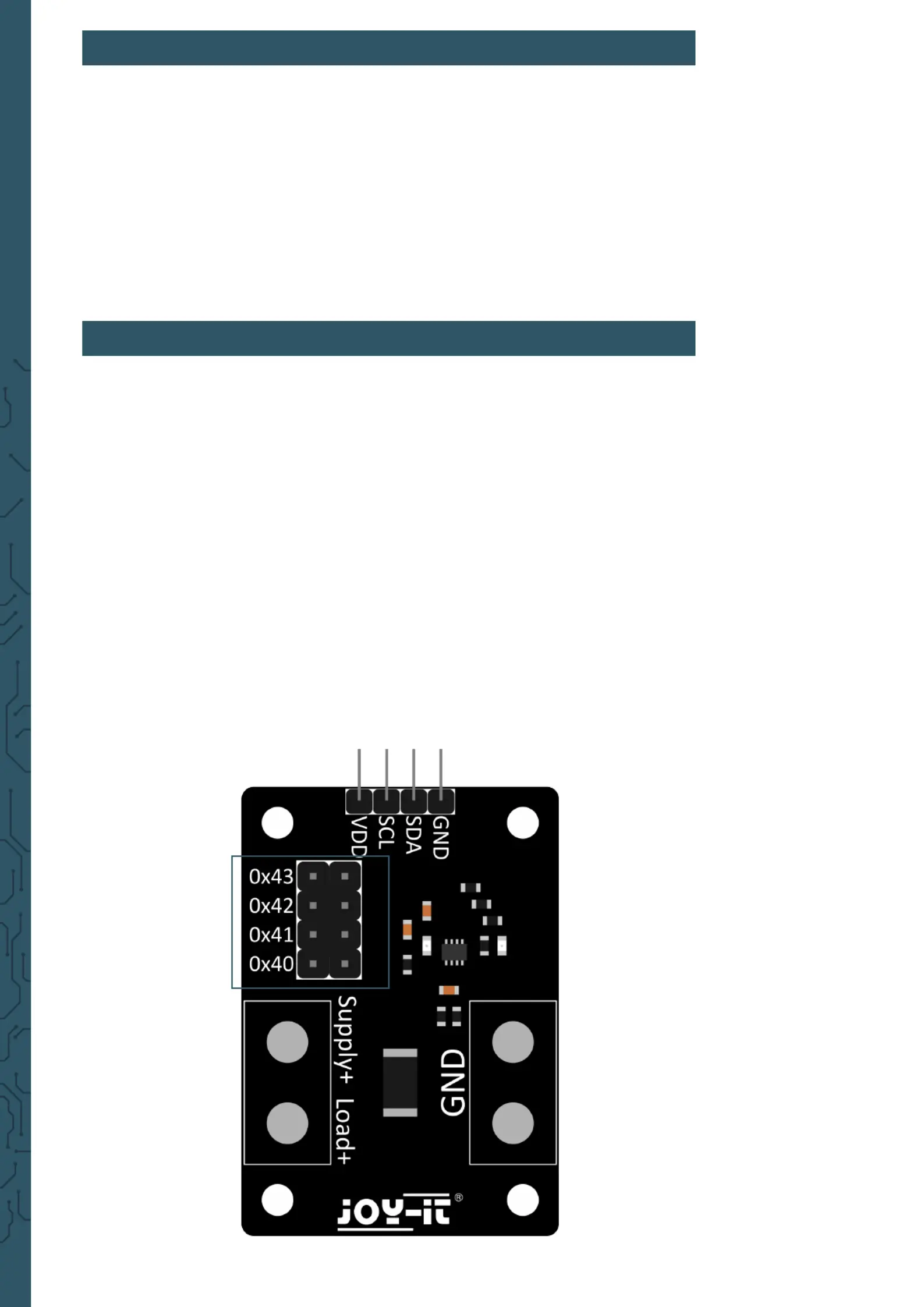

Digit Function
1 Negative connection Supply voltage for the IC
on the board
2 I2C data line
3 I2C clock line
4 Positive connection Supply voltage for the IC on
the board
5 Jumper for selecting the I2C address
6 Positive connection of the voltage and power
supply to be measured
7 Positive connection of the connected load/con-
sumer
8 Ground Connection of the voltage and power
supply as well as the load/consumer
