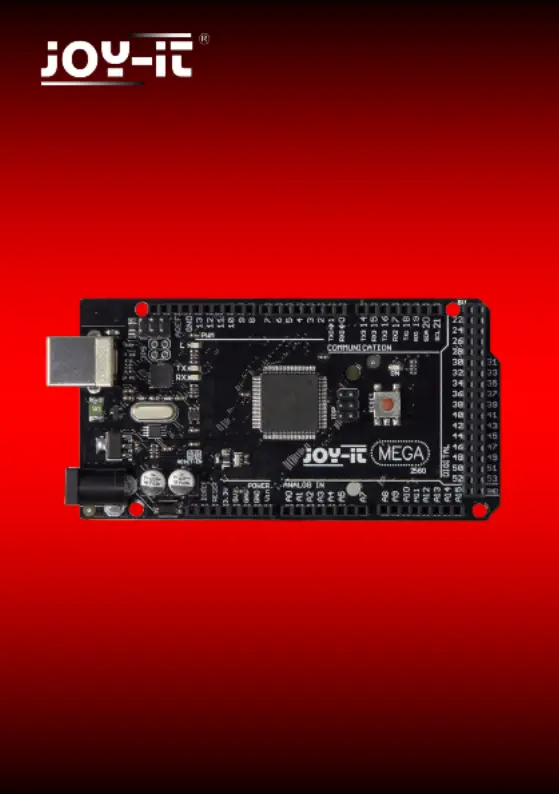

ARD_MEGA2560R3
Arduino Mega 2560 compatible microcontroller, not an original Arduino
1. GENERAL INFORMATION & SAFETY INSTRUCTIONS
Dear customer,
thank you for choosing a Joy-IT product. Our board is a high quality replica
and compatible to the Arduino Mega 2560 but it is not an original Arduino.
The „Mega Board“ is the right microcontroller board for those who want to
get quickly and easily into the world of programming.
On the internet, you will nd a variety of tutorials and manuals for this
microcontroller board that will give you an easy introduction to the world of
programming.
The ATMega2560 microcontroller oî ‚ers you enough performance for your
ideas and projects. It is 101.52 x 53.3 mm in size and has more connections
than others with 54 digital in- / outputs and 16 analog inputs.
2. TECHNICAL SPECIFICATIONS
3. PINOUT
Model
EAN
Microcontroller
Input voltage
Input voltage (max.)
Digital IO
Analog IO
DC current IO
DC current 3.3 V
Storage
SRAM
EEPROM
Clock Speed
Dimensions
ARD_Mega2560R3
4250236812366
ATmega2560
7 - 12 V
6 - 20 V
54 of which 14 PWM
16
20 mA
50 mA
256 KB
(8 KB for Bootloader)
8 KB
4 KB
16 MHz
101,52 x 53,3 mm
16 MHz Quartz
USB-B Port
ICSP for USB
PIN 13 LED
AREF
GND
PWM
interfaces
TXO
RXO
Communication-
interfaces
Digital I/O Pins
GND
Analog inputs
Power supply
RESET
IOREF
Voltage input
Voltage regulator
ATmega16U2
If you start programming the Joy-IT ARD_Mega2560R3, you have to install a
development environment and the drivers for the associated operating sys-
tem on your computer which is going to be used for programming.
The recommended development environment is the “Arduino IDE“ which is
released by the Arduino manufacturer as an open source soî …ware. This
soî …ware is aimed at beginners, due to concept and structure. It is
compatible to the Joy-IT ARD_Mega2560R3 and has next to the development
environment also the required drivers which make it possible to start
immediately.
The download for this soî …ware can be found with the following link:
https://www.arduino.cc/en/Main/Soî …ware
5. SOFTWARE SETUP
Aî …er installing the soî …ware, the appropriate microcontroller board must be
set up in the programming environment. To do this follow the next two steps.
1. Select [Tools → Board] choose “Arduino / Genuino Mega or
Mega 2560“
4. SOFTWARE-INSTALLATION
2. Select [Tools → Port] choose the port marked with
„(Arduino / Genuino Mega or Mega 2560)
