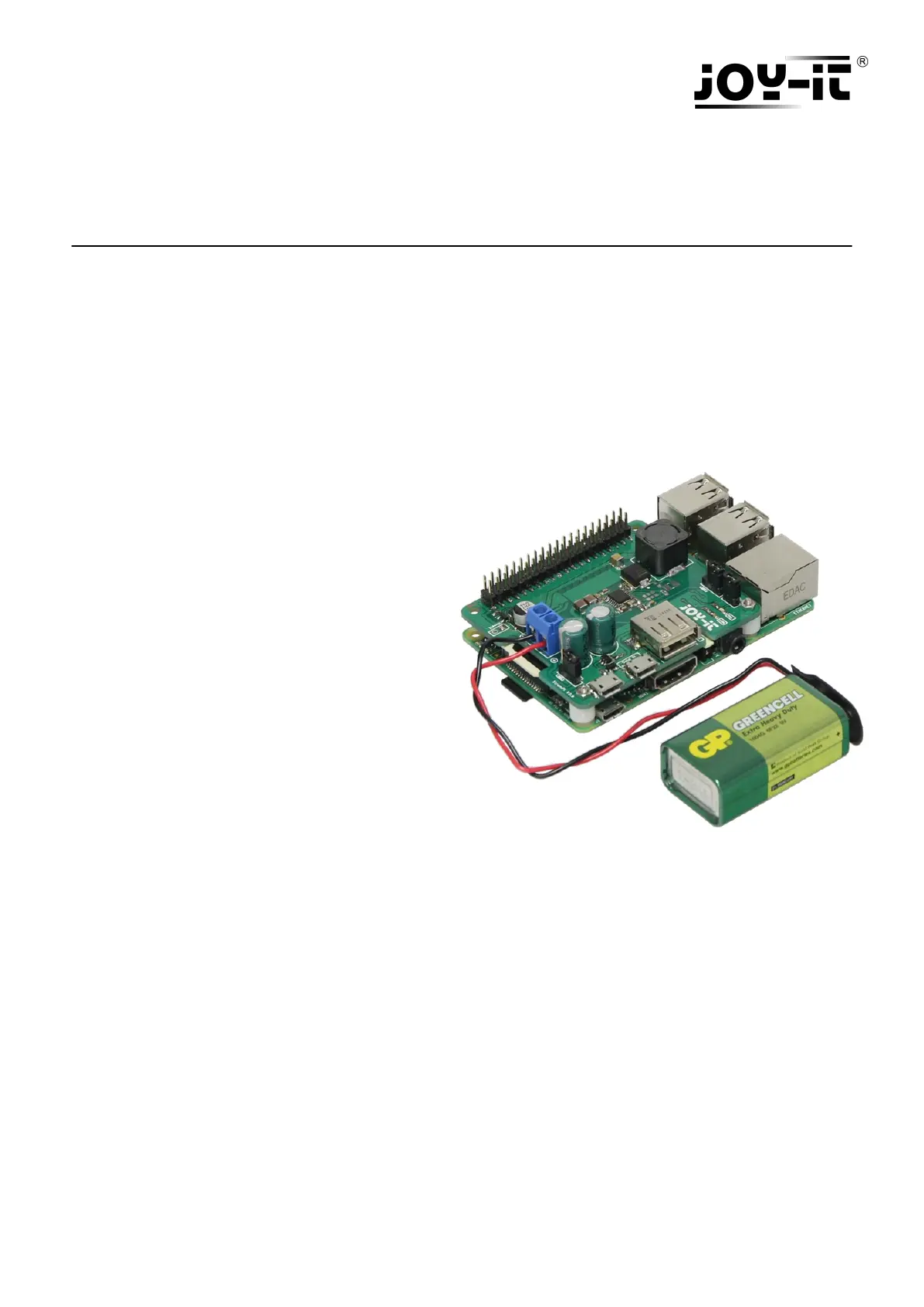

STROM PI 2
Power Solution
1. GENERAL INFORMATION
Dear customer,
thank you for choosing our product. In the following, we will show what
you should note at the commissioning and during the usage.
Should you encounter any unexpected problems during use, please do not
hesitate to contact us.
The StromPi 2 expansionboard is the new development of the Joy-IT power
solution. Not only, the voltage range is increased from 6 to 61 V to connect
for example bigger / more batteries or power supplies.
Therefore, the StromPi 2 board provides now up to 3 A current to supply
greater projects with enough power. Moerover, the reset-function for the
Raspberry Pi is now integrated which extends the USV-function of the
StromPi practically.
Through the new super-at construction and connection, the StromPi 2 ts
in many cases and new application areas. The StromPi 2 allows to connect
your Raspberry Pi with an arbitary voltage source with a voltage range from
6 to 61 V so that you have new possibilities to applicate the Raspberry Pi (car,
ship, truck, industrial plant etc.). Furthermore, the Raspberry Pi
receives optionally an upgrade of the USB outputs to a high power USB
output to operate power-intensive devices for examples USB-hard disks
without any restrictions.
The integrated USV-function enables the safeguarding of critical
applications against power failures. Via soî …ware for the Raspberry Pi, it is
possible to monitor the USV-function and to mail diî ‚erent reports via e-mail
in case of a failure. Due to the used eî ‚icient solution for switching
regulators, it allows the Raspberry Pi to operate as a portable device via a
battery.
useful expansion of the USV-mode: Aî …er the Raspberry is shut down at a
power failure by the StromPi, the new reset- function restarts the Raspberry
Pi automatically if the main voltage source is available again.
intended use: The expansion board to connect a compatible single board
computer (e.g. Raspberry Pi)with a voltage source from 6 to 61 V so it can
operate with this power.
warning: At a heavy load, the StromPi can heat up. Do not touch the
board during use to prevent burn injuries - enable a solid air
supply to enclude the overheating of the device.
!
3. OPERATING MODES
2. PIN ASSIGNMENT
high-power
USB output
Data input (for high-
power USB output)
and current output
microUSB (5 V)
voltage input
(primary)
2. mode
switch
wide-range (6 - 61 V)
voltage input
(secondary)
reset - switch
GPIO - port
1. mode switch
(USV | Wide) T - PIN
The StromPi 2 has 2 operating modes UPS and Wide operation which are
explained in the following.
UPS-mode
The UPS-mode operates especially battery-saving. The wide range voltage
source is only charged in standby with . This standby power 20 - 80 µA
consumption is is very low so that the maintenance cycles of possible
bypass batteries / batteries can be accordingly long.
For one year of a standby operation, this circuit takes for example from
175 mAh to 700 mAh out of the wide range voltage source.
