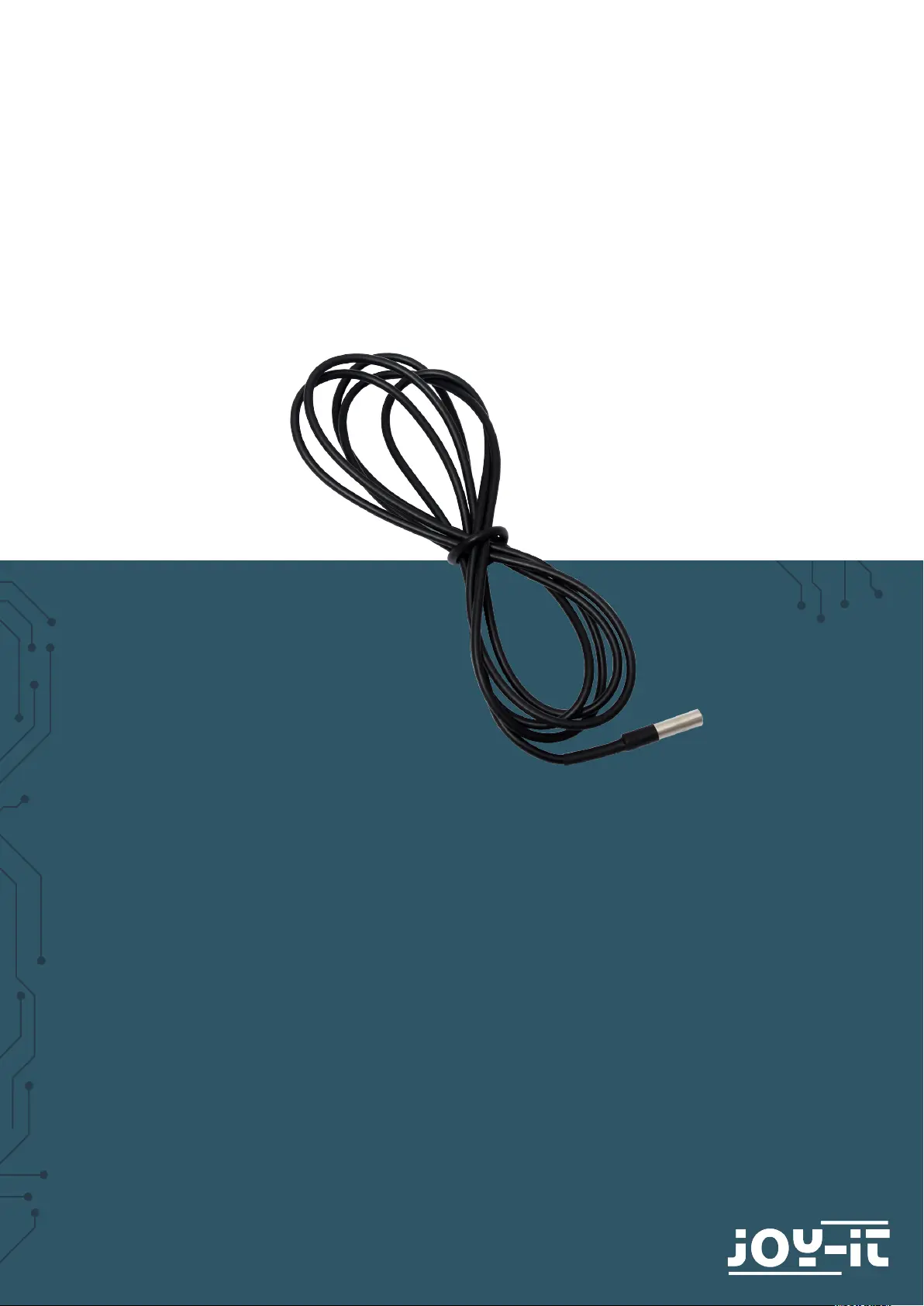

LINKERKIT TEMPERATURE SENSOR
Water protected One-Wire temperature sensor
Joy-IT powered by SIMAC Electronics GmbH - Pascalstr. 8 - 47506 Neukirchen-Vluyn - www.joy-it.net
1. General information
2. Pin Assignment
3. Usage with the Raspberry Pi
4. Usage with the Arduino
5. Information & take-back obligations
6. Support
TABLE OF CONTENTS
Dear Customer,
Thank you for choosing our product. In the following, we will show you what
to consider during commissioning and use.
Should you encounter any unexpected problems during use, please feel free
to contact us.
The LK-Temp2 temperature sensor is connected directly to digital port no.
4 of the LinkerKit module, as shown in the illustration. Alternatively, the
sensor can also be connected directly to your Raspberry Pi or Arduino. The
pin assignment can be seen in the following gure:
1. GENERAL INFORMATION
2. ANSCHLUSSBELEGUNG
DATA
Raspberry Pi: GPIO BCM4 - Arduino: Pin D4
VCC
Raspberry Pi: 3 V - Arduino: 5 V
GND
