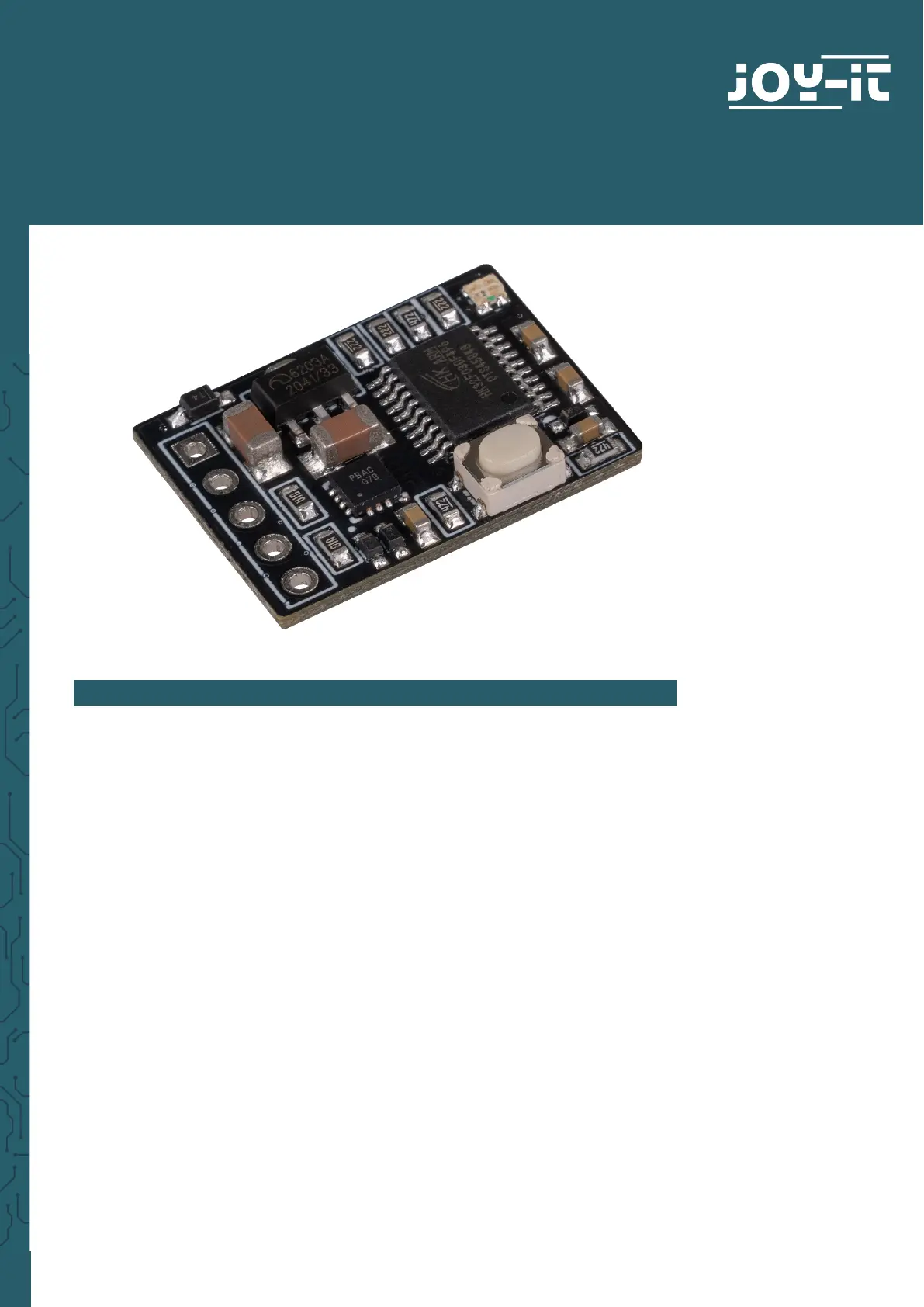

USB PD TRIGGER MODULE-
COM ZY12PDG-
1. GENERAL INFORMATION
Dear customer,
Thank you for purchasing our product. In the following, we will show you
which things should be noted during the use.
Should you encounter any unexpected problems, do not hesitate to
contact us.
When using the module, make sure to use a suî ‚icient cable
cross section.-
To use the module as intended, you need a USB capable power -PD-
supply unit.
2. INTERFACE
The trigger pin on the board has the same function as the button. By set-
ting the pin LOW, pressing the button is simulated.
Ground
VBUS
Trigger pin
CC2
CC1
USB Type C-
Ground
VBUS
3. OPERATION
Connect your USB PD trigger module to a USB PD compatible power - -
supply using the interface explained above. The free solder pads on the
back of the board are used to connect the load. These modules provide
you with diî ‚erent voltage modes, which are indicated by the LED.
Colour Voltage mode
â–  5 V
â–  9 V
â–  12 V
â–  15 V
â–  20 V
â–  Maximum possible voltage of
the power supply
â–  Runs through all modes
(one per second)
To set the modes as default, first plug the board into your power supply
while holding down the button on the board. Now the LED will start
flashing colourfully. Now you can select the desired mode using the
button. Now press and hold the button to confirm your selection. Finally,
disconnect the power supply from the module and then reconnect it so
that the module now starts directly in this mode.
